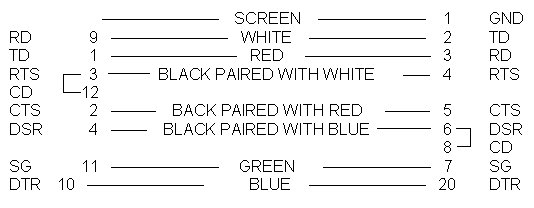

System				VDU
	HPSIO				Terminal
	15 Pin				25 Pin
	D Type Male				D Type Male
					NDR Female

• The cable screen must be connected to Pin 1 at the peripheral end only.
• Maximum length is 100ft for HPSIO to Terminal.
• Standard length is 10ft for System Console.

Set-up for System Console

• The VDU should be set for 9600 Baud, 7 Bits, 1 Stop Bit, Even Parity, No Protocol and ADDS Enhanced Viewpoint.
