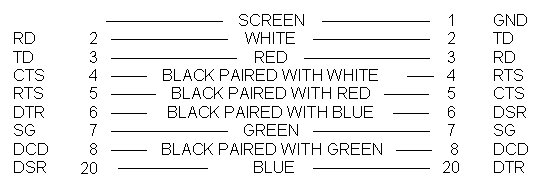

Cable Type H

MULTIPLEXOR or MODEM to VDU or SERIAL PRINTER

6000 / 7000 / 8000 RTC to VDU or SERIAL PRINTER

NCR 3000 RTC to VDU

RTC to PC (25 Pin)

MUX / Modem
Peripheral
RTC
Peripheral
RTC
PC
25 Pin
25 Pin
D Type Male
D Type Male
NDR Female
PC Female

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length is 100ft.
