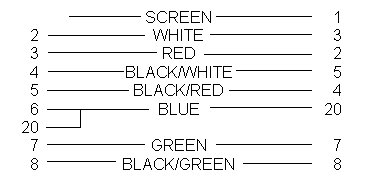

Cable Type AL

RTC to MODEM / MULTIPLEXOR

Converse / Auto-Dial Operations under O.S.2.6

RTC
Modem / Multiplexor
25 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length is 100ft.
