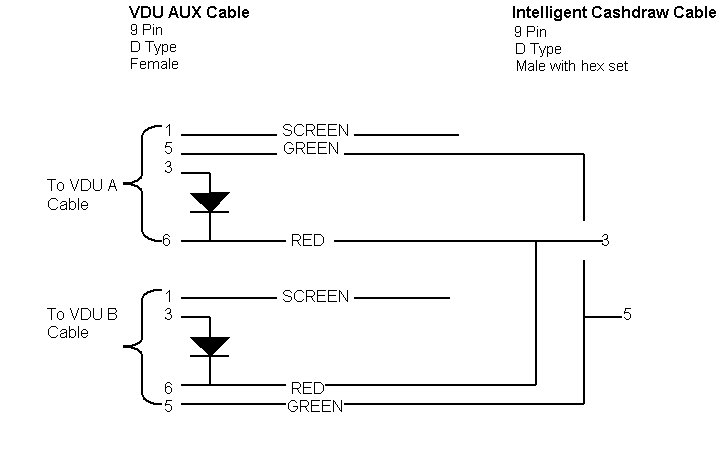

Cable Type AX

ICJD

INTELLIGENT CASHDRAWER JUNCTION DEVICE

Note:

  1. Refer to FECO CASH #6.

  2. Diodes are all IN4001

  3. This specification is to connect two VDU's to one cashdrawer. For more than two VDU's see cable type AY.

  4. The screen must be connected to pin 1 at the VDU AUX cable end only.
