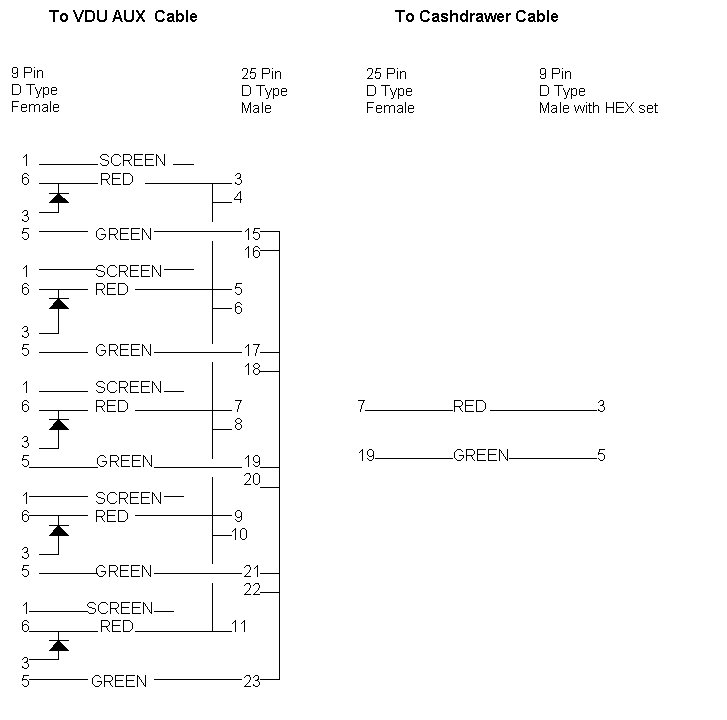

Cable Type AY

MULTI ICJD

MULTIPLE INTELLIGENT CASHDRAWER JUNCTION DEVICE

Note:

1. Refer to FECO CASH #6.
2. All diodes are IN4001
3. This specification is to connect between three and a maximum of five VDU's to one cashdrawer.
4. The number of VDU connections; 3,4 or 5 must be stated, and also the required length of each connection.
5. The maximum length of the right hand (to cashdrawer) cable should be 1 metre.
