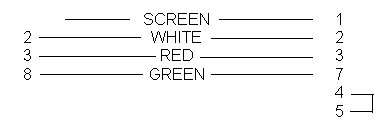

Cable Type BA

MENTOR MODEL ONE SERIES

DISTRIBUTION BOX to VDU or SERIAL PRINTER

Distribution Box
VDU / Serial Printer
9 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 on the printer or VDU end only.

  2. Maximum length from the Distribution Box to VDU or printer is 100ft.
