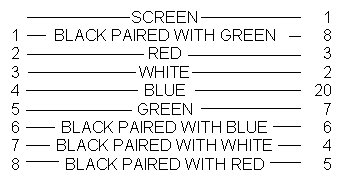

Cable
Type BC
MENTOR
MODEL ONE SERIES
COM2
to MODEM or MULTIPLEXOR
|
COM2
|
|
|
|
Modem/Multiplexor
|
|
|
9
Pin
|
|
|
|
25
Pin
|
|
|
D
Type Female
|
|
|
|
D
Type Male
|
|
Note:
- The cable screen
must be connected to Pin 1 at the modem end only; provided that pin 1 on the
modem is connected to GROUND. If the modem does not support GROUND on pin
1, then the cable screen must be disconnected from pin 1 and connected to
the cover screw.
- Maximum length
is 100ft.
