Cable Type BM

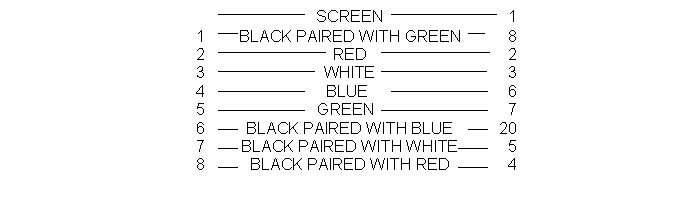

AXIS 560 NETWORK PRINT SERVER to SERIAL PRINTER (8 WIRE)

AXIS 560
Printer
9 Pin
25 Pin
D Type Female
D Type Male

Note:
  1. Screen to be connected to Pin1 at the printer or VDU end only.

  2. Maximum length 100ft.
