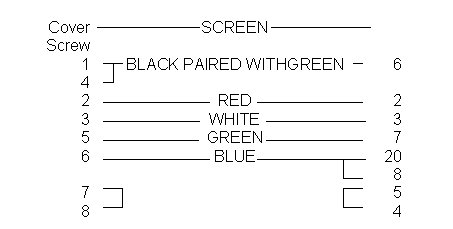

Cable Type BO1

NCR 3000 / MOTOROLA COM2 to LDT/PDT HHDCU & PDT6800 CRADLE

COM2
HHDCU CRADLE
9 Pin
25 Pin
D Type Female
D Type Male

Note:
  1. Screen to be connected the cover screw at the PC end only.

  2. Maximum length 100ft.

  3. For Motorola use, the cover on the 9 pin connector MUST be of a low profile type, otherwise it will not make proper contact.
