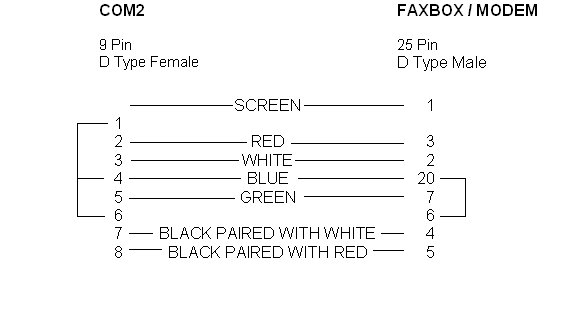

Cable Type BV

COM 2 to FAXBOX (Worldport or Mistral only) / Modem

For use with R.O.E , UniFax , UniComms Mentor

Note:
  1. The cable screeen must be connected to pin 1 at the Faxbox/Modem end only; PROVIDED that pin 1 on the Faxbox/Modem is connected to GROUND. If the Faxbox/Modem does not support GROUND on pin 1, then the cable screen must be disconnected from pin 1 and connected to the cover screw.

  2. Maximum length 100ft.
