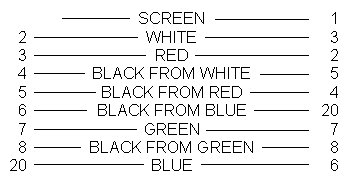

Cable Type DE

RTC to MODEM / MULTIPLEXOR / LINEDRIVER

SPECIALIX MTS / MTA, SPECIALIX RIO

DISTRIBUTION BOX (25 pin) to VDU or SERIAL PRINTER

RTC
Modem
Dist Box
VDU/Printer
25 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length 100 ft.
