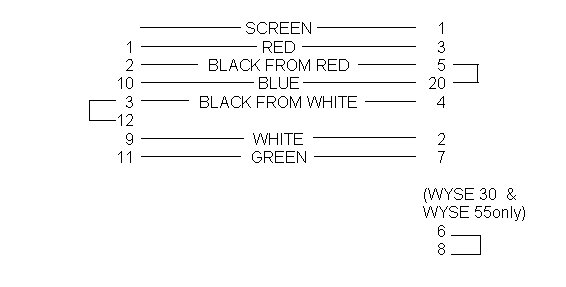

Cable Type DR

6000 PORT 'B' to WYSE 30 or WYSE 50 or WYSE 55

Port 'B'
Screen
15 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length is 25ft.
