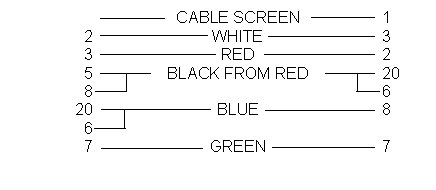

Cable Type ED

MCIA to SERIAL PRINTER

MCIA Distribution Block
Serial Printer
25 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length is 100ft.
