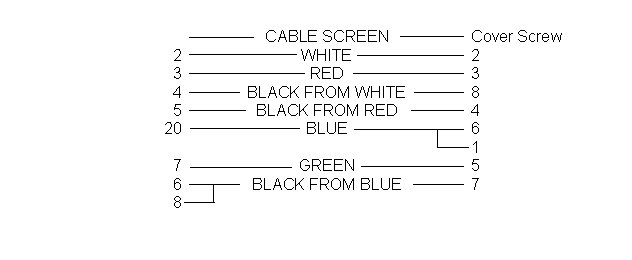

Cable Type EE1

MCIA TO PERSONAL COMPUTER

MCIA Distribution Block
PC
25 Pin
9 Pin
D Type Male
D Type Female

Note:
  1. The cable screen must be connected to the cover screw at the peripheral end only.

  2. Maximum length is 100ft.
