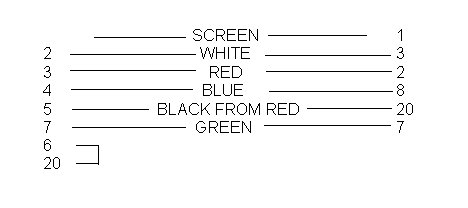

Cable Type EW

RTC to MODEM / FAXBOX

FOR USE WITH REMOTE ORDER ENTRY, UNIFAX and UNICOMMS

RTC
Modem / Faxbox
25 Pin
25 Pin
D type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the modem end only.

  2. Maximum length is 100ft.

  3. Ensure Pin 1 at the modem end is connected to safety Earth.
