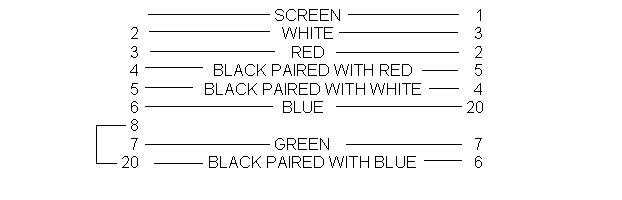

Cable Type FB1

DIGIBOARD to NDR SERIAL PRINTER

Digiboard
Printer
25 Pin
25 Pin
D Type Female
D Type Female

Note:
  1. The cable screen must be connected to Pin 1 at the peripheral end only.

  2. Maximum length is 100ft.
