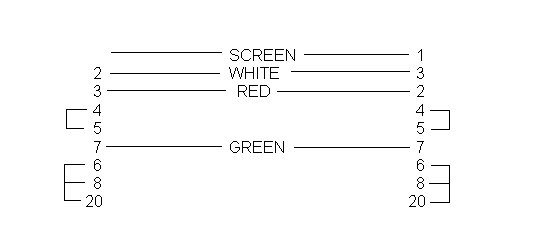

Cable Type FG

DIGIBOARD TO VDU / PRINTER

Digiboard
VDU / Printer
25 Pin
25 Pin
D Type Female
D Type Male / Female
(device dependant)

Note:
  1. The cable screen must be connected to pin 1 at the peripheral end only.

  2. Maximum length is 100ft.
