Cable
Type FN
SPECIALIX

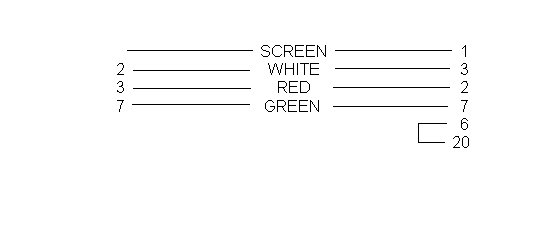

1/08+ CONVERSION CABLE to DIAGNOSTIC MODEM
|
Specialix
I/08+
|
|
|
|
Modem
|
|
|
Conversion
Cable
|
|
|
|
|
|
|
25
Pin
|
|
|
|
25
Pin
|
|
|
D
Type Male
|
|
|
|
D
Type Male
|
|
Note:
- The cable screen
must be connected to Pin 1 at the modem end only; provided that pin 1 on the
modem is connected to GROUND. If the modem does not support GROUND on pin
1 , then the cable screen MUST be disconnected from pin 1 and connected to
the cover screw.
- The modem must
support X-ON / X-OFF flow control. Hardware flow control can not be
used.
- Maximum length
is 100ft.
