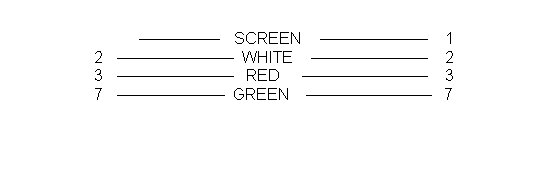

Cable Type FY1

NCR 3000 RIO to VDU ( 3 WIRE)

RIO
VDU
25 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to Pin 1 at the VDU end only.

  2. The VDU must support X-ON / X-OFF flow control. Hardware flow control can not be used.

  3. Maximum length is 100ft.
