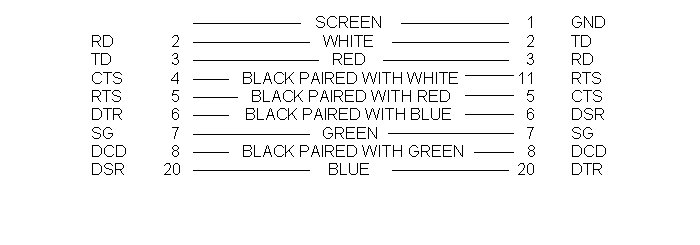

Cable Type HU

MULTIPLEXOR or MODEM to TALLY T6045 SERIAL PRINTER

6000 / 7000 / 8000 RTC to TALLY T6045 SERIAL PRINTER (8 WIRE)

MUX / MODEM
TALLY T6045
RTC
25 Pin
25 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to pin 1 at the peripheral end only.

  2. Non T6045 equivalent cable type H.

  3. Maximum length is 100 ft.
