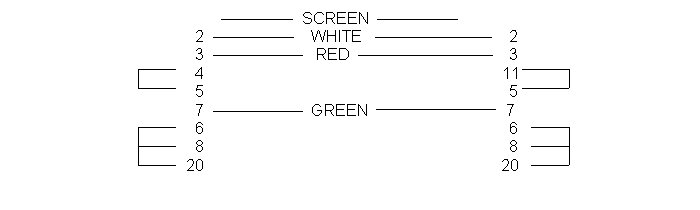

Cable Type HW1

DIGIBOARD to TALLY T6045 SERIAL PRINTER (3 WIRE)

DIGIBOARD
T6045 Printer
25 Pin
25 Pin
D Type Female
D Type Male

Note:
  1. The cable screen must be connected to pin 1 at the printer end only.

  2. The printer must use X-ON / X-OFF flow control.

  3. Non T6045 equivalent cable type FG.

  4. Maximum length is 100 ft.
