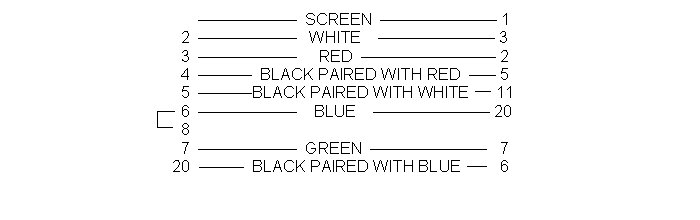

Cable Type HY

DIGIBOARD to TALLY T6045 SERIAL PRINTER (7 WIRE)

DIGIBOARD
TALLY T6045
25 Pin
25 Pin
D Type Female
D Type Male

Note:
  1. The cable screen must be connected to pin 1 at the printer end only.

  2. Non T6045 equivalent cable type FA.

  3. Maximum length is 100 ft.
