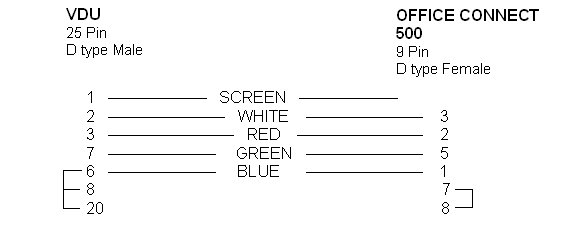

Cable Type JB2

VDU to OFFICE CONNECT 500 BRIDGE ROUTER

(Manager port)

Note:
  1. The cable screen must be connected to pin 1 at the VDU end only.

  2. VDU must be set to 9600 NP , X-ON, X-OFF, VT100

  3. Maximum length is 100ft.
