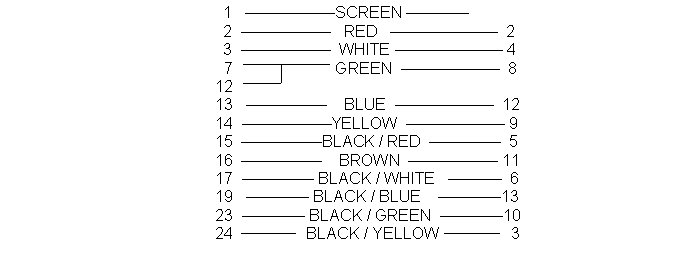

Cable Type JE

OFFICE CONNECT 500 BRIDGE ROUTER to COMMS DEVICE

(WAN port connection V11 / X21)

OFFICE CONNECT 500
Comms Device
V11 / X21
25 Pin
15 Pin
D Type Male
D Type Male

Note:
  1. The cable screen must be connected to pin 1 at the Office Connect end only.

  2. Maximum length is 100ft.
