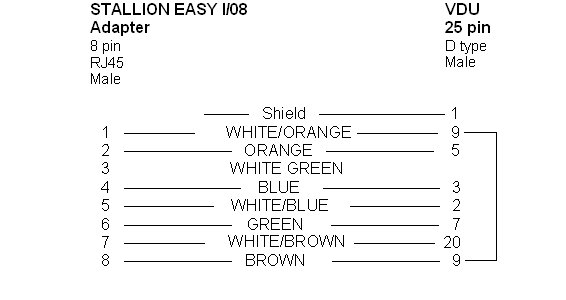

Cable Type KB

STALLION EASY I/08 Adapter to VDU (5 wire)

Note:

  1. Cable KB must be FTP (Foil Screened Twisted Pair).

  2. Maximum length is 100ft.

  3. BEWARE!! There may be some existing Stallion cables installed that have the Cable Screen earthed at the Stallion card end. All new cables installed should have the Cable Screen earthed at the peripheral end, as per EDP standards. You must ensure that the screen is dc continuous along the whole length of the cable; and that all cables MUST have the screen EARTHED AT ONE END ONLY, NOT BOTH!!!!
