HP ProLiant ML350 Generation 4 (G4) - World Wide QuickSpecs

Overview

HP ProLiant ML350 Generation 4 (G4)

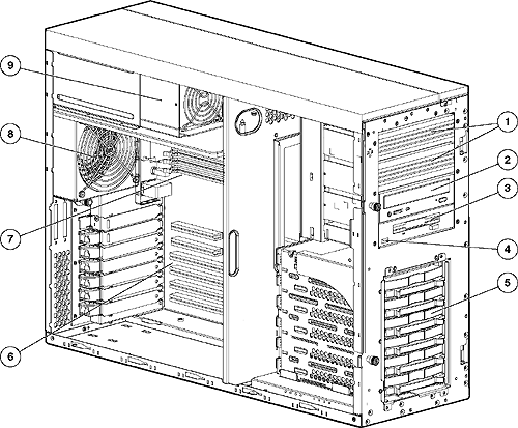

1. Two Available Removable Media Bays

2. 48X Max IDE CD-ROM Drive

3. 1.44 Diskette Drive

4. USB Port
5. Six Hot Plug Drive Bays (shown above) or Four Non Hot Plug SCSI Drive Bays (not shown)

6. Six Expansion Slots (four PCI-X, two PCI-Express)

7. Four DIMM sockets for up to 8GB of memory

8. System Fan (an optional redundant system fan is available for non-hot-plug redundancy)

9. Power Supply (NOTE: In hot plug models, an optional 2nd power supply is available for hot-plug 1+1 redundancy)

What's New

Introducing the new fourth-generation ProLiant ML350, now available with the latest in processor, memory, and I/O technology. The ProLiant ML350 G4 also includes new features designed to enhance reliability and provide configuration flexibility. New features for the ML350 G4 include:

Intel® Xeon 3.0, 3.2, and 3.4 GHz processors with 1MB Level 2 cache
Intel® E7520 chipset with 800 MHz system bus
333 MHz DDR memory
(1) 133 MHz PCI-X slot
(2) PCI-Express slots
NOTE: For information about PCI Express visit: http://www.hp.com/servers/pci-express
Models supporting non-hot plug SCSI hard drives and non hot plug power
Support for optional duplex SCSI backplane, redundant system fan, or second serial port
New universal rail solution supporting both square and round hole rack environments

At A Glance

The HP ProLiant ML350 G4 is a traditional tower server refined with essential availability features to form a versatile, dependable backbone for expanding businesses and dedicated workgroups
Intel Xeon 3.0, 3.2, or 3.4 GHz processors (dual processor capability) with 1-MB level 2 cache standard. Processors include support for Hyper-Threading and Extended Memory 64 Technology (EM64T)
Intel® E7520 chipset
800-MHz Front Side Bus
Integrated Dual Channel Ultra320 SCSI Adapter
Smart Array 641 (standard in Array Models only)
NC7761 PCI Gigabit NIC (embedded)
Up to 1 GB of PC2700 DDR SDRAM with Advanced ECC capabilities (Expandable to 8GB)
Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8 PCI-Express
Three USB ports
Support for Ultra320 SCSI hard drives (six hot plug or four non-hot plug drives supported standard, model dependent)
Internal storage capacity of up to 1.8 TB (6 x 300 GB 1"); 2.4 TB with optional 2-bay hot plug SCSI drive cage (2 x 300 GB 1" + 6 x 300 GB 1")
725W Hot-Plug Power Supply (standard, most models); optional 725W Hot-Pluggable Redundant Power Supply (1+ 1) available. Non hot plug SCSI models include a 460W non hot plug power supply.
Tool-free chassis entry and component access
Support for ROM based setup utility (RBSU) and redundant ROM
Insight Manager, SmartStart, and Automatic Server Recovery 2 (ASR-2) included
Protected by HP Services with a three-year limited warranty

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor One of the following depending on Model	Intel Xeon Processor 3.4 GHz/800 -1 MB L2
	Intel Xeon Processor 3.2 GHz/800 -1 MB L2
	Intel Xeon Processor 3.0 GHz/800 -1 MB L2

Cache Memory	Integrated 1 MB Level 2 cache

Upgradability	Upgradable to dual processing

Chipset	Intel® E7520 Chipset with 800-MHz Front Side Bus

Memory Protection	Advanced ECC

Memory One of the following depending on model	Type	PC2700 DDR SDRAM (333MHz)
	Standard for Non-Array Models	512 MB
	Standard for Array Models	1 GB
	Maximum	8 GB

Network Controller	NC7761 Gigabit NIC (embedded)

Expansion Slots	Slot Number	Bus Speed	Bus Number*	Device Number**	Hot Plug	PCI Voltage
	1	PCI Express x4 (half length)	16	1	no	N/A
	2	PCI Express x8	12	1	no	N/A
	3	64-bit/100MHz PCI-X	9	2	no	3.3 Volt
	4	64-bit/100MHz PCI-X	9	1	no	3.3 Volt
	5	64-bit/133Mhz PCI-X	6	1	no	3.3 Volt
	6	64-bit/66MHz PCI-X	2	2	no	3.3 Volt
	NOTE: For information about PCI Express visit: http://www.hp.com/servers/pci-express NOTE: Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. NOTE: Slots are enumerated differently based on OS. Microsoft OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus). NOTE:* All slots can accept universal keyed PCI cards

Storage Controller	Integrated Dual Channel Ultra320 SCSI Adapter
	Smart Array 641 Controller (Standard in Array Models only)

Storage	Diskette Drives	1.44 MB Diskette Drive
	Optical Drive	48x IDE CD-ROM Drive
	Hard Drives	36.4 GB 15,000 rpm hard drive included in non hot plug SCSI models only

Maximum Internal Storage	Hot Plug SCSI	2.4 TB	(6 x 300 GB with standard internal hot plug drive cage + 2 x 300 GB with optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
Maximum Internal Storage	Non hot plug SCSI	891.2 GB	non hot plug SCSI models (4 x 72.8 GB with standard cage + 2 x 300 GB with optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
	External Storage	Two external SCSI knockouts available; optional Internal to External SCSI Cable Option Kit required for external connections HD68 Internal to External SCSI Cable Option Kit PN 159547-B22 VHDCI Internal to External SCSI Cable Option Kit PN 333370-B21

Interfaces	Parallel	1
	Serial	1 (optional 2nd serial port available)
	Pointing Device (Mouse)	1
	Graphics	1
	Keyboard	1
	Network RJ-45	1
	USB	3 NOTE: Please see the following URL for additional information regarding USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
	External SCSI knockouts	2

Graphics	Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory VGA connector; up to 1200 x 1600 resolution supported

Form Factor

Tower or rack (5U)

NOTE: Rack models (and rack conversion kit) support:

Square or round hole racks, from 24"- 35" deep (including HP Rack System /E and HP Systems, with an adjustment)
Telco racks with 3rd part option kit from Rack Solutions
http://www.racksolutions.com/hp

ProLiant Essentials Foundation Pack Software

HP Systems Insight Manager

HP's new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. HP SIM are both easy to set up work with the Insight Management Agents, integrated Light-Out and Remote Insight Light-Outs Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration. With HP SIM customers will also be able to take advantage of role-based security; the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for storage, client, printer, and power management as well as server rapid deployment, performance management, and workload management. For more details on HP HP SIM visit http://www.hp.com/go/hpsim.

Management Agents

The Management Agents form the foundation for HP's Intelligent Manageability strategy. They provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, please visit the management Web site at http://www.hp.com/servers/manage.

SmartStart

SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at http://www.hp.com/servers/manage.
SmartStart version supported (minimum): SmartStart 7.10

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

ROMPaq, support software, and configuration utilities

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options available in SmartStart or downloadable from Software and Drivers download pages http://www.hp.com/go/support.

Insight Diagnostics Online Edition

The most advanced configuration analysis, reporting and troubleshooting utilities used by HP and at your fingertips, available in SmartStart.

Optional ProLiant Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:

Rapid Deployment Pack - an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
Performance Management Pack - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

Industry Standard Compliance	ACPI V2.0 Compliant PCI 2.2 Compliant PXE Support WOL Support PCI-X 1.0 Compliant Novell Certified Microsoft® Logo certifications

Availability	Optional Redundant System Fan Optional Hot Plug, Redundant Power supply (most models)

Remote Management	Remote Insight Lights-Out Edition II (optional)

Management	HP Systems Insight Manager SmartStart Redundant ROM System Firmware Update ROMPaq ProLiant RBSU (ROM-Based Setup Utility) Automatic Server Recovery-2 (ASR-2) Dynamic Sector Repairing (with Smart Array Controller) Drive Parameter Tracking (with Smart Array Controller) Pre-Failure Warranty (covers processors, memory and hard drives)

Server Power Cords	Tower models ship standard with a 12' country specific, lowline NEMA power cord. Rack models ship standard with a 10' IEC cable. Rack models for some countries also include a 12' NEMA cord. Most redundant power supply options ship with a 12' country specific power cord. The one exception is the IEC redundant power supply (P/N 358352-B21) which ships with a 10' IEC cable only.

Power Supply	Hot plug models include: 725 Watt, Power Factor Correction (PFC), Hot Plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant Optional 2nd power supply for hot-pluggable 1 + 1 redundancy. Non hot plug models include: 460 Watt, Power Factor Correction (PFC), Non hot plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant

System Fans	1 fan ships standard, 2 fans total supported (does not include power supply or processor heatsink fans)

Required Cabling	For required cabling information, refer to the ProLiant ML350 G4 cabling matrix on the HP Web site at http://www.hp.com/servers/proliantML350.

OS Support	Microsoft Windows Server 2003 Microsoft Small Business Server 2003 Microsoft Windows 2000 Server and Advanced Server Novell NetWare Novell NetWare Small Business Suite LINUX (Red Hat, SuSE, and UnitedLinux)
	NOTE: For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at: http://h18004.www1.hp.com/products/servers/software/OEM.html NOTE: For a complete and up-to-date listing of supported operating systems please visit our OS Support Matrix at: http://www.hp.com/go/supportos. NOTE: For a complete and up-to-date information on Linux support, please visit the HP Linux Web site at http://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html NOTE: Optional hardware may be required to support some operating systems. NOTE: For an up-to-date listing of the latest drivers available for the ProLiant ML350, please see: http://www.compaq.com/support/files/server/us/index.html.

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: http://www5.hp.com/servers/proliantml350.

Installation of Server into Telco Racks	Support for all 2-post Telco racks requires the use of the ML350 G4 rack kit and an additional option kit from Rack Solutions. http://www.racksolutions.com/hp.

HP Factory Express Capabilities

HP Factory Express gives you the flexibility to choose from a full menu of factory capabilities all in one manufacturing facility, in one process, with one touch giving you full control and access to HP's World class manufacturing facility anytime. This approach provides you the speed to deploy your IT needs, with total quality assurance, reliability, and predictability to lower your total cost of ownership by letting HP install, rack, and customize your software and hardware options for you.

Service and Support

Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors).

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support

The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution

HP Care Pack Services include HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3KVA. 22" and smaller external monitors will be covered at the same service level and coverage period as the server. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: http://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Models

ML350T04 HPSCSI x3.0-1MB/800, 512 MB 331890-xx1	Processor(s)	(1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional hard drives & drive cage)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350R04 HPSCSI x3.0-1MB/800, 512 MB 331891-xx1	Processor(s)	(1) Intel Xeon 3.0 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Rack (5U)

ML350T04 HPSCSI x3.2-1MB/800, 512 MB 356003-xx1	Processor(s)	(1) Intel Xeon 3.2 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350R04 HPSCSI x3.2-1MB/800, 512 MB 356004-xx1	Processor(s)	(1) Intel Xeon 3.2 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Rack (5U)

ML350T04 HPSCSI x3.2-1MB/800, 1 GB Array 356005-xx1	Processor(s)	(1) Intel Xeon 3.2 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	1 GB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	RAID Controller	Smart Array 641
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350R04 HPSCSI x3.2-1MB/800, 1 GB Array 356006-xx1	Processor(s)	(1) Intel Xeon 3.2 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Memory	1 GB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	RAID Controller	Smart Array 641
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Rack (5U)

ML350T04 NHP SCSI x3.0-1 MB/800, 512 MB 354611-xx2	Processor(s)	(1) Intel Xeon Processor 3.0 GHz standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	(1) 36.4 GB Ultra320 SCSI 15,000 rpm 1" Drive (up to 4 supported)
	Internal Storage	891.2 GB maximum non hot plug and hot plug SCSI (with optional hot plug SCSI drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350T04 HPSCSI x3.4-1MB/800, 512 MB 370506-xx1	Processor(s)	(1) Intel Xeon 3.4 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350R04 HPSCSI x3.4-1MB/800, 512 MB 370507-xx1	Processor(s)	(1) Intel Xeon 3.4 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	512 MB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Rack (5U)

ML350T04 HPSCSI x3.4-1MB/800, 1 GB Array 370511-xx1	Processor(s)	(1) Intel Xeon 3.4 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	1 GB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	RAID Controller	Smart Array 641
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Tower

ML350R04 HPSCSI x3.4-1MB/800, 1 GB Array 370509-xx1	Processor(s)	(1) Intel Xeon 3.4 GHz processor standard (up to 2 supported)
	Cache Memory	Integrated 1 MB Level 2 cache
	Standard Memory	1 GB
	Network Controller	NC7761 PCI Gigabit NIC (Embedded)
	Storage Controller	Integrated dual channel Ultra320 SCSI adapter
	RAID Controller	Smart Array 641
	Hard Drive	None ship standard (up to 6 supported)
	Internal Storage	2.4 TB maximum hot plug SCSI (with optional drive cage & hard drives)
	Optical Drive	48x IDE (ATAPI) CD-ROM Drive
	Diskette Drive	1.44 MB Diskette Drive
	Form Factor	Rack (5U)

Country Code Key		Tower Code Key	Rack Code Key
	XX=00	U.S. English	U.S. English
	XX=01	Australia	N/A
	XX=03	UK	N/A
	XX=04	Germany	N/A
	XX=05	France	N/A
	XX=20	Brazil	N/A
	XX=29	Japan	Japan
	XX=37	APD	APD
	XX=42	Europe	Europe
	XX=AA	PRC	PRC

Configuration Information - Factory Integrated Models (North America only)

Step 1: Base Configuration (choose one of the following configurable models)
Models	HP ProLiant ML350G4 HP-SCSI Rack CTO Chassis (North America)	372508-405
	Factory Integrated Model ships with:
	NC7761 PCI Gigabit NIC (Embedded)
	Integrated dual channel Ultra320 SCSI adapter
	Six Hot Plug Drive Bays
	Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8 PCI-Express
	Three USB ports
	725W Hot-Plug Power Supply
	5U Rack Form Factor

	HP ProLiant ML350G4 HP-SCSI Tower CTO Chassis (North America)	372507-405
	Factory Integrated Model ships with:
	NC7761 PCI Gigabit NIC (Embedded)
	Integrated dual channel Ultra320 SCSI adapter
	Six Hot Plug Drive Bays
	Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8 PCI-Express
	Three USB ports
	725W Hot-Plug Power Supply
	5U Tower form factor

	HP ProLiant ML350G4 NHP-SCSI Tower CTO Chassis (North America)	372799-405
	Factory Integrated Model ships with:
	NC7761 PCI Gigabit NIC (Embedded)
	Integrated dual channel Ultra320 SCSI adapter
	Four Non Hot Plug SCSI Drive Bays
	Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8 PCI-Express
	Three USB ports
	460 W non hot plug power supply
	5U Tower form factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors	Intel X3.0GHz/800-1MB ML350G4 FIO BASE	358344-L21
	Intel X3.2GHz/800-1MB ML350G4 FIO BASE	358345-L21
	Intel X3.4GHz/800-1MB ML350G4 FIO BASE	370513-L21
Base Memory	256 MB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 256 MB)	358346-B21
	HP ProLiant 512MB PC2700 SGLDIMM FIO BASE	358347-L21
	HP ProLiant 1GB PC2700 SGLDIMM FIO BASE	358348-L21
	2 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 2048 MB)	358349-B21
Optical Drive	HP ProLiant 48X CD w/SCREWS FIO BASE	337863-B21
	DVD-ROM Drive Option Kit	217053-B21
	CD-RW/DVD-ROM Combo Drive Option Kit	331346-B21

Step 3: Choose Additional Factory Integratable Options
Controllers	HP ProLiant Smart Array 641 FIO BASE	291966-L21
	Smart Array 642 Controller	291967-B21
	Smart Array 6402/128 Controller	273915-B21
	Smart Array 6404/256 Controller	273914-B21
	64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS	284688-B21
	64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter	268351-B21
Hard Drives	Ultra320 Non-Hot Plug NOTE: Ultra320 NHP Drives are for use with HP ProLiant ML350G4 NHP-SCSI Tower CTO Chassis (North America) (PN 372499-405) configurable models only.
	HP ProLiant 36GB 15K U320 NHP FIO BASE	357012-L21
	36.4 GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"	271832-B21
	72.8 GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"	332751-B21
	Ultra320 Hot Plug
	36.4-GB 15,000 rpm U320 Universal Hard Drive (1")	286776-B22
	72.8-GB 15,000 rpm U320 Universal Hard Drive (1")	286778-B22
	72.8-GB 10,000 rpm U320 Universal Hard Drive (1")	286714-B22
	146.8-GB 10,000 rpm U320 Universal Hard Drive (1")	286716-B22

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Options" section below.

Options

ProLiant ML350 G4 Unique Options	Hot Plug Redundant Power Supply Option Kit (NA, LA)	358352-001
	Hot Plug Redundant Power Supply Option Kit (AUST)	358352-011
	Hot Plug Redundant Power Supply Option Kit (EURO)	358352-021
	Hot Plug Redundant Power Supply Option Kit (UK)	358352-031
	Hot Plug Redundant Power Supply Option Kit (Japan)	358352-291
	Hot Plug Redundant Power Supply Option Kit (IEC) NOTE: PN 358352-B21 SKU contains the redundant power supply with an IEC power cable. Only purchase if connecting to a PDU/UPS that supports IEC cables. All other SKUs contain country specific power cables.	358352-B21
	ProLiant ML350 G4 Tower to Rack Conversion Kit	358350-B21
	ML350 G4 Redundant System Fan Kit	365866-B21

ProLiant Essentials Value Pack Software	Rapid Deployment Pack, 1 User, V1.x NOTE: This license allows 1 server to be managed and deployed via the Deployment Server.	267196-B21
	Rapid Deployment Pack, 1 User, V1.x (Japan) NOTE: This license allows 1 server to be managed and deployed via the Deployment Server.	267196-291
	Rapid Deployment Pack, 10 Users, V1.x NOTE: This license allows 10 servers to be managed and deployed via the Deployment Server.	269817-B21
	Rapid Deployment Pack, 10 Users, V1.x (Japan) NOTE: This license allows 10 servers to be managed and deployed via the Deployment Server.	269817-291
	Rapid Deployment Pack, Flexible Quantity License Kit	302127-B21
	Performance Management Pack, single server NOTE: This license allows 1 server to be managed by Performance Management Pack.	306696-B21
	Performance Management Pack, flexible license kit NOTE: A single pack is shipped with a single license key for the total number of licenses ordered	306697-B21
	ProLiant Essentials Intelligent Networking Pack (1 License)	372906-B21
	ProLiant Essentials Intelligent Networking Pack Flex License	372950-B21
	ProLiant Essentials Intelligent Networking Pack Track License	372951-B21
	NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: http://www.hp.com/servers/proliantessentials.

ProLiant Software Maintenance Subscription	ProLiant Software Maintenance Subscription	355060-B21
	ProLiant Software Maintenance Single Release	356573-B21
	ProLiant Foundation Pack Single Release	356604-B21
	NOTE: Please see the SmartStart QuickSpecs for additional information regarding the subscription purchase: http://h18000.www1.hp.com/products/quickspecs/12007_div/12007_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/12007_na/12007_na.HTML (North America)

Processors	Intel Xeon 3.4 GHz-1 MB Processor Option Kit	370513-B21
Processors	Intel Xeon 3.2 GHz-1 MB Processor Option Kit	358345-B21
	Intel Xeon 3.0 GHz-1 MB Processor Option Kit	358344-B21

Memory (DIMMs)	NOTE: The ML350 G4 requires interleaved memory configurations when more than one DIMM is installed. Base models ship standard with a single DIMM. To upgrade system memory, DIMMs must be installed in identical pairs. NOTE: Each SDRAM Memory kit contains one (1) DIMM.
	256 MB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 256 MB)	358346-B21
	512 MB of Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 512 MB)	358347-B21
	1 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 1024 MB)	358348-B21
	2 GB Advanced ECC PC2700 DDR SDRAM DIMM Kit (1 x 2048 MB)	358349-B21

Internal Storage Upgrades	Duplex SCSI Backplane Option Kit	339323-B21
	ML3xx Two Bay Hot Plug SCSI Drive Cage NOTE: The drive cage option kit (PN 244059-B21) has one 1" drive bay and one 1.6" drive bay. It installs in two available removable media bays.	244059-B21

Optical Drives	CD-RW/DVD-ROM Combo Drive Option Kit NOTE: The DVD-ROM drive is supported in either the CD-ROM bay or a removable media bay. If placed in a removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).	331346-B21
	DVD-ROM Drive Option Kit	217053-B21

Hard Drives	*Ultra320 – Universal Hot Plug*
	300-GB 10,000 rpm U320 Universal Hard Drive (1")	350964-B22
	146.8-GB 10,000 rpm U320 Universal Hard Drive (1”)	286716-B22
	72.8-GB 10,000 rpm U320 Universal Hard Drive (1”)	286714-B22
	36.4-GB 10,000 rpm U320 Universal Hard Drive (1”)	286713-B22
	72.8-GB 15,000 rpm U320 Universal Hard Drive (1”)	286778-B22
	36.4-GB 15,000 rpm U320 Universal Hard Drive (1”)	286776-B22
	18.2-GB 15,000 rpm U320 Universal Hard Drive (1”)	286775-B22
	*Ultra320 SCSI - Non-Hot Plug*
	36.4 GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"	271832-B21
	36.4 GB 15,000 rpm, U320 Non-Hot Plug Hard Drive, 1"	357012-B21
	72.8 GB 10,000 rpm, U320 Non-Hot Plug Hard Drive, 1"	332751-B21
	NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds.
	NOTE: Please see the Wide Ultra320 Universal Hot Plug QuickSpecs for additional technical information on the hard drives Support details, please see the following: http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.HTML(Worldwide) http://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML (North America)

Storage Controllers	Smart Array 6402/128 Controller	273915-B21
	Smart Array 6404/256 Controller	273914-B21
	Smart Array 641 Controller	291966-B21
	Smart Array 642 Controller	291967-B21
	128MB Battery-Backed Cache Enabler NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.	351580-B21
	256MB DDR, Battery-Backed Cache Upgrade Kit for SA-6400 NOTE: This 256-MB DDR, Battery-Backed Cache upgrade kit supports the Smart Array 6400 series controller only.	273913-B21
	Ultra320 Expansion Module for SA-6402	273911-B21
	64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS	284688-B21
	64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter	268351-B21
	NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information: http://h18000.www1.hp.com/products/quickspecs/11587_div/11587_div.HTML (Smart Array 6400 Series) http://h18000.www1.hp.com/products/quickspecs/11563_div/11563_div.HTML (Smart Array 641 & Smart Array 642) http://h18000.www1.hp.com/products/quickspecs/10429_div/10429_div.HTML (SCSI Adapter) http://h18000.www1.hp.com/products/quickspecs/11555_div/11555_div.HTML (U320 Adapter)

Communications	HP NC310F PCI-X Gigabit Server Adapter	368169-B21
	HP NC150T PCI 4-port Gigabit Combo Switch Adapter	367132-B21
	NC1020 Cu Gigabit Server Adapter 32 PCI Single Port	353377-B21
	NC6170 Dual Port PCI-X 1000SX Gigabit Server Adapter	313879-B21
	NC7170 Dual Port PCI-X 1000T Gigabit Server Adapter	313881-B21
	NC7771 PCI-X 10/100/1000-T Server Adapter	290563-B21
	Agere PCI V.92 56K Worldwide Controller less Win Modem NOTE: RJ11 modem adapter is not included.	DC131B
	NOTE: NC61XX, NC71XX , NC77XX, or NC1020 NIC can be used for redundancy with the embedded NC7761 Network Controller. The embedded network controller and the NC1020 use the same chipset and are completely compatible. However, when teaming these two NICs with the other NICs, the lack of Jumbo Frames and LSO features on either of them will cause high end NICs to have those features disabled.

Management Options	Remote Insight Lights-Out Edition II (NA, LA)	227251-001
	Remote Insight Lights-Out Edition II (EMEA)	227251-021
	Remote Insight Lights-Out Edition II (ROW)	227251-371

Security	HP/Atalla AXL300 SSL Accelerator Card	227933-B21
	HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers	524545-B21

Tape Drives

NOTE: For complete listing of tape drive offerings see http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html For recommended tape drive offerings for this ProLiant server see the following:
*Ultrium Tape Drives*
HP StorageWorks Ultrium 215 Tape Drive, Internal (Carbon)	Q1543A
HP StorageWorks Ultrium 215 Tape Drive, External (Carbon)	Q1545A
HP StorageWorks Ultrium 215 rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit	350544-B21
HP StorageWorks Ultrium 215 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300	C7492B
HP StorageWorks Ultrium 230 Tape Drive, Internal (Carbon)	Q1515A
HP StorageWorks Ultrium 230 Tape Drive, External (Carbon)	Q1517A
HP StorageWorks Ultrium 230, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit	350545-B21
HP StorageWorks Ultrium 230 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300	C7470B
NOTE: Please see the HP StorageWorks Ultrium 215 and 230 Tape Drive QuickSpecs for additional options such as controllers, media, and other related items: http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html (Worldwide) http://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html (North America)
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect
*DAT Drives*
HP StorageWorks DAT 72 Tape Drive, External (Carbon)	Q1523A
HP StorageWorks DAT 72 Tape Drive, Internal (Carbon)	Q1522A
HP StorageWorks DAT 72 Tape Drive, Internal Hot-Plug (Carbon)	Q1529A
HP StorageWorks DAT 72 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300	Q1524B
HP StorageWorks DAT 40 Tape Drive, Internal Hot-Plug (Carbon)	Q1546A
HP StorageWorks DAT 40 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300	C7497B
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options: http://h18000.www1.hp.com/products/quickspecs/11883_div/11883_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.HTML (North America) For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: http://www.hp.com/go/connect
*Rack-Mount Tape Drive Enclosures*
HP StorageWorks 3U Rack-Mount Kit	274338-B21
NOTE: The 3U Rack-Mount Kit can support up to 2 full-height or 4 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT, DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape Drives.
HP StorageWorks 5U Rack-Mount Kit	274339-B21
NOTE: The 5U Rack-Mount Kit can support up to 4 full-height tape drives and is compatible with SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits: http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML (North America)
HP StorageWorks Tape Array 5300	C7508A
NOTE: The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height or 4 half-height hot-swap array modules, including DAT and Ultrium tape drives. Cables and terminators are not included and must be ordered separately. NOTE: Please see the Tape Array 5300 QuickSpecs for additional information regarding this product. http://h18000.www1.hp.com/products/quickspecs/11878_div/11878_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.HTML (North America)

Tape Autoloaders	DAT Autoloader
	HP StorageWorks DAT 72x6 Tape Autoloader, Internal (Carbon)	Q1566A
	HP StorageWorks DAT 72x6 Tape Autoloader, External (Carbon)	Q1567A
	NOTE: Please see the DAT 72x6 Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media: http://h18006.www1.hp.com/products/quickspecs/11905_div/11905_div.html (Worldwide) http://h18006.www1.hp.com/products/quickspecs/11905_na/11905_na.html (North America)
	HP StorageWorks DAT 40x6 Tape Autoloader, Internal (Flint)	C5716A
	HP StorageWorks DAT 40x6 Tape Autoloader, External (Flint)	C5717A
	NOTE: Please see the DAT 40x6 Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media: http://h18000.www1.hp.com/products/quickspecs/11882_div/11882_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/11882_na/11882_na.HTML (North America)
	HP StorageWorks 1/8 Tape Autoloader
	1/8 Ultrium 460 Tape Autoloader, Tabletop	AA927A
	1/8 SDLT 320 Tape Autoloader, Tabletop	AA926A
	1/8 Ultrium 230 Tape Autoloader, Tabletop	C9572CB
	1/8 DLT VS80 Tape Autoloader, Tabletop	C9264CB
	1/8 Tape Autoloader Rackmount Kit	C9268R
	NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks SSL1016 Tape Autoloader
	SSL1016 Ultrium 460 Tape Autoloader	330821-B21
	SSL1016 SDLT 320 Tape Autoloader	330816-B21
	NOTE: Please reference the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution.

Tape Libraries	HP StorageWorks MSL6000 Tape Library
	MSL6030, 1 drive, 30 slots, Ultrium 460, RM	330731-B22
	MSL6030, 2 drive, 30 slots, Ultrium 460, RM	330731-B23
	MSL6030, 1 drive, 30 slots, Ultrium 460, RM with embedded FC router	330731-B24
	MSL6030, 2 drive, 30 slots, Ultrium 460, RM with embedded FC router	330731-B25
	MSL6030, 1 drive, 30 slots, Ultrium 460, TT	330788-B21
	MSL6030, 2 drive, 30 slots, Ultrium 460, TT	330788-B22
	MSL6060, 2 drive, 60 slot, Ultrium 460, RM	331196-B21
	MSL6060, 2 drive, 60 slot, Ultrium 460, RM with embedded FC router	331196-B22
	MSL6060, 2 drive, 60 slot, Ultrium 460, TT	331195-B21
	NOTE: Please reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks MSL5026S2 Tape Library
	MSL5026S2, 1 drive, 26 slots, SDLT 320, RM	293472-B22
	MSL5026S2, 2 drive, 26 slots, SDLT 320, RM	293472-B23
	MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router	293472-B24
	MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router	293472-B25
	MSL5026S2, 1 drive, 26 slots, SDLT 320, TT	293473-B21
	MSL5026S2, 2 drive, 26 slots, SDLT 320, TT	293473-B22
	NOTE: Please reference the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks MSL5052S2 Tape Library
	MSL5052S2, 2 drive, 52 slots, SDLT 320, RM	293474-B21
	MSL5052S2, 2 drive, 52 slots, SDLT 320, RM with embedded FC router	293474-B24
	MSL5052S2, 2 drive, 52 slots, SDLT 320, TT	293476-B21
	NOTE: Please reference the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks MSL5030 Tape Library
	MSL5030, 1 drive, 30 slots, Ultrium 230, RM	301897-B22
	MSL5030, 2 drive, 30 slots, Ultrium 230, RM	301897-B23
	MSL5030, 1 drive, 30 slots, Ultrium 230, RM with embedded FC router	301897-B24
	MSL5030, 2 drive, 30 slots, Ultrium 230, RM with embedded FC router	301897-B25
	MSL5030, 1 drive, 30 slots, Ultrium 230, TT	301898-B21
	MSL5030, 2 drive, 30 slots, Ultrium 230, TT	301898-B22
	NOTE: Please reference the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks MSL5060 Tape Library
	MSL5060, 2 drive, 60 slots, Ultrium 230, RM	301899-B22
	MSL5060, 2 drive, 60 slots, Ultrium 230, RM with embedded FC router	301899-B23
	MSL5060, 2 drive, 60 slots, Ultrium 230, TT	301900-B21
	NOTE: Please reference the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks ESL E-Series Tape Libraries
	ESL Extended 712e Tape Library, 0 drive, 712 LTO slots	AA934A
	ESL Extended 630e Tape Library, 0 drive, 630 SDLT slots	AA935A
	ESL E Ultrium 460 drive kit	AA937A
	ESL E SDLT 320 drive kit	AA936A
	NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs
	HP StorageWorks ESL9000 Series Tape Libraries
	ESL9595 Extended Tape Library, 0 drive, 400 slots (card cage, Interface Mgr card, Command View license)	343378-B21
	ESL9322 Extended Tape Library, 0 drive, 222 slots (card cage, Interface Mgr card, Command View license)	343377-B21
	ESL9000 Ultrium 460 drive kit	330834-B21
	ESL9000 Ultrium 230 drive kit	301930-B21
	ESL9000 SDLT 320 drive kit	293414-B21
	NOTE: Please reference the ESL9000 Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at http://www.hp.com/go/ebs

Magneto-Optical Jukeboxes	HP StorageWorks 9.1 GB Entry-level Optical Storage
	220mx, 1 drive, 24 slot jukebox	C1118M
	220mx, 2 drive, 24 slot jukebox	C1119M
	HP StorageWorks 9.1 GB Mid-range Jukeboxes
	300mx, 2 drive, 32 slot jukebox	C1150M
	600mx, 4 drive, 64 slot jukebox	C1160M
	700mx, 2 drive, 76 slot jukebox	C1170M
	NOTE: Please reference the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical for additional information needed to create a complete solution

Ultra Density Optical Jukeboxes	1000ux, 2 drive, 32 slot jukebox	AA965A
	1900ux, 4 drive, 64 slot jukebox	AA966A
	1900ux, 4 mixed drive, 64 slot jukebox	AA968A
	2300ux, 2 drive, 76 slot jukebox	AA967A
	NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at http://www.hp.com/go/optical for additional information needed to create a complete solution

External Storage – Tower and Rack	HP StorageWorks Modular Smart Array 20 NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.	335921-B21
	HP StorageWorks Modular Smart Array 20 Starter Kit NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies. Includes Smart Array 6402/128 Controller.	366172-B21
	NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 1" Hot Plug Hard Drives.
	HP StorageWorks Modular Smart Array 30 SB NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies	302969-B21
	HP StorageWorks Modular Smart Array 30 DB NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies	302970-B21
	NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 1" Hot Plug Hard Drives.
	StorageWorks Modular Smart Array 30 OpenView Storage Mirroring HA Kit - WW	359079-B21
	StorageWorks Modular Smart Array 30 OpenView Storage Mirroring HA Kit - Japan	359079-291
	Redundant Power Supply 499W	338296-B21
	Ultra320 Dual Bus I/O Module for Modular Smart Array 30	287483-B21
	Ultra320 Single Bus I/O Module for Modular Smart Array 30	287484-B21

HP StorageWorks Modular Smart Array 500	HP StorageWorks Modular Smart Array 500 Generation 2	335880-B21
	NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.HTML (Worldwide)
	HP StorageWorks Modular Smart Array 500	201724-B21
	NOTE: Please see the Modular Smart Array 500 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11050_na/11050_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11050_div/11050_div.HTML (Worldwide)

Cluster Options	ProLiant Cluster Starter Kit	364023-B21
	NOTE: For additional information regarding the ProLiant Cluster Starter Kit please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11935_na/11935_na.html (North America) http://h18000.www1.hp.com/products/quickspecs/11935_div/11935_div.html (Worldwide)
	ProLiant Cluster Kit with OpenView Storage Mirroring	364025-B21
	NOTE: For additional information regarding the ProLiant Cluster Kit with OpenView Storage Mirroring please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11934_na/11934_na.html (North America) http://h18000.www1.hp.com/products/quickspecs/11934_div/11934_div.html (Worldwide)
	ProLiant Cluster HA/F200 for the Entry Level SAN	364026-B21
	ProLiant Cluster HA/F200 for the Entry Level SAN (Japan)	364026-291
	NOTE: For additional information regarding the ProLiant Cluster for Entry Level SAN please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11932_na/11932_na.html (North America) http://h18000.www1.hp.com/products/quickspecs/11932_div/11932_div.html (Worldwide)
	ProLiant Cluster HA/F500 for the Enterprise SAN	364024-B21
	NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise SAN please see the following QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11933_na/11933_na.html (North America) http://h18000.www1.hp.com/products/quickspecs/11933_div/11933_div.html (Worldwide)

HP StorageWorks Modular Smart Array 1500	Modular Smart Array 1500 Controller Shelf	AA986A
	NOTE: Please see the StorageWorks Modular SAN Array 1500 QuickSpecs for additional options and configuration information at: http://www.hp.com/go/MSA1500cs

HP StorageWorks Modular Smart Array 1000	HP StorageWorks Modular Smart Array 1000	201723-B22
	NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide)

UPS and PDU Power Cord Matrix	Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units: ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Uninterruptible Power Systems – Tower UPS	HP UPS Model T700 (700VA, 500 Watt), Low Voltage (NA)	204015-001
	HP UPS Model T700 (700VA, 500 Watt), High Voltage (Int'l)	204015-B31
	HP UPS Model T700 (700VA, 500 Watt), Low Voltage (Japan)	204015-291
	HP UPS T1000 XR (1000 VA, 700 Watts), Low Voltage (NA)	204155-001
	HP UPS T1000 XR (1000 VA, 700 Watts), High Voltage (Int'l)	204155-B31
	HP UPS T1000 XR (1000VA, 700Watts) 100 VAC (JPN)	312803-291
	HP UPS T1500 XR (1440 VA, 1050 Watts) (NA)	204155-002
	HP UPS T1500 XR (1500 VA, 1050 Watts) (Int'l)	204155-B32
	HP UPS T1500 XR (1500 VA, 1050 Watts) (Japan)	204155-292
	HP UPS T2200 XR (1920 VA, 1600 Watts) Low Voltage (NA)	204451-001
	HP UPS T2200 XR (2200 VA, 1600 Watts) High Voltage (NA)	204451-002
	HP UPS T2200 XR (2200 VA, 1600 Watts) (Int'l)	204451-B31
	HP UPS T2200 XR (2200 VA, 1600 Watts) (Japan)	204451-291

Uninterruptible Power Systems – HP Rack UPS	HP UPS R1500 XR (100 to 127) (NA)	204404-001
	HP UPS R1500 XR (208 to 480) (Int'l)	204404-B31
	HP UPS R1500 XR (100 to 127) (Japan)	204404-291
	HP UPS R3000 XR (120V) (NA)	192186-001
	HP UPS R3000 XR (208V) (NA)	192186-002
	HP UPS R3000 XR (100V) (Japan)	192186-291
	HP UPS R3000 XR (208V) (Japan) HP UPS R3000 XR (200V) (Japan)	192186-292
	HP UPS R3000 XR (230V) (Int'l - detachable cord)	192186-B31
	HP UPS R3000 XR (230V) (16A IEC309 Plug)	192186-B32
	HP UPS R3000 XR (230V) (16A CEE 7/7 SCHUKO Plug)	192186-B33
	HP UPS R3000 XR (230V) (16A BS-546 Plug)	192186-AR1
	HP UPS R5500 XR, (5000VA, 4500 Watt), High Voltage (NA/Jpn)	326529-D71
	HP UPS R5500 XR, (6000VA, 5400 Watt), High Voltage (Int'l)	326529-B31

Modular PDUs 1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).	HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan)	252663-D71
	NOTE: This mPDU (252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
	HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)	252663-D72
	HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int’l)	252663-B31
	HP Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)	252663-B21
	NOTE: This mPDU (252663-B21), 40A model has a hardwired input.
	HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)	252663-B24
	NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements. This model may also be used with the high volt UPSs R3000 XR and R6000 For North America, need to order cable PN 340653-001.
	NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.HTML (Worldwide)

USB Options	HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)	DC172B
	USB 1.44-MB External Diskette Drive (Carbonite)	DC141B
	USB Easy Access Keyboard (Carbonite/Silver)	DC168B#
	256MB HP Drive Key	DL973B
	Multibay USB cradle	DC373A#ABA
	Multibay USB cradle	DC373A#B13

USB Easy Access Keyboard (Carbonite/Silver) Country Key Code
Dash #	Description	Dash #	Description
A2M	ICELAND	ABT	HE
AB0	TAWA	ABU	UK
AB1	KOR	ABV	ARA
AB2	PRC	ABX	FIN
AB6	FRA	ABY	DEN
AB7	GRK	ABZ	ITL
AB8	TURK	AC0	BEL
AB9	PORT	AC4	BRZ
ABA	US	ACB	RUSS
ABB	EURO	AKB	CZE
ABC	FCAN	AKC	HUNG
ABD	GR	AKD	POL
ABE	SP	AKL	THAI
ABF	FR	AKN	BHCSY
ABH	NL	AKR	SLOV
ABJ	Japan	ARK	ICELAND
ABM	LA	B15	KAZ
ABN	NOR	UUZ	SWISS
ABS	SW

Other	ProLiant ML350 G4 Second Serial Port Option Kit	338288-B21
	ProLiant ML3xx Internal to External SCSI Cable Option Kit (HD68)	159547-B22
	ProLiant ML3xx Internal to External SCSI Cable Option Kit (VHDCI)	333370-B21
	NOTE: The ProLiant ML3xx Internal to External SCSI Cable Option Kits (PN 159547-B21 and 333370-B21) are supported by the ML330, ML350, and ML370 products.
	NOTE: For a complete list of keyboards and mice please view the following URL: http://h30143.www3.hp.com/options.cfm?oid=89301&from=enter. cfm&param=oid&val=89301#m_11

Custom Builder	Please see the Enterprise Configurator for configuration assistance at: http://www.hp.com/products/configurator.

Rack Conversion Kit	ProLiant ML350 Generation 4 Tower to Rack Conversion Kit	358350-B21
	Rack Adapter Kit NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.	332815-B21

HP Rack 10000 Series (Graphite Metallic)	HP S10614 (14U) Rack Cabinet - Shock Pallet	292302-B22
	HP 10842 (42U) Rack Cabinet - Pallet	257415-B21
	HP 10842 (42U) Rack Cabinet - Shock Pallet	257415-B22
	HP 10647 (47U) Rack Cabinet - Pallet	245160-B21
	HP 10647 (47U) Rack Cabinet - Crated	245160-B23
	HP 10642 (42U) Rack Cabinet - Pallet	245161-B21
	HP 10642 (42U) Rack Cabinet - Shock Pallet	245161-B22
	HP 10642 (42U) Rack Cabinet - Crated	245161-B23
	HP 10636 (36U) Rack Cabinet - Pallet	245162-B21
	HP 10636 (36U) Rack Cabinet - Shock Pallet	245162-B22
	HP 10636 (36U) Rack Cabinet - Crated	245162-B23
	HP 10622 (22U) Rack Cabinet - Pallet	245163-B21
	HP 10622 (22U) Rack Cabinet - Shock Pallet	245163-B22
	HP 10622 (22U) Rack Cabinet - Crated	245163-B23
	NOTE: -B21 (pallet) used to ship empty racks shipped on a truck -B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels) -B23 (crated) used for air shipments of empty racks
	NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.
	NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML(Worldwide) http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML (North America)
	NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

Rack Options for HP
Rack 10000 Series

HP Light kit for 10000 series rack

361589-B21

HP Plinth kit for 10000 series rack

251960-B21

42U Side Panel Graphite Metallic

246099-B21

36U Side Panel Graphite Metallic

246102-B21

47U Side Panel Graphite Metallic

255486-B21

NOTE: For additional information regarding Rack Options, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

KVM USB Interface Adapter

336047-B21

Server Console Switch 1 x 4 port (100-230 VAC)

400336-001

Server Console Switch, 0 x 1 x 8 port

336044-B21

Server Console Switch, 0 x 2 x 16 port

336045-B21

Server Console Switch 1 x 4 port (100-230 VAC) (Int'l)

400336-B31

Server Console Switch 1 x 4 port (100-230 VAC) (Japan)

400336-291

IP Console Switch Box, 1 x 1 x 16

262585-B21

IP Console Switch Box, 3 x 1 x 16

262586-B21

IP Console Interface Adapter, 8 pack

262587-B21

IP Console Interface Adapter, 1 pack

262588-B21

IP Console Expansion Module

262589-B21

CPU to Server Console Cable, 12’

110936-B21

CPU to Server Console Cable, 3’

110936-B24

CPU to Server Console Cable, 7’

110936-B25

IP CAT5 Cable 3’, 4 pack

263474-B21

IP CAT5 Cable 6’, 8 pack

263474-B22

IP CAT5 Cable 12’, 8 pack

263474-B23

IP CAT5 Cable 20’, 4 pack

263474-B24

IP CAT5 Cable 40’, 1 pack

263474-B25

Switch Box Connector Kit (high voltage) (Int'l)

144007-B33

TFT5600 Rack Keyboard Monitor

221546-xx1

TFT7210R Rack Mounted 17" Monitor

348373-B21

NOTE: For a complete list of Monitors please view the following URL:
http://h18004.www1.hp.com/products/monitors/.

1U Rack Keyboard & Drawer (Carbon)

257054-xx1

Country Code Key for Keyboards

XX = 001	US	XX = 091	Norway
XX = 031	UK	XX = 101	Sweden/Finland
XX = 041	Germany	XX = 111	Switzerland
XX = 051	France	XX = 131	Portugal
XX = 061	Italy	XX = 181	Belgium
XX = 071	Spain	XX = 291	Japan
XX = 081	Denmark	XX = B31	International

NOTE: For additional information regarding Rack Options, please see the following URL: http://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

HP Factory Express	Factory Installation, Racking, and Customization Services
	Factory Express Server Configuration Level 1	293355-888
	NOTE: Free Installation of HP Options - Installation of HP Options memory, NICs, hard drives, controllers, processors, I/O cards, pre-install standard OEM OS image, and tape drives. Installation fees will apply to all non-HP certified hardware and asset tags.
	Factory Express Server Configuration Level 2	266326-888
	NOTE: Includes Level 1 Customer Intent of a ProLiant server and options configuration, OS installation, custom image download, IP addressing, network setting, and custom packaging. Customer unique requirements (quick restore creation, cd duplication, test reports, real-time reporting of server MAC address, password, and RILOE). Customer access, validation and control through VPN (price/server).
	Factory Express Rack Integration Level 3 with 1 - 3 servers or storage enclosures	325736-888
	Factory Express Rack Integration Level 3 with 4 - 9 servers or storage enclosures	232539-888
	Factory Express Rack Integration Level 3 with 10 or more servers or storage enclosures	325735-888
	NOTE: Includes Level 1 Customer Intent for standard mounted servers and storage units plus standard cable mgmt, RAID configuration, servers & storage, power distribution, networking gear and accessories (price/rack). NOTE: Available on ProLiant rack models only.
	Factory Express Rack Integration Level 4 with 1 - 3 servers or storage enclosures	325734-888
	Factory Express Rack Integration Level 4 with 4 - 9 servers or storage enclosures	232540-888
	Factory Express Rack Integration Level 4 with 10 or more servers or storage enclosures	325733-888
	NOTE: Includes Level 2 Customer Intent plus customer defined cable management and naming convention, customer furnished image download, IP addressing, cluster configurations (SQL, External storage RAID). Quick restore creation, cd duplication, test reports, real-time reporting of server MAC address, password, RILOE). Customer access and validation through VPN (price/rack). NOTE: Available on ProLiant rack models only.
	Factory Express Rack Integration Level 5 with 1 - 3 servers or storage enclosures	325732-888
	Factory Express Rack Integration Level 5 with 4 - 9 servers or storage enclosures	232541-888
	Factory Express Rack Integration Level 5 with 10 or more servers or storage enclosures	325731-888
	NOTE: Includes Level 4 Customer Intent plus Custom SW layering and extended test, Customer access, validation and control through VPN, Clustered racks with networking gear and / or external storage array, Start-up installation services custom quote. (price/rack). NOTE: Available on ProLiant rack models only. NOTE: Factory Express Engineered Solution Level 6 is a custom solutions available through Factory Express. Please contact your local reseller or Account Manager.

Service and Support Offerings (HP Care Pack Services)

*Hardware Services On-site Service*
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years	U4512A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years (Electronic)	U4512E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years	U4513A
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)	U4513E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years	U4514A
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic)	U4514E

O/S and Hardware Installation
Hardware Installation	U4522A
Hardware Installation (Electronic)	U4522E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.	U4523A
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays. (Electronic)	U4523E

*Support Plus*
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.	U4524A
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays. (Electronic)	U4524E

*Support Plus 24*
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.	U4525A
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic	U4525E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.	U6308A
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic	U6308E
Onsite HW support 24x7, 4hr response and Red Hat ES2.1 Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.	U8330A
Onsite HW support 24x7, 4hr response and Red Hat ES2.1 Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic	U8330E
NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant ML350 G4 Memory Configuration
The ML350 G4 requires memory interleaving when more than one DIMM is installed. For interleaving, DIMMs must be populated in identical pairs. The system will not boot properly if multiple DIMMs of varying density or type are installed in the system.

Standard Memory
All ML350 G4 models ship with a single Advanced ECC PC2700 DDR SDRAM DIMM (running at 333 MHz).
Most models include a single 512 MB DIMM.
Array models include a single 1 GB DIMM.

NOTE: Advanced ECC Memory - ECC protection provides the ability to detect and correct single bit memory errors while Advanced ECC extends this coverage to include protection against multiple simultaneous errors on a DIMM. Advanced ECC detects and corrects 4bit memory errors that occur within a single DRAM chip on a DIMM. Advanced ECC algorithms work in combination with industry standard ECC DIMMS.

Standard Memory Plus Optional Memory
Up to 6.1 GB of total memory can be implemented with the installation of three optional PC2700 DIMMs.

Standard Memory Replaced with Optional Memory
Up to 8.2 GB of total memory can be implemented with the removal of the standard 512-MB or 1 GB DIMM and the installation of four 2 GB PC2700 DIMMs.

Common Memory Upgrades from Standard Memory
NOTE: Charts do not represent all possible memory configurations.

		Pair 1		Pair 2
Std. Mem (non-Array)	512 MB	512 MB	Empty	Empty	Empty
	1 GB	512 MB	512 MB	Empty	Empty
	2 GB	512 MB	512 MB	512 MB	512 MB
	3 GB	512 MB	512 MB	1 GB	1 GB
	5 GB	512 MB	512 MB	2 GB	2 GB

		Pair 1		Pair 2
Std. Mem (Array)	1 GB	1 GB	Empty	Empty	Empty
	2 GB	1 GB	1 GB	Empty	Empty
	3 GB	1 GB	1 GB	512 MB	512 MB
	4 GB	1 GB	1 GB	1 GB	1 GB
	6 GB	1 GB	1 GB	2 GB	2 GB


Following are memory options available from HP: NOTE: All memory kits are single DIMM kits
256 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)	358346-B21
512 MB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 512 MB)	358347-B21
1 GB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)	358348-B21
2 GB of Advanced ECC PC2700 DDR SDRAM DIMM Memory Kit (1 x 2048 MB)	358349-B21
NOTE: 2 GB DIMMs are supported in memory slots 1 and 2 only when slots 3 and 4 are also populated with 2 GB DIMMs. In all other instances, 2 GB DIMMs should be installed in slots 3 and 4.

Storage

	0 - 5	6 x 1" in SCSI Hard Drive Bays
	or
	N0 - N3	4 x 1" non-hot plug Hard Drive Bays
	D	1.44 MB Diskette Drive
	C	48x CD-ROM
	A,B	Available half height bay


Drive Support

	Quantity Supported	Position Supported	Controller
Removable Media
1.44-MB Diskette Drive	Up to 1	D	Integrated
IDE (ATAPI) CD-ROM Drive	Up to 2	A, B, C	Integrated IDE
DVD-ROM Drive Option Kit	Up to 2	A, B, C	Integrated IDE
ML3xx Two Bay Hot Plug SCSI Drive Cage	Up to 1	A + B	Integrated SCSI

Hard Drives
Ultra320 SCSI - Hot Plug Drives
	Quantity Supported	Position Supported	Controller
1-inch 300-GB 10,000 rpm 146.8-GB 10,000 rpm 72.8-GB 10,000 rpm 36.4-GB 10,000 rpm 72.8-GB 15,000 rpm 36.4-GB 15,000 rpm 18.2-GB 15,000 rpm	Up to 6	0-5	Integrated Dual Channel Ultra320 SCSI Adapter Smart Array 641 Controller (NOTE: The Smart Array 641 Controller ships standard with Array models.) Smart Array 6402/128 Controller Smart Array 6404/256 Controller Smart Array 642 Controller 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds.

*Ultra320 SCSI - Non-Hot Plug*
	Quantity Supported	Position Supported	Controller
1-inch 72.8-GB 10,000 rpm 36.4-GB 10,000 rpm	Up to 4	N0-N4, C, D	Integrated Dual Channel Wide Ultra320 SCSI Adapter Smart Array 641 Controller (NOTE: The Smart Array 641 Controller ships standard with Array models.) Smart Array 6402/128 Controller Smart Array 6404/256 Controller Smart Array 642 Controller 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
NOTE: Installation of Non hot plug SCSI drives in the removable media bays (position C or D) requires the purchase of an additional SCSI cable.

External Storage
		Quantity Supported	Position Supported	Host Controller or Adapter
	Modular Smart Array 20 Family	Up to 2	External	Smart Array 6402/128 Controller Smart Array 6404/256 Controller
	Modular Smart Array 30 Family	Up to 2	External	Integrated Dual Channel Wide Ultra320 SCSI Adapter NOTE: Connection of an external device to the embedded SCSI controller requires an internal-to-external cable (PN 159547-B22 or 333370-B21) Smart Array 6402/128 Controller Smart Array 6404/256 Controller Smart Array 642 Controller 64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
	Modular Smart Array 500 or 500 G2	1	External	Please see the Modular Smart Array 500 or 500 G2 QuickSpecs for the latest list of supported HBAs: http://www.hp.com/go/msa500.
	Modular Smart Array 1500 cs or 1000	Please see the Modular Smart Array 1500 cs or Modular Smart Array 1000 QuickSpecs links below to determine configuration requirements		Please see the Modular Smart Array 1500 cs or Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs.
	Modular Smart Array 1000: http://h18000.www1.hp.com/products/quickspecs/11033_div/11033_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML (North America) Modular Smart Array 1500: http://www.hp.com/go/MSA1500cs

Tape Drives, Tape Autoloaders, & Tape Libraries
NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/North_America/10233.html (North America) http://h18000.www1.hp.com/products/quickspecs/Division/10233.html (Worldwide) NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following: http://h18000.www1.hp.com/products/quickspecs/North_America/10809.html (North America) http://h18000.www1.hp.com/products/quickspecs/Division/10809.html (Worldwide)
		Quantity Supported	Position Supported	Controller
	HP StorageWorks DAT 40 or DAT 72 Tape Drive, Internal Hot-Plug	Up to 3 per drive cage. NOTE: drives are 1.5 height devices	0-5	Smart Array 6402/128 Controller Smart Array 6404/256 Controller Smart Array 642 Controller Smart Array 641 Controller 64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	HP StorageWorks Ultrium 230 Tape Drive, Internal (non hot plug)	1	C + D	Integrated Dual Channel Ultra320 SCSI 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	HP StorageWorks DAT 72 or Ultrium 215 Tape Drive, Internal (non hot plug)	2	C,D	Integrated Dual Channel Ultra320 SCSI 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	HP StorageWorks Ultrium 215, Ultrium 230, or DAT 72 Tape Drive, External	2	External	Integrated Dual Channel Ultra320 SCSI NOTE: Connection of an external device to the embedded SCSI controller requires an internal-to-external cable (PN 159547-B22 or 333370-B21) 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	3U & 5U Rack-mount Kits Tape Array 5300

	HP StorageWorks Tape Autoloader, Internal DAT 72x6 DAT 40x6	1	C + D	Integrated Dual Channel Ultra320 SCSI 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	HP StorageWorks Tape Autoloaders, External DAT 72x6 DAT 40x6 1/8 Ultrium 460 1/8 SDLT 320 1/8 Ultrium 230 1/8 DLT VS80 SSL1016 Ultrium 460 SSL1016 SDLT320 SSL1016 DLT1	1 autoloader per SCSI channel	External	Integrated Dual Channel Ultra320 SCSI NOTE: Connection of an external device to the embedded SCSI controller requires an internal-to-external cable (PN 159547-B22 or 333370-B21) 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

	HP StorageWorks Tape Libraries MSL6000 (Ultrium 460 based) MSL5026S2 (SDLT 320 based) MSL5052S2 (SDLT 320 based) MSL5030 (Ultrium 230 based) MSL5060 (Ultrium 230 based) ESL712e ESL630e ESL9322 ETLA ESL9595 ETLA	Please reference the relevant MSL or ESL Tape Library QuickSpecs to determine configuration requirements	External	Integrated Dual Channel Ultra320 SCSI NOTE: Connection of an external device to the embedded SCSI controller requires an internal-to-external cable (PN 159547-B22 or 333370-B21) 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

Power Specifications

Models with Hot Plug Power
Part Number	345875-001
Spare Kit	365063-001
Operational Input Voltage Range (V rms)	90 to 264
Frequency Range (Nominal) (Hz)	47 to 63 (50/60)

Nominal Input Voltage (Vrms)	100	115	208	220	230	240
Max Rated Output Wattage Rating	725	725	725	725	725	725
Nominal Input Current (A rms)	9.4	7.9	4.2	4.0	3.8	3.6
Max Rated Input Wattage Rating (Watts)	906	895	873	863	863	863
Max. Rated VA (Volt-Amp)	915	904	910	899	909	909
Efficiency (%)	80	81	83	84	84	84
Power Factor	0.99	0.99	0.96	0.96	0.95	0.95
Leakage Current (mA)	0.31	0.36	0.65	0.69	0.72	0.75
Maximum Inrush Current (A peak)	10	12	28	22	23	24
Maximum Inrush Current duration (miliseconds)	3

Models with Non Hot Plug Power
Part Number	342481-001
Spare Kit	365220-001
Operational Input Voltage Range (V rms)	90 to 264
Frequency Range (Nominal) (Hz)	47 to 63 (50/60)

Nominal Input Voltage (Vrms)	100	115	208	220	230	240
Max Rated Output Wattage Rating	460	460	460	460	460	460
Nominal Input Current (A rms)	6.9	5.9	3.2	3.0	2.8	2.7
Max Rated Input Wattage Rating (Watts)	676	667	648	639	639	639
Max. Rated VA (Volt-Amp)	690	680	682	680	680	680
Efficiency (%)	69	69	71	72	72	72
Power Factor	0.98	0.98	0.95	0.94	0.94	0.94
Leakage Current (mA)	0.31	0.36	0.65	0.69	0.72	0.75
Maximum Inrush Current (A peak)	10	12	28	22	23	24
Maximum Inrush Current duration (miliseconds)	3

NOTES:
ActiveAnswers Power Calculation
Power calculator is LIVE on ActiveAnswers Web site. This is an external link.
Follow this link: http://h30099.www3.hp.com/configurator/powercalcs.asp

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G4
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

Technical Specifications

System Unit - Hot Plug SCSI Tower	Dimensions (HxWxD) (with feet/bezel)	18.5 x 10.25 x 26 in (46.99 x 26.04 x 66.04 cm)
	Dimensions (HxWxD) (without feet/bezel)	17.5 x 8.5 x 24 in (44.50 x 21.59 x 60.96 cm)
	Weight(approximate)	60 lb (27.24 kg) (without hard drives)
	Input Requirements (per power supply)	Rated Line Voltage	100 to 120 VAC
		Rated Input Frequency	50 Hz to 60 Hz
		Input Power	906W @ 100VAC
		Rated Input Current	9.2A(100VAC),4.3A(200VAC)
	Rated Line Frequency	50 to 60 Hz
	BTU Rating	3,125 BTU/hr
	SCSI Connectors	Two internal HD68 connectors
	SCSI Connectors	(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B22) and either of the two SCSI knockouts.)
	Power Supply Output Power (per power supply)	Rated Steady-State Power	725W
	Temperature Range	Operating	50° to 95° F (10° to 35° C) (No direct sustaining sunlight)
	Temperature Range	Storage (up to one year)	-40° to 158° F (-40° to 70° C)
	Maximum Wet Bulb Temperature	82.4° F (28° C)
	Relative Humidity (non-condensing)	Operating	10% to 90%
	Relative Humidity (non-condensing)	Non-operating	5% to 90%
	Acoustic Noise	Idle (Fixed Disk Drives Spinning)
		L WAd (BELS)	6.5
		L pAm (dBA)	48
		Operating (Random Seeks to Fixed Disks)
		L WAd (BELS)	6.5
		L pAm (dBA)	48

System Unit - Hot Plug SCSI Rack	Dimensions (HxWxD)	8.61 x19 x 24 in (21.87 x48.26 x 60.96 cm)
	Weight(approximate)	60 lb (27.24 kg) (without hard drives)
	Input Requirements (per power supply)	Rated Line Voltage	100 to 120 VAC
		Rated Input Frequency	50 Hz to 60 Hz
		Input Power	906W @ 100VAC
		Rated Input Current	9.2A(100VAC),4.3A(200VAC)
	Rated Line Frequency	50 to 60 Hz
	BTU Rating	3,125 BTU/hr
	SCSI Connectors	Two internal HD68 connectors
	SCSI Connectors	NOTE: Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit, PN 159547-B22 or 333370-B21, and either of the two SCSI knockouts.
	Power Supply Output Power (per power supply)	Rated Steady-State Power	725W
	Temperature Range	Operating	50° to 95° F (10° to 35° C) (No direct sustaining sunlight)
	Temperature Range	Storage (up to one year)	-40° to 158° F (-40° to 70° C)
	Maximum Wet Bulb Temperature	82.4° F (28° C)
	Relative Humidity (non-condensing)	Operating	10% to 90%
	Relative Humidity (non-condensing)	Non-operating	5% to 90%
	Acoustic Noise	Idle (Fixed Disk Drives Spinning)
		L WAd (BELS)	6.5
		L pAm (dBA)	48
		Operating (Random Seeks to Fixed Disks)
		L WAd (BELS)	6.5
		L pAm (dBA)	48

System Unit - Non Hot Plug SCSI Tower	Dimensions (HxWxD) (with feet/bezel)	18.5 x 10.25 x 25.75 in (46.99 x 26.04 x 65.4 cm)
	Dimensions (HxWxD) (without feet/bezel)	17.5 x 8.5 x 24 in (44.50 x 21.59 x 60.96 cm)
	Weight(approximate)	60 lb (27.24 kg) (without hard drives)
	Input Requirements (per power supply)	Rated Line Voltage	100 to 120 VAC
		Rated Input Frequency	50 Hz to 60 Hz
		Input Power	676W @ 100 VAC
		Rated Input Current	6.9A(100VAC)/3.3A(200VAC)
	Rated Line Frequency	50 to 60 Hz
	BTU Rating	2,360 BTU/hr
	SCSI Connectors	Two internal HD68 connectors
	SCSI Connectors	(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit,PN 159547-B22 or 333370-B21, and either of the two SCSI knockouts.)
	Power Supply Output Power (per power supply)	Rated Steady-State Power	460W
	Temperature Range	Operating	50° to 95° F (10° to 35° C) (No direct sustaining sunlight)
	Temperature Range	Storage (up to one year)	-40° to 158° F (-40° to 70° C)
	Maximum Wet Bulb Temperature	82.4° F (28° C)
	Relative Humidity (non-condensing)	Operating	10% to 90%
	Relative Humidity (non-condensing)	Non-operating	5% to 90%
	Acoustic Noise	Idle (Fixed Disk Drives Spinning)
		L WAd (BELS)	6.0
		L pAm (dBA)	46.3
		Operating (Random Seeks to Fixed Disks)
		L WAd (BELS)	6.0
		L pAm (dBA)	46.5

NC7761 PCI Gigabit Server Adapter (embedded)	Network Interface	10Base-T/100Base-TX/1000Base-TX
	Compatibility	IEEE 802.3 10Base-T
		IEEE 802.3ab 1000Base-T
		IEEE 80.3u 100Base-TX
	Data Transfer Method	32-bit bus-master PCI
	Network Transfer Rate	10Base-T(Half-Duplex)	10 Mb/s
		10Base-T(Full-Duplex)	20 Mb/s
		100Base-TX(Half-Duplex)	100 Mb/s
		100Base-TX(Full-Duplex)	200 Mb/s
		1000Base-TX	1000Mb/s
	Connector	RJ-45
	Cable Support	10Base-T	Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
		10/100/1000Base-TX	Category 5 UTP; up to 328 ft (100 m)

Integrated Dual Channel Ultra320 SCSI Adapter	Drives Supported	Up to 28 SCSI devices (14 per channel)
	Data Transfer Method	64-bit PCI bus-master
	SCSI Channel Transfer Rate	320 MB/s per channel
	Maximum Transfer Rate per PCI Bus (peak)	400 MB/s per channel
	SCSI Protocols	Wide Ultra2 SCSI
		Wide-Ultra SCSI-3
		Ultra320 SCSI
	Electrical Protocol	Low Voltage Differential (LVD)
	SCSI Termination	Active Termination
	External SCSI Connectors	Optional VHDCI and HD68 internal-to-external connectors
	Internal SCSI Connectors	Two 68-Pin Wide-Ultra SCSI-3 connectors

Smart Array 641 Controller (NOTE:* The Smart Array 641 Controller ships standard with the 3.2 GHz Array Models only.)*	Protocol	Ultra320 SCSI
	SCSI Electrical Interface	Low Voltage Differential (LVD)
	Drives Supported	Up to 6 Ultra 320, Ultra3 and Ultra2 SCSI hard drives
	SCSI Port Connectors SA-641	One internal SCSI port
	Data Transfer Method	64-Bit PCI bus-master
	PCI Bus Speed	64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
	PCI	3.3 volt PCI slot compatibility only
	Simultaneous Drive Transfer Channels	One
	Channel Transfer Rate	320-MB/s total; 320-MB/s per channel
	Software upgradable Firmware	Yes
	Cache Memory	64-MB DRAM used for code, transfer buffers, and non-battery backed read cache
	Logical Drives Supported	32
	Maximum Capacity	880.8 GB (6 X 146.8 GB)
	Memory Addressing	64-bit, supporting servers memory greater than 4 GB
	RAID Support	RAID 5 (Distributed Data Guarding) RAID 1+ 0 (Striping & Mirroring) RAID 1 (Mirroring) RAID 0 (Striping)
	Upgradeable Firmware	2-MB Flashable ROM
	Disk Drive and Enclosure Protocol Support	Ultra 320, Ultra2 and Ultra3
	Warranty	Maximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty) Minimum: One-year, on-site limited warranty Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support Center or refer to your HP Server Documentation.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA-12009 - World Wide - Version 4 - September 2, 2004
