INFORMATION RELEASE

AB202/1

DESCRIPTION:

Installation Guide

RELEASE DATE :

23 September, 2002

Notes
· When installing Sophos, ensure you are logged in as the Domain Administrator
· Any existing anti-virus software must be removed before installing Sophos Anti-virus

This is done once at the primary domain controller. From then on, the account should be available throughout the domain

1. Create a domain user account called SWEEPUPD with a password of sophosservice
2. Deselect User must change password at next logon
3. Select User cannot change password
4. Select Password never expires
5. Click Add and highlight the user and select user rights from the policies menu
6. Select Show advanced user rights
7. From the drop down rights box choose Log on as a service
8. Click Add
9. Click Show Users
10. Select the SWEEPUPD account from the list
11. Click Add
12. Click Ok
13. Click Ok
14. Exit User Manager for domains

This needs to be done on the BDC/PDC/Server/s of the customer's choice

1. Insert CD
2. Click Quick Installation from the splash screen
3. Click next at the set-up screen
4. Choose central installation/upgrade
5. Click next
6. Select source folder (should be entered by default)
7. Select destination folder (defaults to c:\program files\sophos sweep for nt\ntinst\i386\)
8. Click next
9. Select auto-upgrade
10. Select Prevent Removal
11. Click next
12. Select Non-Interactive
13. Deselect Allow users to postpone auto-upgrade
14. Change the Auto-Update frequency to daily
15. Click next
16. Click finish
17. Click Ok

This needs to be done on the CID machines

1. Find the setup.exe installed in the CID (to c:\program files\sophos sweep for nt\ntinst\i386\)
2. Click next
3. Select the source and destination folders (defaults are fine)
4. Deselect Enable InterCheck Client
5. Select Enable InterCheck Server
6. Scheduled network access should be deselected
7. Click next
8. Select Auto-Upgrade
9. Deselect Prevent-Removal
10. Click next
11. Now enter the details of the Auto-Update account configured earlier
12. Click next
13. Deselect Interactive
14. Select Non-Interactive and disable Allow users to postpone auto-upgrade
15. Change the Auto-Update frequency to Every 240 Minutes
16. Click next
17. Click Finish to complete the installation
18. When installation is complete click exit
19. Ensure that the InterChk share exists by using Windows NT explorer to navigate to c:\program files\ and the share symbol should be underneath the folder sophos sweep for NT

This is a client installation and should be performed on PC's using NT/2000 as the operating system

1. Click network neighborhood
2. Browse to the CID of the server and double click setup.exe
3. Click next
4. Enter the source and destination install directory (defaults are fine)
5. Click next
6. Check Enable InterCheck Client
7. Deselect Enable InterCheck Server and Scheduled network access
8. Click next
9. Check Auto-Upgrade and prevent removal
10. Click next
11. Enter the Auto-Update account details
12. Click next
13. Deselect Interactive
14. Check Non-interactive and disable Allow users to postpone auto-upgrade
15. Change the Auto-Update frequency to Daily
16. Click next
17. Click Finish
18. When the installation is complete Click Run SWEEP
19. Click the IC Client Tab
20. Click the Loud speaker Icon
21. Select the InterCheck Logging tab
22. Deselect Disable InterCheck Logging
23. In the Path to InterCheck Server enter \\<servername>INTERCHK\COMMS
24. Click Ok

This needs to be done once at each site from a client PC using Windows 95/98 as the operating system

1. Login to the domain as the administrator from a Windows 95/98 machine
2. Insert CD
3. Click Quick Installation from the splash screen
4. Click next at the set-up screen
5. Choose central installation/upgrade
6. Select InterCheck for Windows 98/95 and Intercheck Monitor
7. Click next
8. Enter the UNC path to the InterCheck server folder e.g. (\\<servername>\Interchk)
9. Click next
10. Enter source and destination folder (defaults are fine)
11. Click next
12. Select yes to create the destination folder
13. Select auto-upgrade
14. Select Prevent Removal
15. Click next
16. Select Non-Interactive
17. Deselect Allow users to postpone auto-upgrade
18. Click next
19. Click finish
20. Click Ok

Installing on Windows 95/98 PC's

This is a client installation and should be performed on PC's using 95/98 as the operating system

1. From the run dialog enter the following \\<servername\interchk\w95inst\setup.exe -inl -a
2. Click Ok
3. When installation has finished it warns about restarting the computer
4. Once restarted SAV will scan the computer for viruses and completes the installation

1. On the workstations, run the tools\savtest\savtst32.exe from the Sophos installation CD
2. Select file and then on access test, SAV should display the virus found message

Auto-Update IDE batch software

This needs to be done on the CID's

1. Create a directory in the c drive called autoide
2. Copy the sget program into the directory
3. Copy pkunzip into the directory
4. Create the update.bat script (as below)
5. Enter the at command below at a dos prompt window

An alternative to typing the AT command at DOS is to use the inbuilt Task Scheduler in Windows NT
This is found in c:\winnt\tasks
Ensure that you are logged on as Administrator

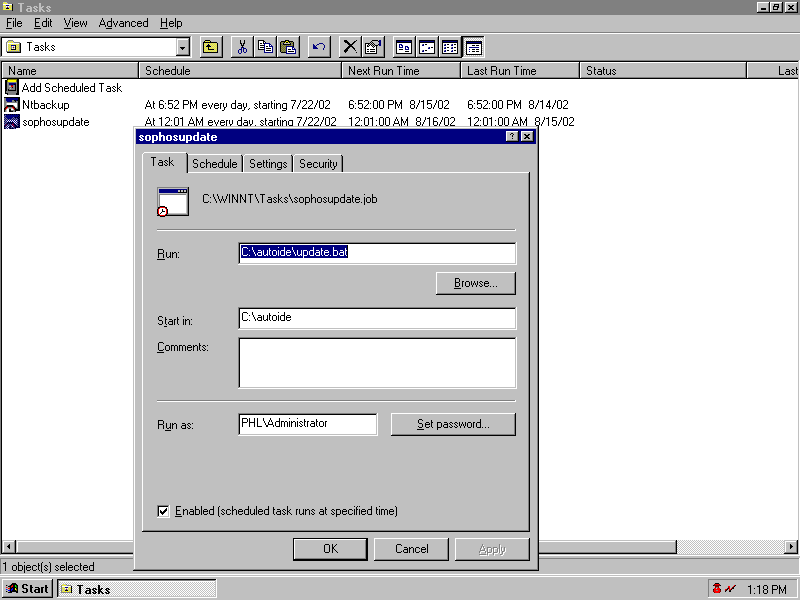

Add a task so that it looks as shown below
Ensure that the password is the Administrator password
Ensure that FULL CONTROL is allowed in File Permissions

IF NOT EXIST c:\autoide\lastides.zip goto unzipides
fc /l c:\autoide\lastides.zip c:\autoide\ides.zip > c:\autoide\comp.txt
find "no differences encountered" c:\autoide\comp.txt >nul
if %errorlevel% EQU 1 goto levelone
if %errorlevel% EQU 0 goto same

:levelone
REM Files Are Different
del c:\autoide\lastides.zip
goto unzipides

:same
del c:\autoide\ides.zip
del c:\autoide\comp.txt
goto end

:unzipides
del c:\progra~1\sophos~1\ntinst\i386\*.ide
del c:\progra~1\sophos~1\w95inst\*.ide
c:\autoide\pkunzip -e c:\autoide\ides.zip c:\progra~1\sophos~1\ntinst\i386\
c:\autoide\pkunzip -e c:\autoide\ides.zip c:\progra~1\sophos~1\w95inst\
start /wait c:\progra~1\sophos~1\ntinst\i386\setup.exe -update -ni
start /wait c:\progra~1\sophos~1\w95inst\setup.exe -update -ni
rename c:\autoide\ides.zip lastides.zip
del c:\autoide\comp.txt
date /T > c:\autoide\lastupdated.txt
goto end

:downloadfailed
ECHO SOPHOS FAILED TO DOWNLOAD IDES
ECHO ADMINISTRATOR, PLEASE RUN UPDATE MANUALLY
ECHO YOUR VIRUS DATABASE IS OUT OF DATE.
ECHO TYPE C:\AUTOIDE\UPDATE.BAT
PAUSE

:end

Notes: -
The first highlighted line ping www.fastfreenet.com initialises the ISDN line
The second highlighted line date /T > c:\autoide\lastupdated.txt puts the time and date into a file called lastupdated.txt which can be viewed to check that it has been working.
To see how up to date the Sophos is on a system, Search for *.ide files.
Look at the latest date and compare to a working system

Windows XP installations are performed just as an NT installation
If the first attempt fails do not delete the files, install again and it will install okay

The Prevent removal does exactly what it says on the tin.
