Jumpers and Connectors

Dell™ PowerEdge™ 1500SC Systems Service Manual

bullet (2).gif (1107 bytes) Overview bullet (2).gif (1107 bytes) System Board Features and Labels
bullet (2).gif (1107 bytes) Jumpers—A General Explanation bullet (2).gif (1107 bytes) SCSI Backplane Boards
bullet (2).gif (1107 bytes) System Board Jumpers bullet (2).gif (1107 bytes) Disabling a Forgotten Password

Overview

This section provides specific information about the jumpers on the system board. It also provides some basic information on jumpers and describes the connectors and sockets on the various boards in the system.


Jumpers — A General Explanation

Jumpers provide a convenient and reversible way of reconfiguring the circuitry on a printed circuit board. When installing replacement parts or reconfiguring the system, you may need to change jumper settings on the system board. You may also need to change jumper settings on expansion cards or drives.

Jumpers

Jumpers are small blocks on a circuit board with two or more pins emerging from them. Plastic plugs containing a wire fit down over the pins. The wire connects the pins and creates a circuit. To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated.

NOTICE: Make sure the system is turned off before you change a jumper setting. Otherwise, damage to the system or unpredictable results may occur.

A jumper is referred to as open or unjumpered when the plug is pushed down over only one pin or if there is no plug at all. When the plug is pushed down over two pins, the jumper is referred to as jumpered. The jumper setting is often shown in text as two numbers, such as 1-2. The number 1 is printed on the circuit board so that you can identify each pin number based on the location of pin 1.


System Board Jumpers

Figure 1 shows the location of the configuration jumpers on the system board. Table 1 lists the function of these jumpers.

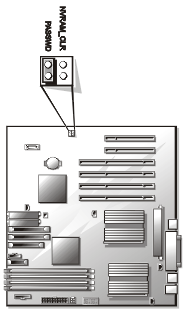

Figure 1. System Board Jumpers

Table 1. System-Board Jumper Settings

Jumper Setting Description
PASSWD (default) The password feature is enabled.
The password feature is disabled.
NVRAM_CLR (default) The configuration settings are retained at system boot.
The configuration settings are cleared at next system boot. If the configuration settings become corrupted to the point where the system will not boot, install the jumper plug and boot the system. Remove the jumper before restoring the configuration information.

System Board Features and Labels

Figure 2 lists the features, sockets, and labels located on the system board.

Figure 2. System Board Features and Labels

1

Battery connector (BATTERY)

2

PCI expansion card slot 1 (SLOT1)

3

PCI expansion card slot 6 (SLOT6)

4

PCI cooling shroud fan connector (PCI FAN)

5

Microprocessor and heat sink 2 (CPU2)

6

Voltage regulator module (VRM CONN)

7

NIC connector (LAN)

8

 Parallel, serial, and video connectors (LPT1, VGA, COM1)

9

USB connectors (USB)
10 Keyboard (KB) and mouse (MS)

11

Microprocessor and heat sink 1 (CPU1)

12

Auxiliary power (P11)

13

Auxiliary +12 V power connector (P12)

14

Power connector (P1)

15

PSDB interface (PSDB CONN)

16

Memory modules (DIMMA to DIMMD)

17

Control panel connector (FRONT PANEL)

18

SCSI backplane interface (SCSIBP CONN)
19 Diskette connector (FDD)
20 Primary IDE connector (PRIMARY IDE)
21 Secondary IDE connector (SECONDARY IDE)
22 SCSI B connector (SCSIB)
23 SCSI A connector (SCSIA)
24 Front fan power (FRONT SYS FAN)
25 Intrusion alarm switch (IA)




SCSI Backplane Boards

Figure 2 shows the location of the connectors on the front of the SCSI backplane board.

Figure 2. SCSI Backplane Board Connectors

1 SCSI slot 0
2 SCSI slot 1
3 SCSI slot 2
4 SCSI slot 3
5 SCSI slot 4
6 SCSI slot 5




Disabling a Forgotten Password

To disable a forgotten supervisor or user password, see "Using the System Setup Program."
