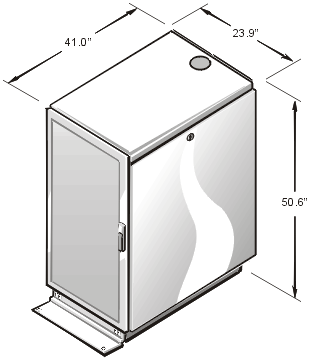

Dimensions • Physical and Environmental Specifications
| Physical | |
| Height | 218.0 cm (50.6 inches) |
| Width | 60.0 cm (23.9 inches) |
| Depth | 85.0 cm (41.0 inches) |
| Weight | 94 kg (206 lb) empty. Maximum allowable weight of internal components is 453.6 kg (1000 lb). Rack capacity does not include weight of the rack. |
| Environmental | |
| Temperature: | |
| Operating | 10° to 35°C (50° to 95°F) |
| Storage | -40° to 65°C (-40° to 149°F) |
| Relative humidity | 8% to 80% (noncondensing) |
| Maximum vibration: | |
| Operating | 0.25 G at 3 to 200 Hz for 30 min |
| Storage | 0.5 G at 3 to 200 Hz for 30 min |
| Maximum shock: | |
| Operating | half-sine wave form: 38 G for 2 ms |
| Storage | half-sine wave form: 83 G for 2 ms; square wave form: 20 G for 35 ms |
| Altitude: | |
| Operating | -16 to 3048 m (-50 to 10,000 ft) |
| Storage | -16 to 10,600 m (-50 to 35,000 ft) |
