Jumpers and Connectors

Dell™ PowerEdge™ 700 Systems Installation and Troubleshooting Guide

  Jumpers—A General Explanation

  System Board Jumpers

  System Board Connectors

  Disabling a Forgotten Password


This section provides specific information about the system jumpers. It also provides some basic information on jumpers and switches and describes the connectors on the various boards in the system.

Jumpers—A General Explanation

Jumpers provide a convenient and reversible way of reconfiguring the circuitry on a printed circuit board. When reconfiguring the system, you may need to change jumper settings on circuit boards or drives.

Jumpers

Jumpers are small blocks on a circuit board with two or more pins emerging from them. Plastic plugs containing a wire fit down over the pins. The wire connects the pins and creates a circuit. To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated. Figure A-1 shows an example of a jumper.

Figure A-1. Example Jumpers

CAUTION: Ensure that the system is turned off before you change a jumper setting. Otherwise, damage to the system or unpredictable results may occur.

A jumper is referred to as open or unjumpered when the plug is pushed down over only one pin or if there is no plug at all. When the plug is pushed down over two pins, the jumper is referred to as jumpered. The jumper setting is often shown in text as two numbers, such as 1–2. The number 1 is printed on the circuit board so that you can identify each pin number based on the location of pin 1.

Figure A-2 shows the location and default settings of the system jumper blocks. See Table A-1 for the designations, default settings, and functions of the system's jumpers.

System Board Jumpers

Figure A-2 shows the location of the configuration jumpers on the system board. Table A-1 lists the jumpers settings.

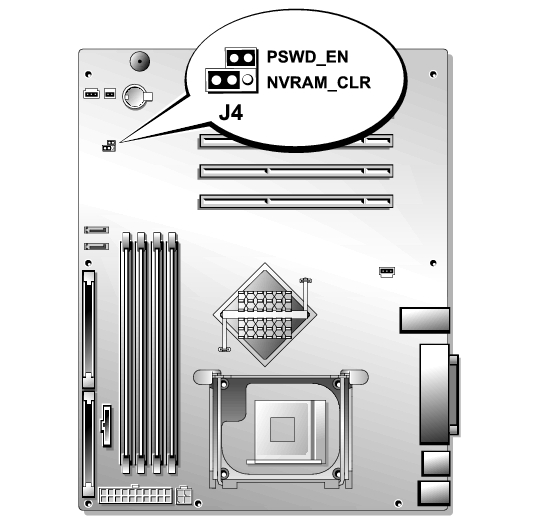

Figure A-2. System Board Jumpers

Table A-1. System Board Jumper Settings

Jumper

Setting

Description

PSWD_EN

  (default)

The password feature is enabled.

The password feature is disabled.

NVRAM_CLR

  (default)

The configuration settings are retained at system startup.

The configuration settings are cleared at next system startup.

NOTE: You can store a spare, unused jumper plug on one pin of the NVRAM_CLR jumper block.

 jumpered      unjumpered

System Board Connectors

See Figure A-3 and Table A-2 for the location and description of system board connectors. Figure A-3 also lists expansion slot numbers, buses, and bus operating speeds.

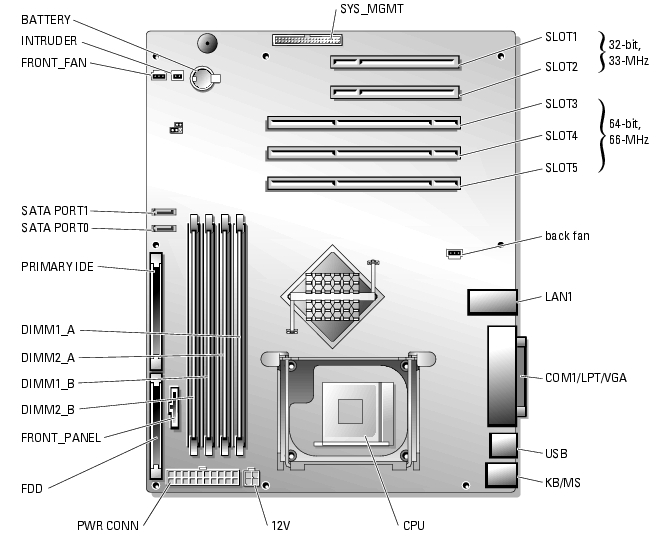

Figure A-3. System Board Connectors

Table A-2. System Board Connectors

Connector

Description

12V

Power supply

BACK FAN

Back system fan

BATTERY

System battery

COM1/LPT/VGA

Serial, parallel, and video

CPU

Processor

DIMMn_x

Memory modules (4)

FDD

Diskette

FRONT_FAN

Front system fan

FRONT_PANEL

Front panel

INTRUDER

Chassis intrusion

KB/MS

PS/2 keyboard and mouse

LAN1

NIC

PRIMARY IDE

Primary IDE

PWR CONN

Power supply

SATA PORT0

SATA port 0

SATA PORT1

SATA port 1

SLOTn

Expansion slots:

  • 1–2: 32-bit/33-MHz
  • 3–5: 64-bit/66-MHz

SYS_MGMT

Remote access controller

USB

USB

Disabling a Forgotten Password

The system's software security features include a system password and a setup password, which are discussed in detail in "Using the System Setup Program" in your User's Guide. The PSWD_EN jumper enables these password features or disables them and clears any password(s) currently in use.

CAUTION: See your System Information Guide for complete information about safety precautions, working inside the computer, and protecting against electrostatic discharge.
  1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.

  2. Remove the bezel. See "Removing the Bezel" in "Troubleshooting Your System."

  3. Lay the system on its right side.

  4. Remove the cover. See "Removing the Cover" in "Troubleshooting Your System."

  5. Remove the PSWD_EN jumper plug.

See Figure A-2 to locate the jumper on the system board.

  1. Install the cover. See "Replacing the Cover" in "Troubleshooting Your System."

  2. Stand the system upright.

  3. Replace the bezel. See "Installing the Bezel" in "Troubleshooting Your System."

  4. Reconnect the system to its electrical outlet and turn the system on, including any attached peripherals.

The existing passwords are not disabled (erased) until the system boots with the PSWD_EN jumper plug removed. However, before you assign a new system and/or setup password, you must install the jumper plug.

NOTE: If you assign a new system and/or setup password with the jumper plug still removed, the system disables the new password(s) the next time it boots.
  1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.

  2. Remove the bezel. See "Removing the Bezel" in "Troubleshooting Your System."

  3. Lay the system on its right side.

  4. Remove the cover "Removing the Cover" in "Troubleshooting Your System."

  5. Install the PSWD_EN jumper plug.

See Figure A-2 to locate the jumper on the system board.

  1. Install the cover. See "Replacing the Cover" in "Troubleshooting Your System."

  2. Stand the system upright.

  3. Replace the bezel. See "Installing the Bezel" in "Troubleshooting Your System."

  4. Reconnect the system to its electrical outlet and turn the system on, including any attached peripherals.

  5. Assign a new system and/or setup password.

To assign a new passwords using the System Setup program, see "Assigning a System Password" in your User's Guide.
