  Troubleshooting

  Downloading Firmware Through the Console Port

  Technical Specifications

  Getting Help

  Regulatory Notices

Troubleshooting

This section explains how to isolate and diagnose problems with the switch. If you have a problem that is not listed here and you cannot solve it, contact Dell (see "Contacting Dell").

LEDs

• All light-emitting diodes (LEDs) are off.



Ensure that:

• You are using an RJ-45 (network) cable and not an RJ-11 (telephone) cable to connect to the switch.


• The power cable is firmly connected to the relevant switch unit and to the supply outlet. If the connection is secure and there is still no power, you may have a faulty power cable.


• The switch has sufficient space for adequate airflow on both sides.



NOTICE: Operating temperature for the switch must not exceed 40ºC (104°F). Do not place the switch in the direct sunlight or near warm air exhausts or heaters.

• When the switch powers on, the Diag LED lights are red.


• The relevant switch unit failed its power on self-test because of an internal problem. See "" for more information.



Ports

• The port does not function.



Ensure that:

• The cable connections are secure and the cables are connected to the correct ports at both ends of the link.


• The port status is set to Enable and the autonegotiation feature is enabled at the switch. See "Port Configuration" for more information.



Management Access

• The terminal cannot access the switch.



Ensure that:

• Your terminal is correctly configured to operate as a VT100 terminal.


• You are using a proper null-modem cable.


• You have set the terminal emulator program to VT100-compatible, 8 data bits, 1 stop bit, no parity and 9600 bps. See "Connecting the Console Port" for more information.



• You cannot access the switch using Telnet.



Ensure that:

• You have configured the switch's management virtual local area network (VLAN) with a valid Internet Protocol (IP) address, subnet mask, and default gateway.


• Your management station has management VLAN access (see "Management VLAN Access").


• The switch is powered up.


• You have a valid network connection to the switch and the port you are using has not been disabled.


• You have not exceeded the maximum number of concurrent Telnet sessions permitted. Try connecting again at a later time.



• The web browser cannot access the switch.



Ensure that:

• You have configured the switch's management VLAN with a valid IP address, subnet mask, and default gateway.


• Your management station has management VLAN access (see "Management VLAN Access").


• The switch is powered up.


• You have a valid network connection to the switch and the port you are using has not been disabled.



• Simple Network Management Protocol (SNMP) management software cannot access the switch.



Ensure that:

• You have configured the switch's management VLAN with a valid IP address, subnet mask, and default gateway.


• Your management station has management VLAN access (see "Management VLAN Access").


• SNMP is enabled on the switch and community strings have been set with the appropriate access rights.


• The switch is powered up.


• You have a valid network connection to the switch and the port you are using has not been disabled.



Management VLAN Access

The following sections describe troubleshooting related to management VLAN access to the switch.

Layer 2 Switch Connections

If you are having problems setting up management access in a network where there are only Layer 2 switch connections to the management station, use the following example to troubleshoot the problem.

Example 1

Three switches, which form three VLANs, are interconnected to a fourth core switch. Network administrators who are connected to one switch need to be able to access all switches. The VLAN port memberships should be set up as shown in the following figure.

In the preceding figure, the management VLAN is VID 2 and all inter-switch ports are configured as tagged ports. The ports that interconnect the switches must be configured as members of the management VLAN, and the management station must be connected to a port that is also a member of the same VLAN.

For management VLAN access, ensure that:

• You have configured the switch's management VLAN with a valid IP address and subnet mask.


• The management station has an IP address in the same subnet as the management VLAN.


• The management station is connected to a switch port that is a member of the management VLAN, and the port VLAN ID (PVID) is also configured as the management VLAN.


• Ports that interconnect switches in the network are tagged and are members of the management VLAN.



Layer 3 Switch Connections

If you are having problems setting up management access in a network where there are Layer 3 switch connections to the management station, use the following example to troubleshoot the problem.

Example 2

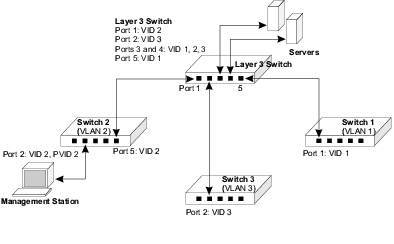

Three Layer 2 switches, which form three VLANs, are interconnected to a fourth Layer 3 switch. Network administrators connected to one Layer 2 switch need to be able to access all switches for management. The VLAN port memberships should be set up as shown in the following figure.

In the preceding figure, the management VLAN is different on each switch, with the Layer 3 switch interconnecting the VLANs. The ports that interconnect the switches are configured as tagged ports. The ports on the Layer 3 switch that connect to the other switches must be configured as members of the management VLAN for each switch.

For management VLAN access, ensure that:

• You have configured the switch's management VLAN with a valid IP address, subnet mask, and default gateway.


• The management station has a valid IP address, subnet mask and default gateway.


• The management station is connected to a switch port that is a member of the management VLAN, and the PVID is also configured as the management VLAN.


• Ports that interconnect switches, including the Layer 3 switch in the network, are tagged and are members of the management VLAN.



Downloading Firmware Through the Console Port

The switch contains two firmware components that can be upgraded: the diagnostics (or Boot-ROM) code and the runtime operation code. You can upgrade the runtime code through the switch's RS-232 serial console port, through a network connection to a Trivial File Transfer Protocol (TFTP) server, or with SNMP management software. You can upgrade the diagnostics code only through the switch's RS-232 serial console port.

NOTICE: Use the switch's web interface to download the runtime code through TFTP (see "Firmware Upgrade"). Downloading large runtime code files through TFTP is normally much faster than downloading files through the switch's serial port.

You can upgrade switch firmware by connecting a computer directly to the serial console port on the switch's front panel and using VT100 terminal emulation software that supports the XModem protocol. (See "Connecting the Console Port.")

To download firmware:

1. Connect a computer to the switch's console port using a null-modem or crossover RS-232 cable with a female DB-9 connector.


2. Configure the terminal emulation software's communication parameters to 9600 baud, 8 data bits, 1 stop bit, and no parity. Set flow control to none.


3. Power cycle the switch.


4. To enter firmware-download mode, press <Ctrl><f> immediately after the diagnostic test results appear in the switch initialization screen.



Screen text similar to that shown in the following example displays:

File Name           S/Up Type Size   Create Time

------------------- ---- ---- ------ -----------

$logfile_1           0     3   64       00:00:07

$logfile_2           0     3   64       00:00:12

diag_0070            0     1   96500    00:06:37

diag_0074            1     1   97780    00:00:05

run_03024            0     2   1121956  00:21:41

run_10020            1     2   1124416  00:00:10

------------------- ---- ---- ------ -----------

[X]modem Download [D]elete File [S]et Startup File

[R]eturn to Factory Default [C]hange Baudrate [Q]uit

Select>

5. Press <c> to change the baud rate of the switch's serial connection.


6. Press <b> to select the option for 115200 baud.



There are two baud rate settings available: 9600 and 115200. Using the higher baud rate minimizes the time required to download firmware code files.

7. Set your computer's terminal emulation software to match the 115200 baud rate. Press <Enter> to reset communications with the switch.



Select>

Change baudrate [A]9600 [B]115200

Baudrate set to 115200

8. Before you download the firmware, ensure that the switch has sufficient flash memory space for the new code file.



You can store up to two runtime and two diagnostic code files in the switch's flash memory. Use the [D]elete File command to remove a runtime or diagnostic file that is not set as the startup file (the S/Up setting for the file is 0).

9. Press <x> to download the new code file.



If you are using Windows HyperTerminal, click Transfer and then click Send File. Select the XModem Protocol and use the Browse button to find the required firmware code file on your computer.

The Xmodem file send window displays the progress of the download procedure.

NOTICE: The download file must be a PowerConnect 3248 binary software file from Dell.

10. After the file has been downloaded, press <r> for runtime code or <d> for diagnostic code when Update Image File: appears.


11. Specify a name for the downloaded code file. Filenames can be up to 32 characters, are case sensitive, and cannot contain spaces.



The following figure shows an example of the download procedure for a runtime code file:

Select>x

Xmodem Receiving Start ::

    [R]untime

    [D]iagnostic

Update Image File:r

Runtime Image Filename : run_10030

Updating file system.

File system updated.

[Press any key to continue]

12. To set the new downloaded file as the startup file, click the [S]et Startup File menu option.


13. When you have finished downloading code files, click the [C]hange Baudrate menu option to change the baud rate of the switch's serial connection back to 9600 baud.


14. Set your computer's terminal emulation software baud rate back to 9600 baud. Press <Enter> to reset communications with the switch.


15. Press <q> to quit the firmware-download mode and boot the switch.

Technical Specifications

Standards
Ethernet types supported	IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3z, IEEE 803.ab
Other standards supported	IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ac, IEEE 802.3ad
Interfaces
10/100BASE-TX ports	48
10/100/1000BASE-T ports	2
SFP transceiver slots	2
RS-232 connector	1
Indicators
System LEDs	3
Port LEDs:
10/100BASE-TX ports	1 per port
10/100/1000BASE-T ports	1 per port
SFP transceiver slots	1 per slot
Power
Input	100-240 VAC 50-60 Hz
Physical
Dimensions	440 x 354 x 43 mm (17.3 x 13.9 x 1.7 inches)
Weight	4.36 kg (9.5 lb)
Environmental
Temperature:
Operating	0º to 50ºC (32º to 122ºF)
Storage	-40º to 70ºC (-40º to 158ºF)
Relative humidity:
Operating	10% to 90%
Storage	5% to 90%
