IO # 3/1

FECO:

IO # 3/1

MODIFICATION NO:

N/A

PRODUCT:

SPECIALIX JETSTREAM 8500

SUB-ASSEMBLY:

N/A

ESTIMATED MAN HOURS:

N/A

CLASS OF CHANGE:

INFORMATIONAL

REASON FOR CHANGE:

INTRODUCTION OF A NEW PRODUCT. CHANGE CABLE SPECIFICATIONS

RELATED FECO/AB

IO # 1 & IO#3

SPECIALIX JETSTREAM 8500 NETWORK ACCESS SERVER.

IN FECO IO#3 REMOVE PAGES 1 & 2 AND REPLACE WITH NEW PAGES I & 2 IO#3/1

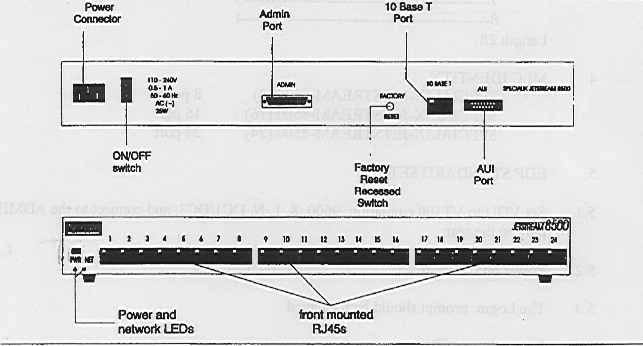

  1. EDP introduce the Specialix Jetstream 8500, Network Access Server, as a replacement for MTS/MTA, Jetstream 6000 and 7000 series devices. The single size box houses 8, 16 or 24 RJ45 ports on the front; whilst at the rear the mains input and the administrators, together with the input AU1 and 10 BaseT port are located.

          See diagram below.

2. SPECIFICATION

Size: Width, 430mm Height, 44mm (in) Depth 230mm.

Can be mounted in standard 19 inch rack.

Weight: – max 1.9kg

Power: consumption max 25 watts.

8, 16, 24 ports non upgradeable, with port speeds of up to 230kbs

RJ45 connections allow direct connection to CAT5 cabling.

Interface Cable, Cable Type GR, has 25pin D Type connector and allows connection to existing standard EDP cabling as well as for new installations. (See Paragraph 3).

There is no parallel port at all.

The revision level should be 2.07 or higher

Easily set-up using unique supervisor port.

Standard EDP Protocol is TCP/IP.

Connection to host via thin net requires a 10 Base 2 to AUI transceiver

Direct connection to host using AUI or 10 BaseT.

3. INTERFACE CABLE

    EDP Cable Type HR which superseded Cable Type GR.
    This MUST be foil screened twisted pair cable (FTP)

    Specialix Jetstream 8500 to Psdeudo RTC connector

    Network Terminal Adapter

    8500 RTC connector

    8pin 25pin

    RJ45 Dtype

    Malen Female

    Side connector_Shield_

    1---------------------------------------------8

    2---------------------------------------------6

    3--------------------------------------------20

    4---------------------------------------------7

    5---------------------------------------------3

    6---------------------------------------------2

    7---------------------------------------------5

    8---------------------------------------------4 Length 2ft.

4. MEC IDENTITY

          SPECIALIX-JETSTREAM-8500 (8) 8 port

          SPECIALIX-JETSTREAM-8500 (16) 16 port

          SPECIALIX-JETSTREAM-8500 (24) 24 port

5. EDP STANDARD SET-UP

5.1      Set VDU to VT100 emulation, 9600, 8, 1, N, DC1/DC3; and connect to the ADMIN port on the rear.

5.2      Power on the Jetstream

5.3      The Login: prompt should be displayed

5.4      Enter admin <CR>

           At password prompt just enter <CR>

           JS_8500# or similar should be displayed.

5.5      Enter screen <CR> to display main menu

5.6      NOTE: To move through menus do not use the arrow keys as these may cause problems but use –

        CTRL-J for down

        CTRL-K for up

        CTRL-L for right

        CTRL-H for left instead

5.7      FROM MAIN MENU SELECT SERVER CONFIGURATION AND SET AS FOLLOW:-

    Parameter Sample setting

    server name mts1 mts2 etc

    internet address 192.0.0.2.

    broadcast address 192.255.255.255

    subnet mask 255.255.255.0

    domain name blank

    ip-host blank or i/p address

    authorisation both

    gui access off

    banner off

          When set press <CR>

          prompt accept and exit from press <CR>

5.8  DO NOT SET PASSWORD

5.9  SET DATE/TIME

            From main menu select hardware

            Set date and time

            When set press <CR>

            Prompt accept and exit form <CR>

5.10 SET LINE CONFIGURATON

            From main menu select line configuration

            Select line settings <CR>

            Displayed are the available lines, i.e. for 16 port line numbers 1-16 are displayed

            Select the line number required

            See the following paragraphs for setting up a VDU or printer

5.11 FOR VDU SET UP

            The following require to be set up:-

            Service dir tel

            speed 9600 terminal dumb

            flow soft pages 4

            bits 8 user

            parity none hostname xyz

            stop 1 host port 2xxx

            JS port 2 xxx

            dial none modem name

            phone number

  idle timer 0 session timer

5.12 FOR PRINTER ON UNIX SVR4 AND UNIVISION

            The printer on Unix SVR4 and Univision

            The following require to be set up:-

            Service printer

            speed 9600 terminal dumb

            flow soft pages 4

            bits 8 user

            parity none hostname xyz

            stop 1 host port 2xxx

            JS port 2 xxx

            dial none modem name

            phone number

            idle timer 0 session timer

5.13 FOR PRINTER ON SCO UNIX

            The following require to be set up:-

            Service rev raw

            speed 9600 terminal dumb

            flow soft pages 4

            bits 8 user

            parity none hostname xyz

            stop 1 host port 2xxx

            JS port 2 xxx

            dial none modem name

            phone number

            idle timer 0 ;session timer

5.14 AFTER LINE CHARACTERISTICS ARE SET TO EXIT,

            Select command line mode

            Select exit and save changes

            Display of saving to flash ROM. This may take several seconds, please wait.

            When complete prompt is JS_8500#

            to reboot, enter reb <CR>

            prompt confirm reboot jetstream y/n enter y

            The Jetstream will reboot and run diagnostic routine displaying results before returning to the log in
            prompt.

6. REPAIR

            Repair is by replacement.

7.NOTE Only shielded cables should be used for connection to Jetstream ports.
