The 3Com OfficeConnect Remote 500 series router

FECO COMMS # 48

	FECO:	Comms # 48
	MODIFICATION NO:	N/A
	PRODUCT:	3COM OFFICE CONNECT REMOTE 500 SERIES WIDE AREA NETWORK ROUTER
	SUB-ASSEMBLY:	N/A
	ESTIMATED MAN HOURS:	N/A
	CLASS OF CHANGE:	INFORMATIONAL
	REASON FOR CHANGE:	INTRODUCTION OF NEW PRODUCT
	RELATED FECO/AB	N/A

INTRODUCTION OF THE 3COM OFFICE CONNECT REMOTE 500 SERIES WIDE AREA NETWORK ROUTER

INFORMATION RELEASE

3COM OFFICECONNECT REMOTE 500 SERIES WIDE AREA NETWORK ROUTER

1. INTRODUCTION.

The 3Com OfficeConnect Remote 500 series router is suitable for extending a company's existing LAN a branch office and further.

Three models are currently available all with the same software capabilities and only differing in the number and type of WAN connections.

2. SPECIFICATIONS.

OfficeConnect Remote 511. This has only one ISDN port although both ISDN channels are accessible and can be bonded to create a single 128Kb connection.

OfficeConnect Remote 521. This model has the same features as the 511 with the addition of a voice port. This will allow a telephone handset to be attached to either end of the link and a single voice call made on an unused ISDN channel.

OfficeConnect Remote 531. This has the features included with the previous models plus a serial port (V.24, V.11 and V.35) which allows for direct connection to a leased line i.e. kilostream. This model can be configured to utilize the ISDN line if additional bandwidth is required or as a backup if the leased line connection fails.

OfficeConnect Remote features. All models have the following features.

Transparent bridging of all networked protocols.
IP and IPX routing capabilities.
NetWare protocol spoofing.
Data compression on all types of WAN link.
Supports Point to Point Protocol (PPP) allowing the router to be used for internet access via an ISP.
Can operate as a Domain Name Server (DNS) and supports Dynamic Host Configuration Protocol (DHCP).
Supports Network Address Translation (NAT).
Has built in firewall software for increased security.
Can be managed via a serial terminal or PC with emulation software, telnet session or SNMP management software.
Can be stacked and integrated with other 3Com products and managed by 3Com Transcend software.

3. HARDWARE OVERVIEW.

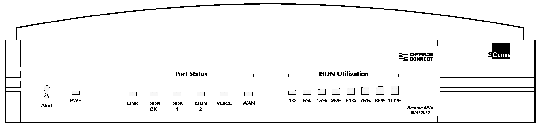

The front panel has a number of indicator lights on it that are detailed below.

ALERT (orange).

Off	Normal operation, no faults.
Slow flash	Software loading during power up.
Quick flash	Self test during power up.
On	Fault detected.

POWER (green).

On	Power supplied to unit.
Slow flash	New software being downloaded.
Quick flash	Self test during power up.
Off	No power to unit.

LINK (orange).

On	LAN connected.
Off	No LAN connection detected.

ISDN OK (green).

On	Unit connected to a working ISDN line.
Flashing	Fault on the ISDN line.
Off	No physical ISDN connection detected.

ISDN 1 and ISDN 2 (yellow).

On	Connected to a remote ISDN device.
Flashing	Call in progress but not yet connected.
Off	ISDN channel is not in use.

VOICE (yellow) – only present on the 521 and 531.

On	Voice call in progress.
Flashing	Call is being made or there is an incoming call.
Off	Voice channel is not in use.

WAN (yellow) – only present on the 531.

On	WAN link is available to pass data.
Flashing	Fault on the WAN link detected.
Off	WAN link is not connected.

ISDN Utilization (green/yellow).

Shows ISDN usage as a percentage of the network loading. If this is constantly at 100% then a faster connection is required.

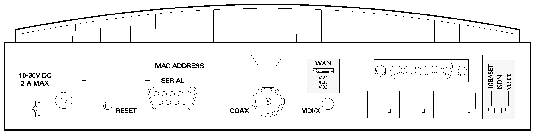

The rear panel has the following connection present as described below.

Power should be supplied be the external transformer supplied with the unit.

RESET For use by 3Com Technical Support only.

SERIAL Attach the serial management terminal to this port. The terminal should be configured at 9600 baud, 8 data bits and no parity. It should use a VT100 emulation mode.

COAX Use this port to attach to a 10Base-2 Ethernet LAN segment. If this is required, make sure nothing is attached to the 10Base-T LAN port.

MDI/MDIX This switch determines the type of connection that the 10Base-T LAN port provides. If the unit is connected to a hub then the switch should be set to the IN position. If the device is attached directly to a PC network adapter then the switch should be set to the OUT position to enable the crossover.

WAN (531 only) This is a 25 way D-type female connector used to attach the unit directly to a leased line. The port supports X.21/V.11, V.24/V.28 and V.35/V.36 standards up to 2Mb.

10BASE-T Use this port to attach to an 10Base-T network via an RJ45 connection. Make sure nothing is attached to the COAX port if this connection type is required.

ISDN Using an RJ45 connection attach the ISDN line to this port.

VOICE (521 and 531 only) Using an RJ11 connection an standard PSTN telephone handset can be connected to this port. A BT to RJ11 converter is supplied with these models.

4. INTERFACE CABLES.

WAN port cables.

V.11/X.21 WAN cable.

3Com end Client end

(25 way male D-type) (15 way male D-type)

Transmit Data A	2	2
Receive Data A	3	4
Signal Ground	7	8
Signal Ground	12
Indicate B	13	12
Transmit Data B	14	9
Indicate A	15	5
Receive Data B	16	11
Clock A	17	6
Clock B	19	13
Control B	23	10
Control A	24	3

V.24/V.28 WAN Cable.

3Com end Client end

(25 way male D-type) (25 way male D-type)

Transmit Data A	2	2
Receive Data A	3	3
Request to Send	4	4
Clear to Send	5	5
Signal Ground	7	7
Signal Ground	11
Signal Ground	12
Data Carrier Detect	8	8
Transmit Clock	15	15
Receive Clock	17	17
Analog Loop Test	18	18
Data Terminal ready	20	20
Remote Digital Test	21	21
External Clock	24	24

Manager Port Connecting Cable (9 pin to 9 pin).

3Com end Client end

(9 way female D-type) (9 way female D-type)

TxD	3	2
RxD	2	3
Ground	5	5
CTS	8	4
DSR	6
DCD	1
DTR	4	8
		6
		1

Manager Port Connecting Cable (9 pin to 25 pin).

3Com end Client end

(9 way female D-type) (25 way male D-type)

TxD	3	2
RxD	2	3
RTS	7	4
CTS	8	5
DSR	6	6
Ground	5	7
DCD	1	8

LAN Port Connecting Cable – 10Base-T.

3Com end Client end

(RJ-45 male type) (RJ-45 male type)

TxD+	1	1
TxD-	2	2
RxD+	3	3
Not used	4	4
Not used	5	5
RxD-	6	6
Not used	7	7
Not used	8	8

5. CONFIGURATION.

Two configurations have been created so far, both for ISDN only operation. One configures the unit as a bridge, the other as a router. Further setups will be released later to enable other operating modes i.e. PPP router, kilostream operation with backup, DNS server etc.

Use of Manager Software.

Connect a terminal to the manager port of the OfficeConnect Remote and press Enter. The terminal should be using VT100 emulation mode running at 9600 baud, 8 data bits and no parity.

A prompt should appear requesting a password.

Type PASSWORD and press Enter to display the main menu. The password must be entered in uppercase.

V06.010c REDHILL MAIN MENU ETSI ISDN Ok

-------------------------------------------------------------------------------

QC - Quick Configuration

COnf - Configuration

STats - Status/Statistics Monitor

REMote - Remote Management

DOnate - Donate Software to Remote

TFtp - Donate Software to Remote using TFTP

QUIT - Disconnect

-------------------------------------------------------------------------------

^W - Help ^G - Main menu

^L - Prev menu

-------------------------------------------------------------------------------

Enter command :

The management software uses a menu / sub-menu approach, each menu being selected by entering the uppercase characters displayed by the menu name i.e. CO for Configuration.

Pressing Control-G will automatically return to the main menu.

Pressing Control-L will move back to the previous menu selected.

Typing QUIT and pressing Enter will log out of the manager software.

It is possible to go directly to a sub-menu option by entering the Fast Track Command that is built up from the characters required to enter the individual menus, separated by spaces i.e. to enter the router configuration parameters menu type CO RO PA (COnfiguration ROuter PArameters).

Changes made on individual configuration screens must be stored by pressing Control-E. Changes can be aborted by pressing Control-L.

Any changes made must be stored permanently by typing SAVE at any point. A message will be displayed on any menu screen when changes have not been saved. See the example screen below.

V06.010c REDHILL CONFIGURATION ETSI ISDN Ok

-------------------------------------------------------------------------------

STD - Factory Default Configuration

SYs - System Parameters

POrts - Configure Ports

BRidge - Bridge Configuration

ROuter - Router Configuration

ISdn - ISDN Configuration

SNmp - SNMP System Parameters

AUth - Authentication

NAt - Network Address Translation

DNs - DNS/NBNS Servers

DHcp - DHCP Relay/Proxy

-------------------| Please save new Configuration (SAVE) |--------------------

^G - Main menu

^L - Prev menu

-------------------------------------------------------------------------------

(co) Enter command :

Resetting to Default Values.

Before configuring the device, it is recommended that it is reset back to factory defaults. This should be done as follows.

The following message will be displayed.

This will ERASE all configurations. ERASE (Y/N) ?

Type Y and press Enter.

The unit will now reboot, this may take a few minutes.

Once rebooted, press Enter when prompted and log in as normal.

Type SAVE and press Enter to store the changed settings.

Type QUIT and press Enter to log out.

Remove the power connector from the rear of the unit and then refit the lead to reboot with the cleared configuration.

This will ensure that all configuration information has been cleared.

5.1. BRIDGE OPERATION.

The bridge configuration is slightly simpler to implement than that of a router but will allow all protocols to be transferred across the link. This can lead to excessive amounts of data being transferred and cause the link to slow. This type of configuration is suited to small single site networks or leased line connections.

IP Addressing in Bridge Mode.

To minimize the amount of unnecessary network traffic sent across an ISDN link and therefore the cost of its usage, some thought should be given to the allocation of IP addresses.

On a bridged network all IP addresses must be within the same IP network. For example, if the host server is configured with an address of 129.1.1.1 and a netmask of 255.255.0.0 (standard for a class B address), all devices must be configured within the 129.1 network. If the ISDN autocall numbers are configured in this fashion too much data is likely to be unnecessarily transmitted across the link. By using a netmask this can be substantially reduced.

By using the next octet it is possible to subnet the remote sites. For example, if a remote site’s IP addresses are grouped as 129.1.10.xxx and a netmask of 255.255.255.0 is used then only data relevant to the 129.1.10 network would be sent across the ISDN link. Other sites can then be configured by selecting other values for the third octet i.e. 129.1.20, 129.1.30 etc.

This netmask would only be used in the configuration of the local bridge, the remote bridge should still maintain the 255.255.0.0 netmask to allow it access to all other devices within the same network.

The IP address and netmask would only be required when configuring the autocall numbers, not the port address. See details later on.

Bridge Setup.

Reset the unit to its default value as described previously.

Type CO and press Enter to select the Configuration menu.

Type SY and press Enter to select the System Parameters screen.

V06.010c NoName SYSTEM PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Date (15/01/1999): Unit Name : REDHILL

Time (17:44:52) : Ethernet Address: 00208A04C3E3

Day of the Week :Friday Loop Control : Enabled

Old Password :

New Password :

ReType Password : Novell Timeout : 8

Idle Timeout(sec):900

Time since Reboot: 0:40:51

-------------------------------------------------------------------------------

Enter the correct Date and Time if necessary and set the correct Day of the Week.

Enter a Unit Name that is relevant to the connection being created i.e. branch name. The names used should be unique, especially when several connections will be made.

All other fields are for information only or should be left at their default values as above.

Press Control-E to submit the changes and return to the previous menu.

Type PO and press Enter to select the Configure Ports menu. A list of available ports will then be displayed.

No. Name Type Phys. Rx(%) Tx(%) LZC(/) State

[LAN1 LAN Port 1 ETHERNET 10base2 00 00 UP ]

ISDN1 AUTO FAST/PPP 1 ISDN ISDN 00 00 DOWN

ISDN2 AUTO FAST/PPP 2 ISDN ISDN 00 00 DOWN

VOICE Voice Port VOICE Analogue On Hook

MNGR Manager Port AUTODETECT V.24 00 04 UP

Select LAN1 using the cursor keys and type ED and press Enter.

The following configuration screen is then displayed.

V06.010c REDHILL EDIT ETHERNET PORT ETSI ISDN Ok

-------------------------------------------------------------------------------

Port Number : LAN1

Port Name : LAN Port 1

Port IP Address : 129.1.101.101

Port IP Mask : 255.255.0.0

Port Hop Count : 1

Port IPX Network : 00000001

IPX Frame Type : 802.2

STP Priority : 100

Line Speed(bits/s): 10000000

-------------------------------------------------------------------------------

Enter the Port IP Address and Port IP Mask.

When operating as a bridge the IP address of both the local and remote bridges should be on the same IP network i.e. If the host system is operating with a class B address of 129.1.1.1 then both the local and remote bridge should use the 129.1 network address.

The port IP mask should be correct for the class of address that the unit is being configured for i.e. 255.255.0.0 for a class B address.

Press Control-E to submit the changes.

Press Control-L to return to the previous menu.

Type IS and press Enter to select the ISDN Configuration menu.

Type PA and press Enter to select the ISDN Parameters screen.

V06.010c REDHILL ISDN PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Network Type : Europe, including UK (ETSI)

(Service Profile Identifiers - USA Only)

SPID 1 :

Directory Number 1 :

SPID 2 :

Directory Number 2 : Aux Working (UK Only) :Disabled

Multiple Subscriber Numbers Sub Addresses

Lan MSN : Lan SA :

Voice MSN : Voice SA :

Send MSN : Disabled Send SA : Disabled

Check MSN : Disabled Check SA : Disabled

SA Type : NSAP (default)

Report Busy : Disabled

Answer Voice as Data : Disabled

Maximum Call Duration : 60 minutes

-------------------------------------------------------------------------------

Most of these parameters should be left at their default values as above. Make sure that the Network Type is set to Europe, including UK (ETSI).

The option Maximum Call Duration can be changed to prevent unwanted long calls being made if a problem occurs. This will cause the bridge to force a disconnection of the line even if data is being transferred. The call will be automatically re-established if a valid data connection is required.

It is possible for two bridges to share the same ISDN-2 line and these can be configured to only use one particular ISDN channel. This is achieved by changing the Aux Working (UK Only) option from Disabled to either B1 Only or B2 Only. This will force the bridge into using only the channel specified.

Press Control-E to submit the changes.

Type NU and press Enter to select the ISDN Numbers screen. An empty numbers list will then be displayed. This is where the ISDN phone number of the remote unit is entered.

Type AD and press Enter to add a new entry to the list.

V06.010c REDHILL EDIT ISDN NUMBER ETSI ISDN Ok

-------------------------------------------------------------------------------

Name :REMOTE

ISDN Number1 : 01737789926 Call Type1 : 64K Unrestricted

Number2 : Type2 : 64K Unrestricted

Number3 : Type3 : 64K Unrestricted

Number4 : Type4 : 64K Unrestricted

Max Circuits :1 PPP PARAMETERS

IP Address :10.0.0.1 PPP : Disabled

IP Mask :255.0.0.0 Remote IP Address : 0.0.0.0

IP Hop Count :1 Remote Unit Type : DEFAULT

IPX Network :FFFFFFFE PPP Phys : SYNC

IPX Frame Type :802.2 PPP Authentication : NONE

PPP MP : DISABLED

Learnt Endpoint Disc : NULL

Test Start Time :0800 Last Test Day/Mo:

Operating Days : Mon . Tue . Wed . Thu . Fri . Sat . Sun .

-------------------------------------------------------------------------------

Enter the Name of the remote device to be connected to. This must be the same name that will be set in the System Parameters screen on the remote bridge.

In the field ISDN Number1 enter the full ISDN number of the remote site, including the dialing code. If there are additional, backup numbers, enter those in the ISDN Number2, 3 and 4 fields.

All Call Types should be set to 64K Unrestricted.

Set Max Circuits to 1.

For bridging operation, all other parameters should be left at their default values.

Press Control-E to submit the changes.

The ISDN Numbers list will now be re-displayed with the new entry being shown as below.

V06.010c REDHILL ISDN NUMBERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Page No. 1 of 1

Name ISDN Number IP Address IPX Network

[REMOTE 01737789926 10.0.0.1 FFFFFFFE ]

EDit / ADd / DEL - modify list CAll - Make Call CANC - Clear Call

-------------------------------------------------------------------------------

Press Control-L to return to the previous menu.

Type AUTO and press Enter to select the ISDN Automatic calls menu.

Type IP and press Enter to select the IP Autocall Configuration screen. An empty address screen will now be displayed. An entry should now be created to automatically dial the remote device when data needs to be transmitted.

Type AD and press Enter to add a new entry to the list.

V06.010c REDHILL EDIT ISDN IP AUTOCALL ADDRESS ETSI ISDN Ok

-------------------------------------------------------------------------------

IP Address : 129.1.0.0

IP Mask : 255.255.0.0

Inverse : Disabled

Remote Unit : REMOTE

Bumpable : False

Idle (secs) : 15

Idle Threshold : >0

-------------------------------------------------------------------------------

When entering these addresses refer to the notes at the beginning of the bridge configuration section about IP addressing.

Enter the IP Address of the network being connected to i.e. 129.1.10.0 for a unit at the local end of a link and 129.1.0.0 for the remote unit.

Enter the appropriate IP Mask for the device being configured i.e. 255.255.255.0 for the unit at the local end of the link and 255.255.0.0 for the remote device.

Enter the Remote Unit name as specified previously when adding the ISDN number of the remote unit (see the previous step).

Set the Idle (secs) timeout to a suitable value. Too short and the bridge will be constantly dialing and dropping connections. Too long and call charges may become excessive. This timeout value is the length of time that the connection will remain up without any data being transferred. A value of between 15 and 60 seconds should be workable.

Press Control-E to submit the changes.

The IP Autocall Address screen will be redisplayed with the new entry now listed.

V06.010c REDHILL ISDN IP AUTOCALL ADDRESSES ETSI ISDN Ok

-------------------------------------------------------------------------------

Page No. 1 of 1

IP Address IP Mask Remote Unit Options

129.1.0.0 255.255.0.0 REMOTE

EDit - Edit autocall ADd - Add autocall DEL - Delete autocall CLear - Delete Al

-------------------------------------------------------------------------------

Press Control-L three times to return to the Configuration menu.

Type BR and press Enter to select the Bridge Configuration menu.

Type PA and press Enter to select the Filtering Parameters screen.

V06.010c REDHILL FILTER PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Bridging : ENABLE

Ageing Time(Sec) : 660

Learning : ENABLE

Permanent Entries : FORWARD

Filter Multicast : ENABLE

Type Matching : DISABLE

Action on Type Match : REJECT

Learn Src on Multicast: ENABLE

Learn Novell RIP/SAP : DISABLE

-------------------------------------------------------------------------------

Change the parameters to match the entries in the previous screen display. Use the spacebar to change the option as required.

Press Control-E to submit the changes.

Type STP and press Enter to select the Spanning Tree Protocol screen.

V06.010c REDHILL SPANNING TREE PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Protocol : None

Hello Time (secs) : 2

Maximum Age (secs) : 20

Bridge Priority : 32768

Forward Delay (secs): 15

-------------------------------------------------------------------------------

Set Protocol to None when using an ISDN connection, and IEEE802.1D when using a leased line.

Press Control-E to submit the changes.

Press Control-L to return to the previous menu.

Type SAVE and press Enter to permanently store the new settings.

Type QUIT and press Enter to logout.

This should now be repeated for all bridges being configured.

Testing the Connection.

A simple ping test can be done to prove that the configured link works.

From the local server, ping the local bridge to make sure that the local network can see the device.

Ping the IP address of the remote bridge to open the ISDN link and prove the WAN connection. The ISDN light on the front of the unit should light and briefly some of the ISDN utilization lights should show.

Finally ping a device at the remote site to prove an end to end connection.

These tests can also be performed in the reverse direction to confirm a bi-directional operation.

5.2. ROUTER OPERATION.

The router mode of operation requires more knowledge about the network and type of protocols being used to allow it to be configured correctly. A router will only allow certain protocol types to be transferred across the link, this does allow for more control on the type and amount of data being sent. This type of configuration is more suited to larger network installations across all forms of WAN connection.

IP Addressing in Router Mode.

On a routed network each site must be on a different IP network address. For example, if the host server is configured with an address of 129.1.1.1, then since this is a class B address the remote sites would need to have different network numbers i.e. 129.2, 131.10 etc.

Default and static routes would also need to be added to the configuration of each network device to allow them to find the remote network devices. Alternatively a routing protocol such as RIP would need to be enabled on each server to provide similar information to the rest of the network. This type of configuration is highly dependant on the operating systems involved and will not be covered in this document.

Router Setup.

Reset the unit to its default value as described previously.

Type CO and press Enter to select the Configuration menu.

Type SY and press Enter to select the System Parameters screen.

V06.010c NoName SYSTEM PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Date (15/01/1999): Unit Name : REDHILL

Time (17:44:52) : Ethernet Address: 00208A04C3E3

Day of the Week :Friday Loop Control : Enabled

Old Password :

New Password :

ReType Password : Novell Timeout : 8

Idle Timeout(sec):900

Time since Reboot: 0:40:51

-------------------------------------------------------------------------------

Enter the correct Date and Time if necessary and set the correct Day of the Week.

Enter a Unit Name that is relevant to the connection being created i.e. branch name. The names used should be unique, especially when several connections will be made.

All other fields are for information only or should be left at their default values as above.

Press Control-E to submit the changes and return to the previous menu.

Type PO and press Enter to select the Configure Ports menu. A list of available ports will then be displayed.

No. Name Type Phys. Rx(%) Tx(%) LZC(/) State

[LAN1 LAN Port 1 ETHERNET 10base2 00 00 UP ]

ISDN1 AUTO FAST/PPP 1 ISDN ISDN 00 00 DOWN

ISDN2 AUTO FAST/PPP 2 ISDN ISDN 00 00 DOWN

VOICE Voice Port VOICE Analogue On Hook

MNGR Manager Port AUTODETECT V.24 00 04 UP

Select LAN1 using the cursor keys and type ED and press Enter.

The following configuration screen is then displayed.

V06.010c REDHILL EDIT ETHERNET PORT ETSI ISDN Ok

-------------------------------------------------------------------------------

Port Number : LAN1

Port Name : LAN Port 1

Port IP Address : 129.1.101.101

Port IP Mask : 255.255.0.0

Port Hop Count : 5

Port IPX Network : 00000001

IPX Frame Type : 802.2

STP Priority : 100

Line Speed(bits/s): 10000000

-------------------------------------------------------------------------------

Enter the Port IP Address and Port IP Mask.

When operating as a router the IP address of the local and remote bridges should be on different IP network i.e. If the host system is operating with a class B address of 129.1.1.1 then the remote bridge could use the 129.2 network address or similar.

The port IP mask should be correct for the class of address that the unit is being configured for i.e. 255.255.0.0 for a class B address.

The Port Hop Count should be set to 5.

Press Control-E to submit the changes.

Press Control-L to return to the previous menu.

Type IS and press Enter to select the ISDN Configuration menu.

Type PA and press Enter to select the ISDN Parameters screen.

V06.010c REDHILL ISDN PARAMETERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Network Type : Europe, including UK (ETSI)

(Service Profile Identifiers - USA Only)

SPID 1 :

Directory Number 1 :

SPID 2 :

Directory Number 2 : Aux Working (UK Only) :Disabled

Multiple Subscriber Numbers Sub Addresses

Lan MSN : Lan SA :

Voice MSN : Voice SA :

Send MSN : Disabled Send SA : Disabled

Check MSN : Disabled Check SA : Disabled

SA Type : NSAP (default)

Report Busy : Disabled

Answer Voice as Data : Disabled

Maximum Call Duration : 60 minutes

-------------------------------------------------------------------------------

Most of these parameters should be left at their default values as above. Make sure that the Network Type is set to Europe, including UK (ETSI).

The option Maximum Call Duration can be changed to prevent unwanted long calls being made if a problem occurs. This will cause the router to force a disconnection of the line even if data is being transferred. The call will be automatically re-established if a valid data connection is required.

It is possible for two routers to share the same ISDN-2 line and these can be configured to only use one particular ISDN channel. This is achieved by changing the Aux Working (UK Only) option from Disabled to either B1 Only or B2 Only. This will force the router into using only the channel specified.

Press Control-E to submit the changes.

Type NU and press Enter to select the ISDN Numbers screen. An empty numbers list will then be displayed. This is where the ISDN phone number of the remote unit is entered.

Type AD and press Enter to add a new entry to the list.

V06.010c REDHILL EDIT ISDN NUMBER ETSI ISDN Ok

-------------------------------------------------------------------------------

Name :REMOTE

ISDN Number1 : 01737789926 Call Type1 : 64K Unrestricted

Number2 : Type2 : 64K Unrestricted

Number3 : Type3 : 64K Unrestricted

Number4 : Type4 : 64K Unrestricted

Max Circuits :1 PPP PARAMETERS

IP Address :0.0.0.0 PPP : Disabled

IP Mask :0.0.0.0 Remote IP Address : 0.0.0.0

IP Hop Count :5 Remote Unit Type : DEFAULT

IPX Network :FFFFFFFE PPP Phys : SYNC

IPX Frame Type :802.2 PPP Authentication : NONE

PPP MP : DISABLED

Learnt Endpoint Disc : NULL

Test Start Time :0800 Last Test Day/Mo:

Operating Days : Mon . Tue . Wed . Thu . Fri . Sat . Sun .

-------------------------------------------------------------------------------

Enter the Name of the remote device to be connected to. This must be the same name that will be set in the System Parameters screen on the remote router.

In the field ISDN Number1 enter the full ISDN number of the remote site, including the dialing code. If there are additional, backup numbers, enter those in the ISDN Number2, 3 and 4 fields.

All Call Types should be set to 64K Unrestricted.

Set Max Circuits to 1.

Both the IP Address and IP Mask should be set to 0.0.0.0.

Set IP Hop Count to 5.

All other parameters should remain at their default values.

Press Control-E to submit the changes. The ISDN Numbers list will now be re-displayed with the new entry being shown as below.

V06.010c REDHILL ISDN NUMBERS ETSI ISDN Ok

-------------------------------------------------------------------------------

Page No. 1 of 1

Name ISDN Number IP Address IPX Network

REMOTE 01737789926 0.0.0.0 FFFFFFFE

EDit / ADd / DEL - modify list CAll - Make Call CANC - Clear Call

-------------------------------------------------------------------------------

Press Control-L to return to the previous menu.

Type AUTO and press Enter to select the ISDN Automatic calls menu.

Type AD and press Enter to add a new entry to the list.

V06.010c REDHILL EDIT ISDN IP AUTOCALL ADDRESS ETSI ISDN Ok

-------------------------------------------------------------------------------

IP Address : 129.10.0.0

IP Mask : 255.255.0.0

Inverse : Disabled

Remote Unit : REMOTE

Bumpable : False

Idle (secs) : 15

Idle Threshold : >0

-------------------------------------------------------------------------------

When entering these addresses refer to the notes at the beginning of the router configuration section about IP addressing.

Enter the IP Address of the network being connected to i.e. 129.10.0.0 for a unit at the local end of a link and 129.1.0.0 for the remote unit.

Enter the appropriate IP Mask for the device being configured i.e. 255.255.0.0 for a class B address.

Enter the Remote Unit name as specified previously when adding the ISDN number of the remote unit (see the previous step).

Set the Idle (secs) timeout to a suitable value. Too short and the router will be constantly dialing and dropping connections. Too long and call charges may become excessive. This timeout value is the length of time that the connection will remain up without any data being transferred. A value of between 15 and 60 seconds should be workable.

Press Control-E to submit the changes.

The IP Autocall Address screen will be redisplayed with the new entry now listed.

V06.010c REDHILL ISDN IP AUTOCALL ADDRESSES ETSI ISDN Ok

-------------------------------------------------------------------------------

Page No. 1 of 1

IP Address IP Mask Remote Unit Options

129.10.0.0 255.255.0.0 REMOTE

EDit - Edit autocall ADd - Add autocall DEL - Delete autocall CLear - Delete All

-------------------------------------------------------------------------------

Press Control-L three times to return to the Configuration menu.

Type RO and press Enter to select the Router Configuration menu.

Type PA and press Enter to select the Parameters screen.

V06.010c REDHILL ROUTER OPTIONS ETSI ISDN Ok

-------------------------------------------------------------------------------

IPX ROUTING Disabled

IPX NEAREST SERVERS Exclusive List

IP ROUTING Enabled

IP ROUTING PROTOCOL RIP (RFC1058)

IP LEARN RIPs Enabled

IP ADVERTISE ROUTES All

WARNING: Changing the IPX Routing field will delete the Autocall Table

-------------------------------------------------------------------------------

Change the parameters to match the entries in the above screen display. IPX Routing should only be enabled if a Novell NetWare server is present and using the IPX protocol and data needs to be routed via the WAN link.

Press Control-E to submit the changes.

Type IP and press Enter to select the IP Routing Table screen. This will show any local network routes detected by the router but will not have any details on how to connect to the remote unit. A route to the remote network needs to be added.

Type AD and press Enter to add a new route.

V06.010c REDHILL ADD ROUTING TABLE ENTRY ETSI ISDN Ok

-------------------------------------------------------------------------------

Target : 129.10.0.0

Subnet Mask : 255.255.0.0

Router : REMOTE

Hop Count : 5

Advertise Route : Enabled

Permanent : Enabled

-------------------------------------------------------------------------------

Enter the same Target IP address as entered when creating the Autocall entry previously.

Enter the appropriate Subnet Mask for the class of IP address used.

Enter the Router name as entered when creating the ISDN Number entry.

Set Hop Count to 5.

Press Control-E to submit the changes.

The Configured IP Routes screen will be re-displayed together with the new entry just added.

V06.010c REDHILL CONFIGURED IP ROUTES ETSI ISDN Ok

-------------------------------------------------------------------------------

Page No. 1 of 1

Target Subnet Mask Router Hops Interface Flags

Default 0.0.0.0 <Direct> 16 <None> AS

192.168.101.0 255.255.255.0 Manager Port 0 Manager Port P

129.1.0.0 255.255.0.0 LAN Port 1 5 LAN Port 1 AP

129.2.0.0 255.255.0.0 129.1.5.1 2 LAN Port 1 AD

[129.10.0.0 255.255.0.0 REMOTE 5 REMOTE AP]

ADd - Add route DELete - Delete route EDit - Edit route

-------------------------------------------------------------------------------

Press Control-L to return to the previous screen.

Type SAVE and press Enter to permanently store the new settings.

Type QUIT and press Enter to logout.

This should now be repeated for all routers being configured.

Testing the Connection.

A simple ping test can be done to prove that the configured link works.

From the local server, ping the local router to make sure that the local network can see the device.

Ping the IP address of the remote router to open the ISDN link and prove the WAN connection. The ISDN light on the front of the unit should light and briefly some of the ISDN utilization lights should show.

Finally ping a device at the remote site to prove an end to end connection.

These tests can also be performed in the reverse direction to confirm a bi-directional operation.

MEC IDENTITY

3COM-511-OFFICE-CONNECT OfficeConnect Remote 511

3COM-521-OFFICE-CONNECT OfficeConnect Remote 521

3COM-531-OFFICE-CONNECT OfficeConnect Remote 531

ANNEXES
Annex A

Configuration sheets for ISDN router and bridge operation.

Return to Index
