COMMS # 62
 |
FECO: |
COMMS # 62 |
|
MODIFICATION NO: |
N/A | |
|
PRODUCT: |
CHASE IO-LINK-SOHO ISDN ROUTER | |
|
SUB-ASSEMBLY: |
N/A | |
|
ESTIMATED MAN HOURS: |
N/A | |
|
CLASS OF CHANGE: |
INFORMATIONAL | |
|
REASON FOR CHANGE: |
INTRODUCTION OF | |
|
RELATED FECO/AB |
FECO COMMS # 63, 64 & 65 |
CHASE IO-LINK-SOHO ISDN ONLY ROUTER
1. INTRODUCTION
1.1 This is to introduce the Chase IO-LINK-SOHO, is the Chase entry level ISDN Bridge Router. There are two
versions the IR and the BR.
They are the IO-LINK-SOHO-IR Internet Ready unit and the slightly more featured
IO-LINK-SOHO-BR Branch Router
1.2 The IR version is designed for up to 10 users (10 IP Addresses), whilst the BR version is
unlimited user. Both units have the same bandwidth and throughput. They look identical and
the only way to tell the difference is to enter the set-up menus and look for the IPX Set-up
facility. The IR does not have this facility, the BR does.
Note it is possible to upgrade an IR to BR specification..
1.3 The SOHO units are small, approx 4.5 in wide by 6in deep by 1.5in high; coloured black
with four LED’s in line across the front. See over.
1.4 The SOHO has one LAN interface (MIDI & MIDIX) and one WAN interface. There is also
the console connection. All connections are RJ45.
1.5 The SOHO will interface with other Chase products including the Chase IO-LINK-PRO, and
the IO-LINK-CENTRAL.
2. MEC IDENTITY
The MEC ID is
CHASE-IOLINK-SOHO-IR
and CHASE-IOLINK-SOHO-BR
3. CABLE SPECS
RJ45 connectors for the ISDN WAN, LAN & for the Console.
Console EDP Cable Type KJ.
WAN EDP Cable Type JF (MIDI)
LAN EDP Cable Type JF or JP (MIDIX).

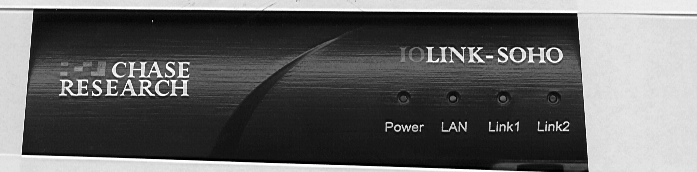

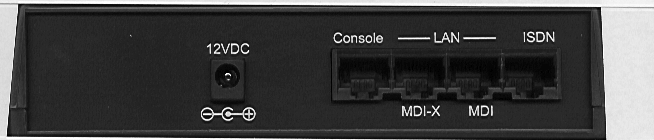

4. FRONT & REAR VIEWS
5. SOHO CONFIGURATION
5.1 Connect a VDU set to 9600 8-1-N & VT100, to the Console Port with a Cable Type KJ.
5.2 Power on the IOLINK-SOHO and view the Start-up Testing and Initialising Sequence on
the VDU Screen. At the prompt Press ENTER to access console, enter <CR>
5.3 At LOGIN MENU Select 1 Login
At Password prompt Enter BRIDGE <CR> This is case sensitive.
5.4 The MAIN MENU will be displayed
Option Value Description
1. Quick Start menu
2. Configuration menu - Define operating parameters
3. Statistics menu - Device LAN and WAN statistics
4. Diagnostics menu - Access troubleshooting tools
5. Network events menu - View network event history
6. Save configuration - Save configuration immediately
7. Logout - End operator session
8. Help - Read menu introduction
5.5 All configurations are menu driven
6. CONVENTIONS USED
6.1 The Menu System is in the form of a tree shown over.
To go forwards through the Menu System Enter the Option Number required, usually you
do not need to follow this with a <CR>.6.2 To select an option enter the Option number and enter the required input. If the input is
fixed options, then these will be displayed; just enter enough of the characters for it to be
unique. i.e. jun for june, but only d for december. For options like IP addresses they must
be entered in full. Most entries require a <CR> to terminate data input. Any entry that is not
acceptable , like an out of range IP Address, will be identified as unacceptable and you will
be invited to try again.
To toggle between two options e.g. enabled and disabled, just enter the option number,
and it will prompt "yes" to enable/disable parameter. Enter yes <CR> to complete the
toggle.6.3 To go backwards through the Menu System use the TAB key.
To return to the Main Menu Enter =6.4 At the end of each sequence it is advisable to save the configuration , From the Main
Menu select the option Save configuration. When completed Configuration saved
will be displayed at the bottom of the screen.
On completion of all set-ups Save configuration and also carry out a soft reset, from
the Main Menu select Diagnostics and then Soft reset.6.5 A Soft reset can be used to reset some minor problems.
6.6 NOTE, there may be some variation in menus and the menu numbers between
different units, which is why the set-up procedures do not give the numbers,
but do give the option description.
7. REQUIREMENTS
Before a SOHO can be
configured the following must be available:-
Network diagram of the complete network
Name (preferrably geographical ie.HULL) of both Routers.
IP Address and Subnet Mask of both Routers.
ISDN number of both Routers.
Type of ISDN line.
For Optional Customer Preference settings:-
Activity and usage times.
PAP, CHAP Passwords.
Source/Destination IP Addresses of the frames.
8. DEFAULT
For a new IOLINK-SOHO
it is advisable to reset to the factory default settings:
From the Main Menu Select Diagnostics
From the Diagnostics Menu Select Full Reset.
After a Full Reset you will be prompted for the Terminal Type, Enter vt100 <CR>

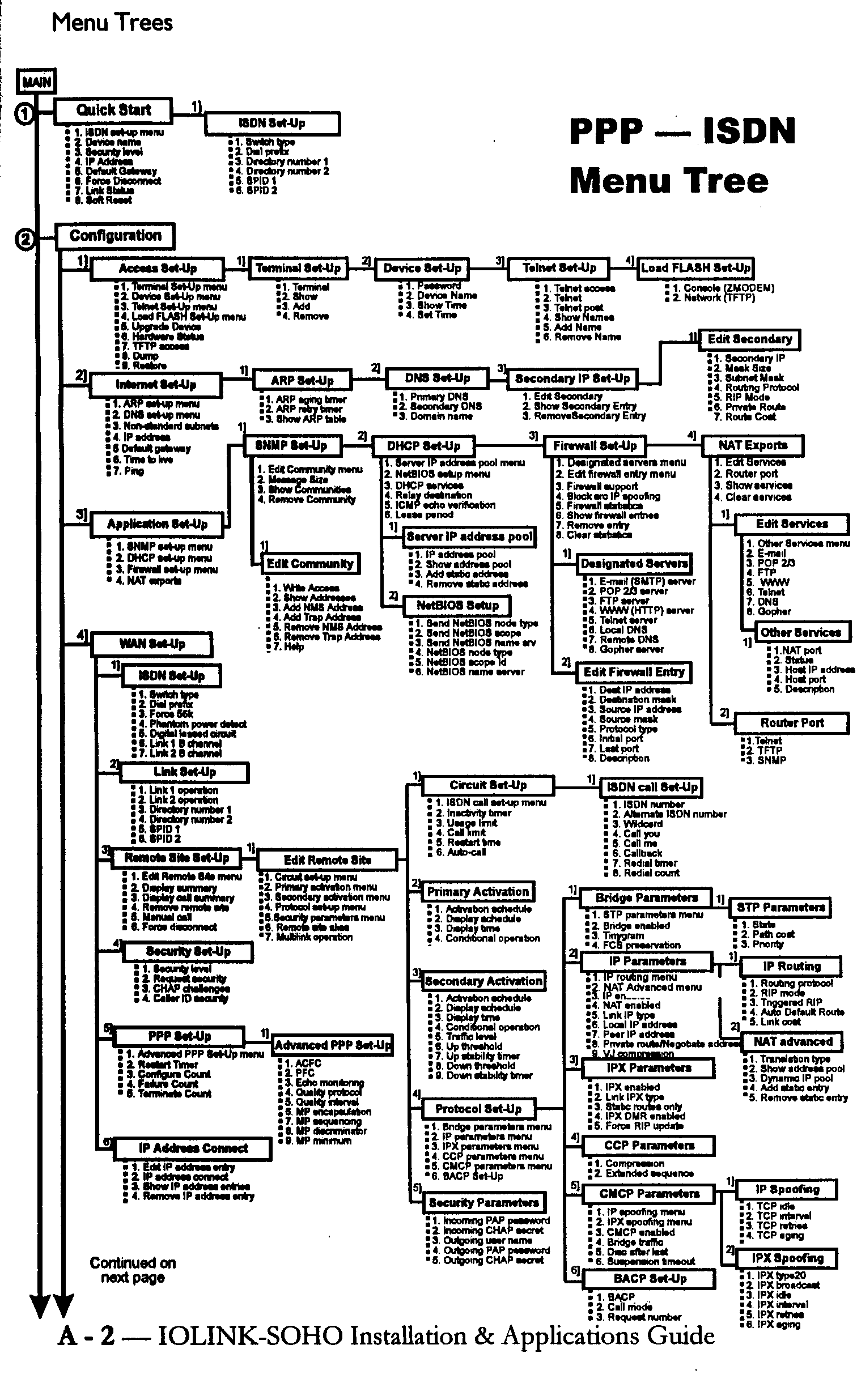

9. PART OF MENU TREE

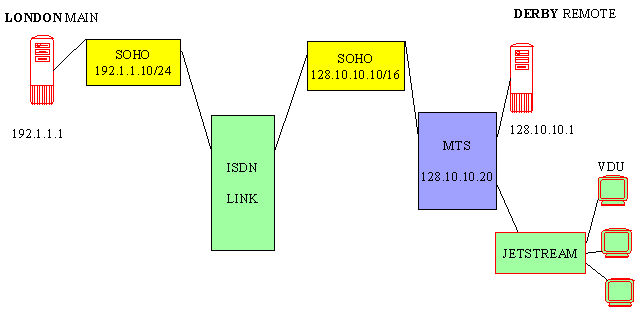

10. A typical network is shown at the end of
the FECO, and it can be easier to identify sites by
their
geographical names.
The
convention used is to nominate one site as the MAIN and the other as the REMOTE.
There is a
difference in the configurations.
Each site
will probably be different, but a sample configuration is detailed below.
11. TYPICAL SET-UP FOR THE NETWORK DIAGRAM SHOWN is detailed below
MAIN SOHO (LONDON Site )Set-up
11.1 It is always best to reset the factory default settings before a new configuration is set.
If the unit has been set-up before, you may wish to record the settings before wiping it.
TO RESET TO FACTORY SETTINGS:
From the Main Menu Select Diagnostics
From the Diagnostics Menu Select Full Reset.
After a Full Reset you will be prompted for the Terminal Type, Enter vt100 <CR>
11.2 The MAIN MENU
Option Value Description
1. Quick Start menu
2. Configuration menu - Define operating parameters
3. Statistics menu - Device LAN and WAN statistics
4. Diagnostics menu - Access troubleshooting tools
5. Network events menu - View network event history
6. Save configuration - Save configuration immediately
7. Logout - End operator session
8. Help - Read menu introduction
11.3 Set Local Parameters
from the Main Menu select Quick start
select Device name and Enter name e.g. LONDON <CR>
select IP address and Enter the address of the unit e.g. 192.1.1.10 <CR>
when prompted to Enter the subnet mask e.g. 24 <CR>Examples of subnet masks are:-
8 255.0.0.0
16 255.255.0.0
24 255.255.255.0
Type in = to return to the Main menu
11.4 ISDN set-up
from Main Menu select Configuration
select WAN set-up
select Remote site set-up
select Remote site summary can be used to show existing set-ups
Note ISDN_TEMPLATE ID = 41
select Edit remote site Enter name of remote site e.g. DERBY <CR>
Enter: Template Id or alias ( or none ) 41 <CR>
Ensure that this name is now displayed in the Remote site alias
select Remote site type and set it to spoofing
select Connection set-up
select ISDN call set-up
select ISDN number and Enter the ISDN number of the remote site.
TAB and TAB again
11.5 Optional setting Customer Usage restricting number and/or length of calls.
from Edit remote circuit set-up Menu
select Activation set-up
select Usage set-up
set usage and/or call limit, and restart time.
TAB and TAB again
11.6 Disable Bridge and IPX
from Edit Remote Site 1 Menu select Protocol set-up
select Bridge parameters
select Bridge enabled and toggle it to disabled
select IPX parameters (BR only)
select IPX enabled and toggle it to disabled
TAB and TAB and TAB again
from Remote Site Set Up Menu
select Remote site summary and check all the entries are correct.
11.7 Remote Protocol set-up
from Edit Remote Site Protocol Set-Up
select IP parameters
select IP routing
select Triggered RIP and set it to link_up_only
Type in = to return to the Main menu
11.8 select Configuration
from WAN Set-Up Menu
select IP address connect
select IP address connect and toggle it to enabled.
select Edit IP address entry and Enter the IP address of the remote
router e.g. 128.10.10.10
when prompted to Enter the subnet mask e.g. 16 <CR>
12. Optional Security
Before implementing Optional Security, test the link thoroughly.
13. Optional Security setup
13.1 To set PAP or CHAP only set items required.
Default PAP password and CHAP secret set to BRIDGE.
from WAN Set-Up menu select Security set-up
select Default parameters
select Incoming PAP password and enter DERBY ( remote site name )
select Outgoing user name and enter LONDON ( local site name )
select Outgoing PAP password and enter LONDON (local site name )
13.2 from Security Set Up Menu
select Security level and enter PAP
select Request security and enter always
select CHAP challenges and enter once
select Caller ID security and toggle it to disabledType in = to return to the Main menu
select Save configuration
13.3 Note changes made here will not take effect until the link is disabled and
re-enabled
13.4 After implementing Optional Security, test the link thoroughly.
14. Optional Firewall setup
14.1 Only set items required.
14.2 from Configuration menu select Applications set-up
select Firewall set-up
select WAN firewall set-up enter Remote site number or alias e.g. DERBY
select Firewall and enter inbound, outbound, both, or disabled14.3 from Remote Site Firewall Menu
select Designated servers and the following menu will be displayedOption Value Description
1. E-mail (SMTP) server none - Specify E-Mail server IP address
2. POP 2/3 server none - Specify E-Mail server IP address
3. FTP server none - Specify FTP server IP address
4. WWW (HTTP) server none - Specify WWW server IP address
5. Telnet server none - Specify Telnet server IP address
6. Local DNS none - Specify local DNS IP address
7. Remote DNS none - Specify remote DNS IP address
8. Secondary local DNS none - Specify local DNS IP address
9. Secondary remote DNS none - Specify remote DNS IP addressSet the required parameters
14.4 TAB and TAB again
14.5 from Firewall set-up menu select LAN firewall setup
select Firewall and enter inbound, outbound, both, or disabled14.6 from Firewall LAN menu select Edit firewall entry
and the following menu will be displayed, showing sample entriesOption Value Description
1. Destination address 128.10.10.1 - Destination IP address of frame
2. Destination mask 255.255.0.0 - Network mask for dest address
3. Source address 192.1.1.1 - Source IP address of frame
4. Source mask 255.255.255.0 - Network mask for source address
5. Protocol type TCP - Allow Specific protocol types
6. Source port 65535 - Source port range to allow
7. Destination port 65535 - Destination port range to allow.
8. Description - Describe the entry
9. Entry direction - Direction this entry applies to14.7 Set the required parameters
14.8 Note changes made here might not take effect until the link is disabled
and re-enabled
14.9 Type in = to return to the Main menu
select Save configuration
15. REMOTE SOHO (DERBY Site) Set-up
15.1 TO RESET TO FACTORY SETTINGS:
From the Main Menu Select Diagnostics
From the Diagnostics Menu Select Full Reset.
After a Full Reset you will be prompted for the Terminal Type, Enter vt100 <CR>
15.2 The MAIN MENU
Option Value Description
1. Quick Start menu
2. Configuration menu - Define operating parameters
3. Statistics menu - Device LAN and WAN statistics
4. Diagnostics menu - Access troubleshooting tools
5. Network events menu - View network event history
6. Save configuration - Save configuration immediately
7. Logout - End operator session
8. Help - Read menu introduction
15.3 Set Local Parameters
from the Main Menu select Quick start
select Device name and Enter name e.g. DERBY <CR>
select IP address and Enter the address of the unit e.g. 128.10.10.0 <CR>
when prompted to Enter the subnet mask e.g. 16 <CR>
15.4 Type in = to return to the Main menu
15.5 ISDN set-up
from Main Menu select Configuration
select WAN set-up
select Remote site set-up
select Remote site summary can be used to show existing set-ups
Note ISDN_TEMPLATE ID = 41
select Edit remote site Enter name of remote site e.g. LONDON <CR>
Ensure that this name is now displayed in the Remote site alias
select Remote site type and set it to spoofing
select Connection set-up
select ISDN call set-up
select ISDN number and Enter the ISDN number of the Remote Site.
15.6 TAB and TAB again
15.7 Optional setting
Customer Usage restricting number or length of calls.
from Activation set-up Menu
select Usage set-up
set usage and/or call limit, and restart time.
15.8 TAB and TAB again
15.9 Disable Bridge and IPX
from Edit Remote Site 1 Menu select Protocol set-up
select Bridge parameters
select Bridge enabled and toggle it to disabled
select IPX parameters (BR only)
select IPX enabled and toggle it to disabled
TAB and TAB and TAB again
from Remote Site Set Up Menu
select Remote site summary and check all the entries are correct.
15.10 Remote Protocol set-up
from Edit Remote Site Protocol Set-Up
select IP parameters
select IP routing
select Triggered RIP and set it to link_up_only
15.11 Type in = to return to the Main menu
15.12 from WAN Set-Up Menu
select IP address connect
select IP address connect and toggle it to enabled.
select Edit IP address entry and Enter the IP address of the Main Site
remote ( LONDON ) router e.g. 192.1.1.10
16. Optional Security
16.1 Before implementing Optional Security, test the link thoroughly.
17. Optional Security setup
17.1 To set PAP or CHAP only set items required.
Default PAP password and CHAP secret set to BRIDGE.17.2 from WAN Set-Up menu select Security set-up
select Default parameters
select Outgoing user name and enter DERBY ( local site name )
select Outgoing PAP password and enter DERBY (local site name )
select Incoming PAP password and enter LONDON ( remote site name )
select Outgoing CHAP secret and enter security17.3 TAB and TAB again
17.4 from Security Set Up Menu
select Security level and enter PAP
select Request security and enter always
select CHAP challenges and enter once
17.5 Type in = to return to the Main menu
select Save configuration
17.6 Note changes made here will not take effect until the link is disabled and
re-enabled.17.7 After implementing Optional Security, test the link thoroughly.
18. Optional Firewall setup.
See para 14
Only set items required.
