COMMS # 15

	FECO:	COMMS # 15/1
	MODIFICATION No:	N/A
	PRODUCT:	GANDALF KMUX
	SUB-ASSEMBLY:	N/A
	ESTIMATED MAN HOURS:	N/A
	CLASS OF CHANGE:	INFORMATIONAL
	REASON FOR CHANGE:	CHANGE TO THE ORIGINAL SET UPS

        Reason for change

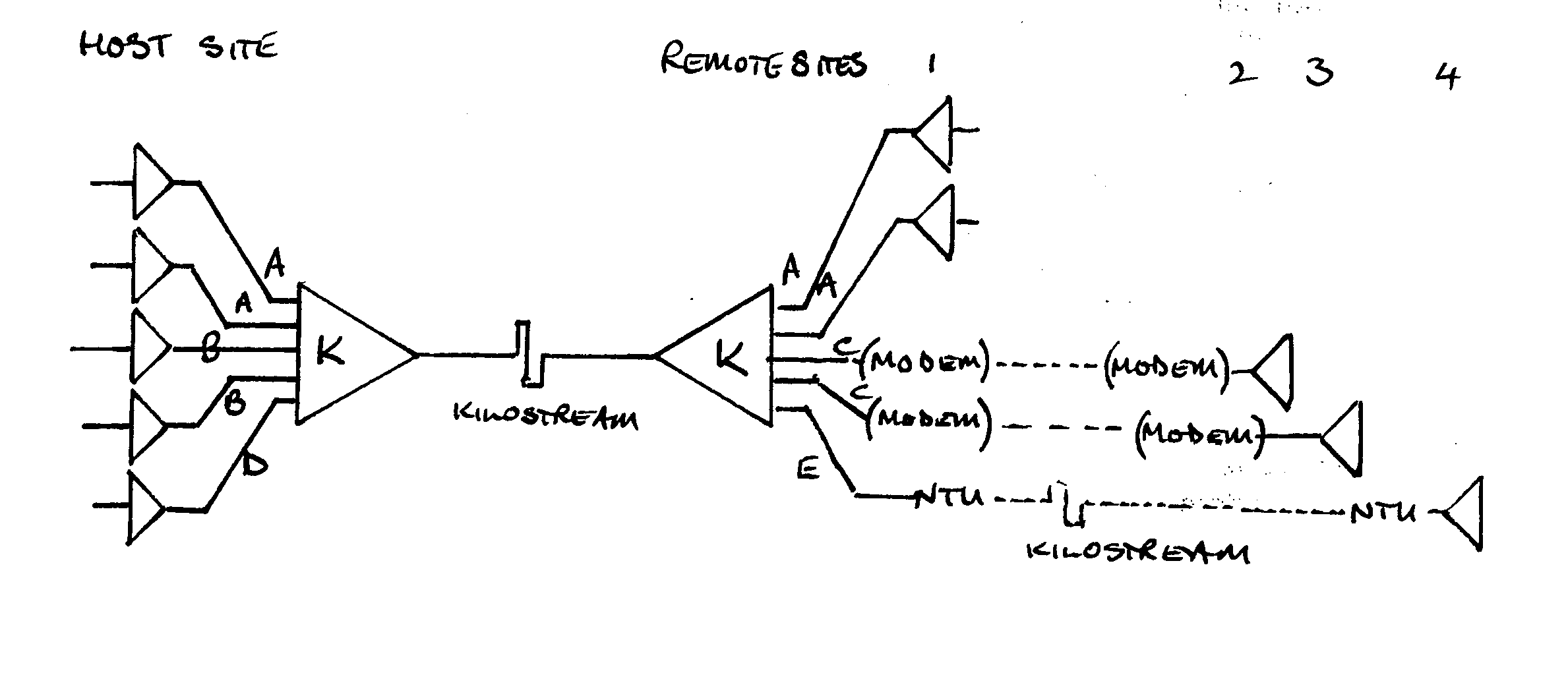

1. This feco amends the original feco comms #15, by including the configuration for connecting a kilostream
        onward link to the kmux.

        Change

2. Delete original paragraph 2, and refer to new paragraph 2.1.,

        On the next page.

3. The original paragraph 6.5 should be deleted and replaced by the new paragraph 6.5.1, on the next page.

4. When onward linking to a kilostream unit or to a dm49 modem, then on the standard gandalf v24 link cable; pins
        18 and 21 must be disconnected.

        (tech serv ref 97/22)

6.5.1 configure group 1 subscriber channel x menu displayed

        Set channel parameters depending on channel type a, b,

        C, d or e.

        Channel a b c d e

        Mode (header chip) dte dte dce dte dce

        Interface type rs232c rs232c rs232c rs232c rs232c

        Transmitter clock source linked linked linked linked remote

        Receiver clock source system remote external remote external

        Remote transmitter

        Clock source linked

        Remote receiver

        Clock source system

        Speed 9600 9600 9600 9600 9600

        Are any control signals

        To be passed through no no no no no

        Are any remote control

        Signals to be passed

        Through no no no no no

        RTS/CTS delay no no no no no

        Remote RTS/CTS delay no no no no no

        Enable/disable all channels in use to be enabled

        All channels not in use to be disabled
