FECO: | COMMS # 37 |
| MODIFICATION No: | ||
| PRODUCT: | GANDALF/MICROCOM DESKPORTE MODEM | |
| SUB-ASSEMBLY | N/A | |
| ESTIMATED MAN HOURS | N/A | |
| CLASS OF CHANGE: | INFORMATIONAL | |
| REASON FOR CHANGE: | INTRODUCTION OF GANDALF DESKPORTE MODEM |
FECO COMMS # 37
|
FECO: | COMMS # 37 |
| MODIFICATION No: | ||
| PRODUCT: | GANDALF/MICROCOM DESKPORTE MODEM | |
| SUB-ASSEMBLY | N/A | |
| ESTIMATED MAN HOURS | N/A | |
| CLASS OF CHANGE: | INFORMATIONAL | |
| REASON FOR CHANGE: | INTRODUCTION OF GANDALF DESKPORTE MODEM |
1. Reason for change
A new modem has been introduced to complement the gandalf qx4232, it is the gandal microcom deskporte.
2. Change
The gandalf microcom deskporte range of
modems are dial up modems with 2 wire leased line capability. It
does not have 4 wire leased line capability.
Options include:14.4 or 19.2 or 28.8 capability
Synchronous input version
Parallel input version
The version edp is taking is the deskporte
fast ep28.8, which has 28.8, synchronous and parallel
capabilities.

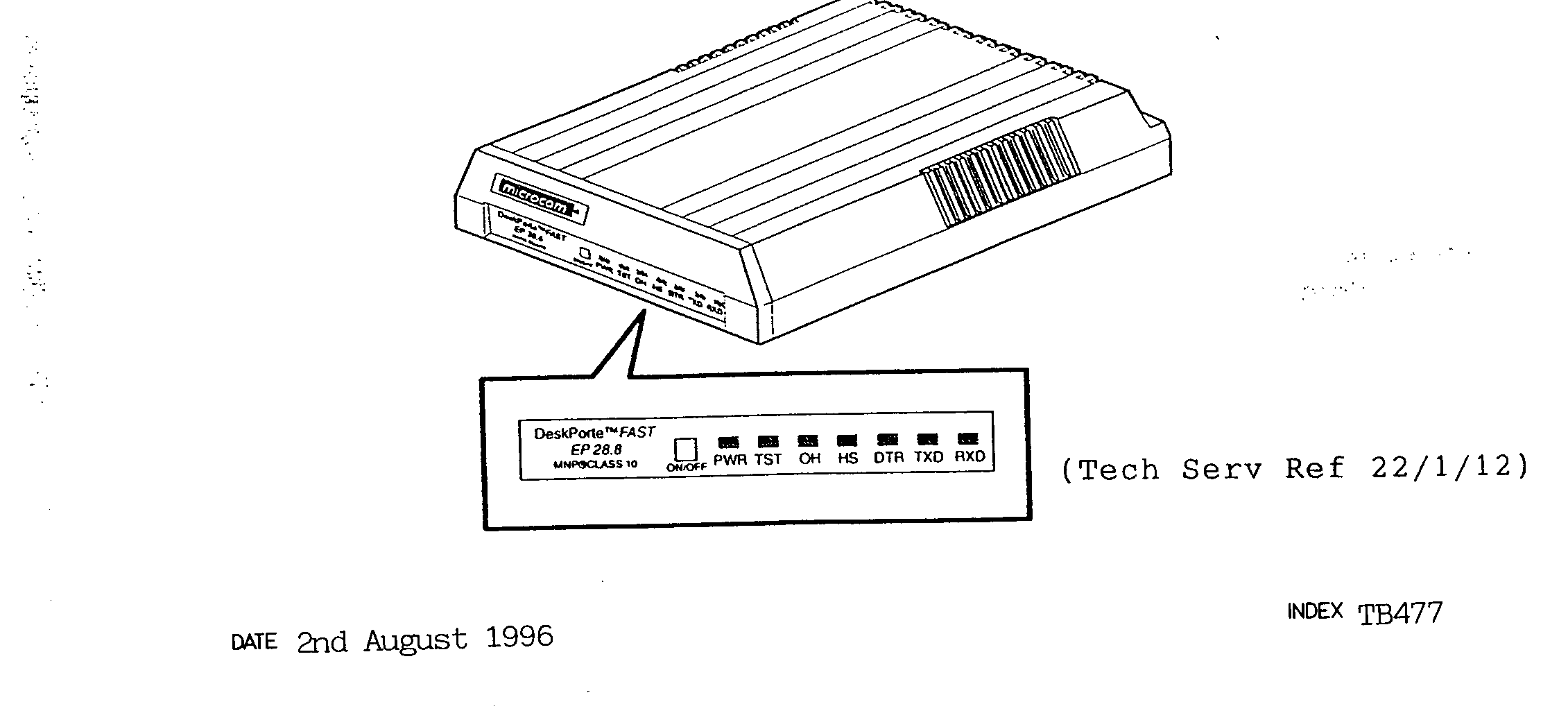

3. Front panel
(tech serv ref 22/1/12)

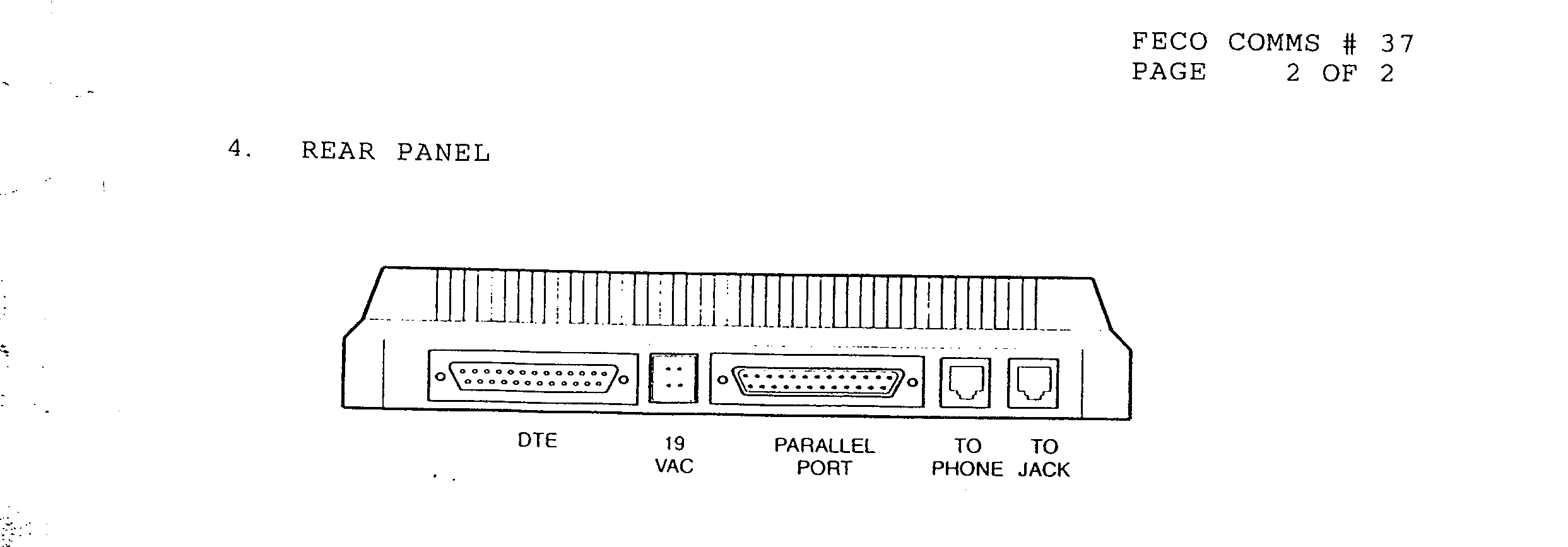

4. Rear panel
5. Specifications
It measures approx 11.5 x 6.5 x 2 inches and is beige in colour.
Protocols include:
Mnp class 2, 3, 4, 5 and 10
Bell 103, bell 212a, v21, v22, v22bis, v23, v32bis, v42, vfast, v42bis.
6. Configuring dial-up modem
6.1 spring out front bezel to reveal the dip switches. Set
All the dip switches down, i.e. closed.
Replace the front bezel.
6.2 connect a vdu to the modem dte connector.
6.3 power up the modem.
6.4 enter at/s to ensure communication, and to display
Current settings. Make a note if necessary.
6.5 enter at&f to default.
6.6 enter at&lo\x1q1\q4&w
Where &lo enables switched line - disables leased line.
\x1 processes and passes on xon/xoff flow control.
Q1 disables output result codes.
\q4 enables unidirectional xon/xoff flow control.
&w stores configuration
6.7 enter at\s to display and check new settings.
6.8 the modem is now set up. Switch off power and remove VDU.
7. Servicing
Servicing is by replacement.
8. Mec description
The mec identity is gan-deskporte.
9. Testing
Test for function.
10. Recording action
Complete all relevant documentation.
