FECO WYSE # 9

	FECO:	WYSE # 9
	MODIFICATION No:	N/A
	PRODUCT:	WYSE 55-ES WITH PARALLEL PRINTER PORT
	SUB-ASSEMBLY	N/A
	ESTIMATED MAN HOURS	N/A
	CLASS OF CHANGE:	INFORMATIONAL
	REASON FOR CHANGE:	TO INTRODUCE THE WYSE 55 ES WHICH HAS AN EXTRA (PARALLEL) PORT

1.     Change

WYSE have changed the WYSE-55-es by adding a parallel port to it. In all other respects it looks identical to it's predecessor. The same keyboard can be used for either version.

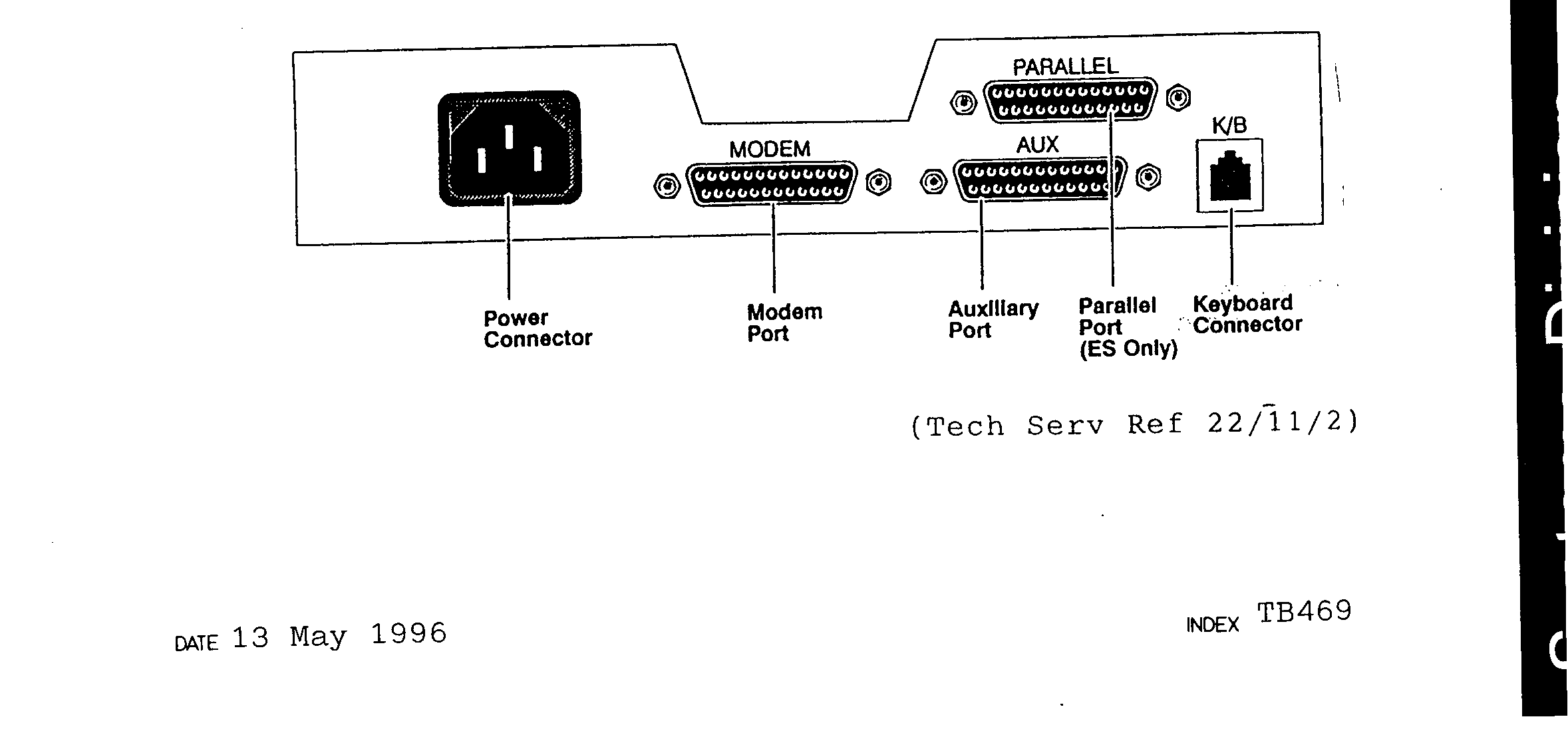

The new back panel is shown below.

This feco highlights the differences between the models to those listed in the original feco WYSE # 6/1.

2.     Mec description

Old style WYSE-55-es

New style with parallel port WYSE-55-esp

(tech serv ref 22/11/2)

3.     Standard setting for the WYSE-55-esp as follows:-

F1 DISP F2 GENRL

COLUMNS - 80PERSONALITY -ADDS A2

LINES -24SCRL -JUMP

PAGE -1 X LINESRCV CR -CR

CURSOR -BLINK BLKENHANCE -ON

DISPLAY -DARKAUTOSCRL -ON

AUTOPAGE -OFFMONITOR -OFF

SCRN SAVER -ONSTATUS LINE -ON

CHAR CELL -10 X 15WRAP EOL -ON

80 X 132 CLR -OFFRECOGNISE DEL -OFF

F3 KEYBOARD F4 COMM

KEYCLICK -OFFCOMM -FDX

KEYLOCK -CAPSMDM RC HSK -NONE

LANGUAGE -UKAUX RC HSK -NONE

REPEAT -ONXMT LIM -NONE

CORNER KEY -FUNCTMDM RC HSK LEVEL -192

KEY CODE -ASCIISEND ACK -ON

ANSWERBACK MODE -OFF

MDM XMT HSK -NONE

AUX SMT HSK -NONE

F5 PORTS F6 MISC

MDM BAUD RATE -9600WPRT INTENSITY -NORMAL

AUX BAUD RATE -9600BLK END -US/CR

HOST PORT -MODEM PORTMARGIN BELL -OFF

MDM DATA/PARITY -8/NONEWPRT REV -ON

AUX DATA/PARITY -NONEATTRIBUTE -PAGE

PRINTER -***BELL VOLUME -1

MDM STOP BITS -1WPRT UNDRLN -OFF

AUX STOP BITS -1MULTIPLE PAGE - OFF

NULLS SUPPRESS -OFFREST/ACT TIMES -NONE

*** = SERIAL OR PARALLEL OR NONE

F7 ANSI F8 ANSI 2

CHAR SET -MULTINATIONALPRINT -ASCII

CURSOR KEYS -NORMALSEND - ALL

FEATURE LOCK -OFFXFER TERM -EOS

CHAR MODE -MULTINATIONALPRINT AREA -PAGE

KEYPAD -NUMERICSEND AREA -PAGE

FKEY LOCK -OFFAUTO ANSWERBACK -OFF

ANSI ID -VT 100PRINT TERM -NONE

DEL -DEL/CANSEND TERM -NONE

NEWLINE -OFFKEYS -TYPEWRITER

4.     cut-in

The cut in point for the WYSE-55-esp was april 1995 And is identifiable by having a serial number beginning "ox31". All existing mec descriptions are being changed to be correct. The WYSE part number is also changed to 901237-16.

5.     Servicing

Complete WYSE-55-esp's in external customers must only be permanently swapped out on a like for like basis.

6.     Spares

The internal PCB is different so must only be changed on a like for like basis.

The internal differences are:-

* different components on PCB

* parallel port connected via ribbon cable to PCB.

* eprom - 95 rev 1.7 251352-08.

* transformer not foil wrapped.

7.     parallel printer cable specification - cable type as

WYSE-55-esp parallel portprinter
