FECO BC # 2/2

	FECO:	BC # 2/2
	MODIFICATION No:	N/A

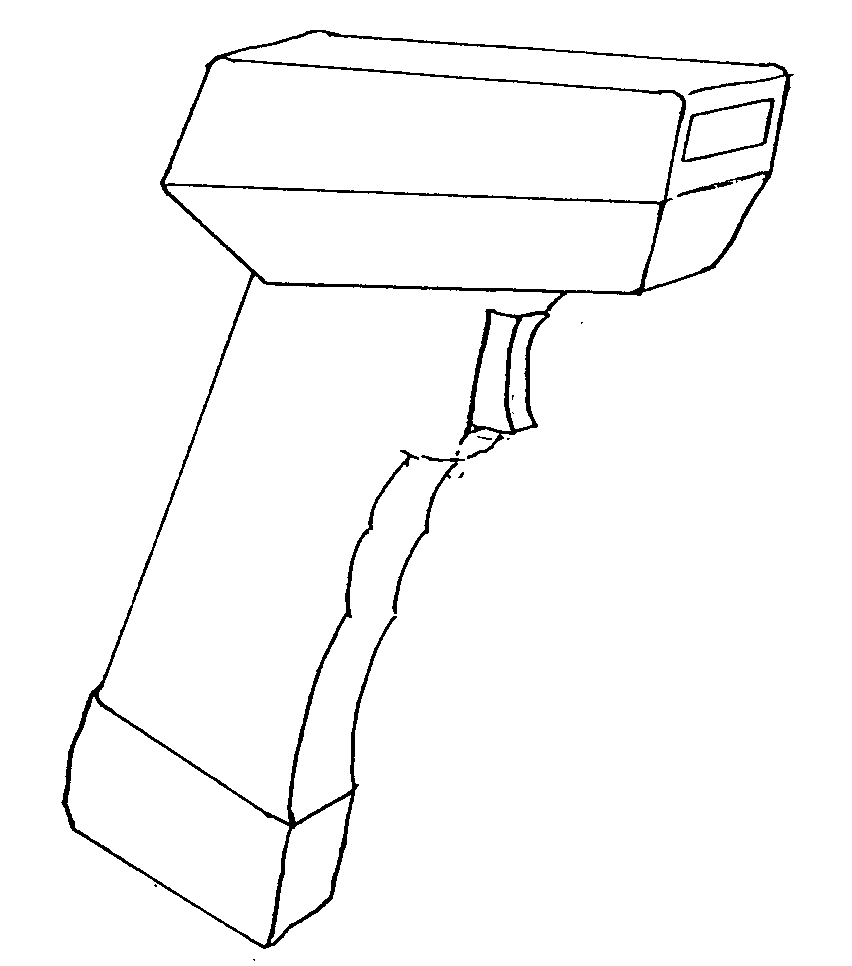

	PRODUCT:	KTP 5312 SCANNER
	SUB-ASSEMBLY	N/A
	ESTIMATED MAN HOURS	N/A
	CLASS OF CHANGE:	DURING INSTALLATION/REPLACING VDU TYPE
	REASON FOR CHANGE:	TO CLARIFY CABLING REQUIREMENTS FOR WYSE 55 VDU

    * This is additional to Feco # BC2 *

    To connect a KTP 5312 scanner to the AUX port of a WYSE 55 VDU use the adapter cable. Enable AUX port
    as described in Feco WYSE # 6/1.

    To used multiple scanners connected to AUX port of a VDU via a 'black box' port splitter use the following
    cable types:

    WYSE 55 AUX to master port - cable type em

    Adds VDU AUX to master port - cable type af

    Ktp 5312 scanner to port 1/2/3 - cable type af with male end

    Replaced by female end

    Flat bed scanner to port 1/2/3 - cable type ap

    (tech services ref 29/3/1)
