TALLY # 97
 |
FECO: |
TALLY # 97 |
|
MODIFICATION NO: |
N/A | |
|
PRODUCT: |
TALLY T9116D LASER PRINTER | |
|
SUB-ASSEMBLY: |
N/A | |
|
ESTIMATED MAN HOURS: |
N/A | |
|
CLASS OF CHANGE: |
INFORMATIONAL | |
|
REASON FOR CHANGE: |
INTRODUCTION OF PRINTER | |
|
RELATED FECO/AB |
N/A |
INTRODUCTION OF THE TALLY T9116D LASER PRINTER
1. INTRODUCTION
This is to introduce the TALLY T9116 Laser Printer. It is a 600 x 600 dpi mono laser
printer producing up to 16 pages per minute. The printer can be used as an office
printer or as a personal printer.

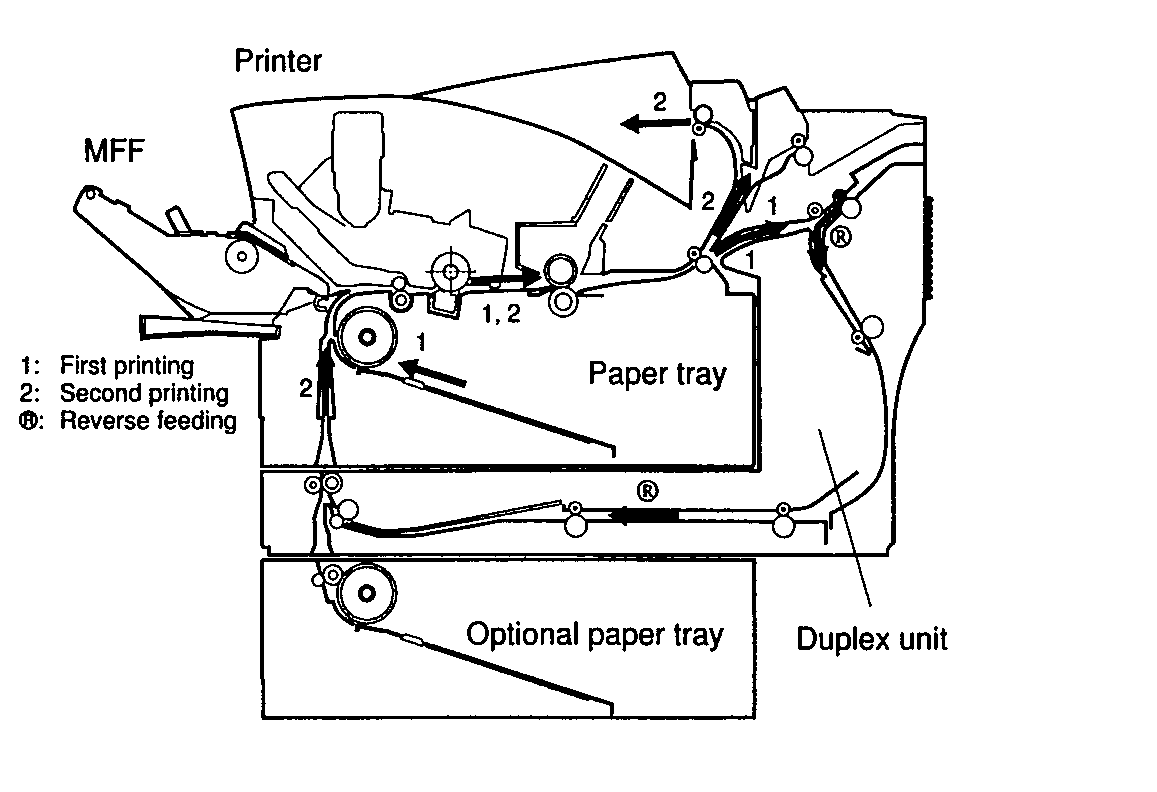

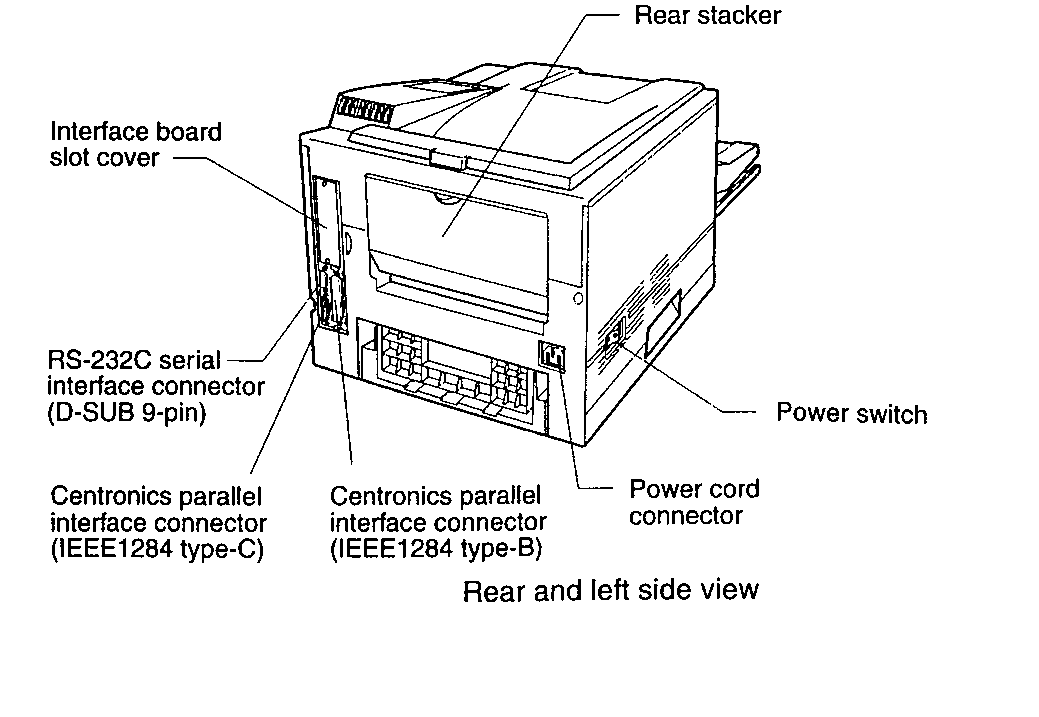

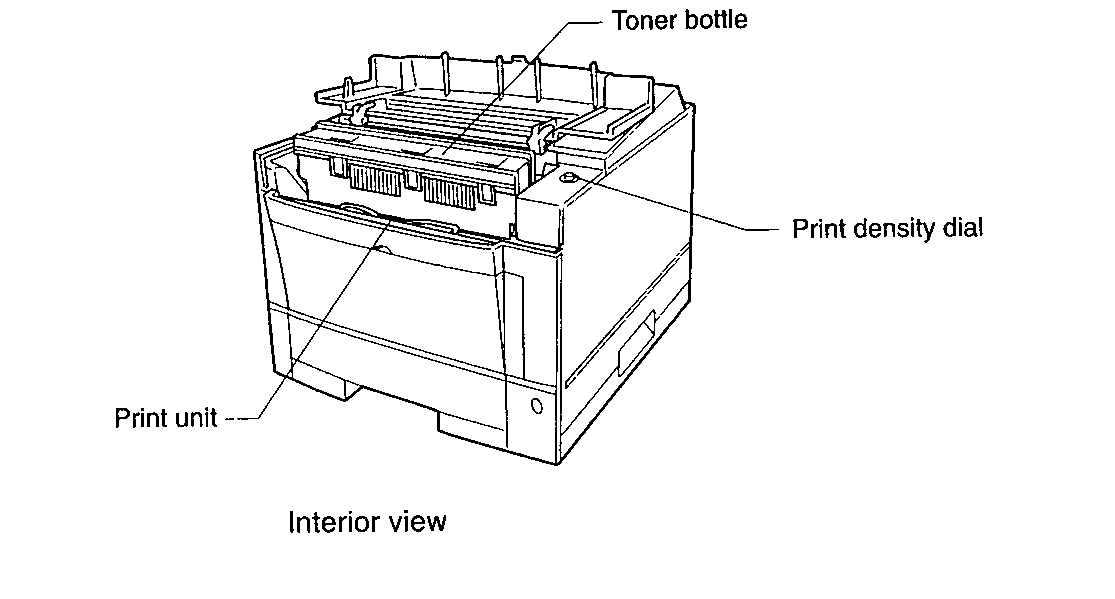

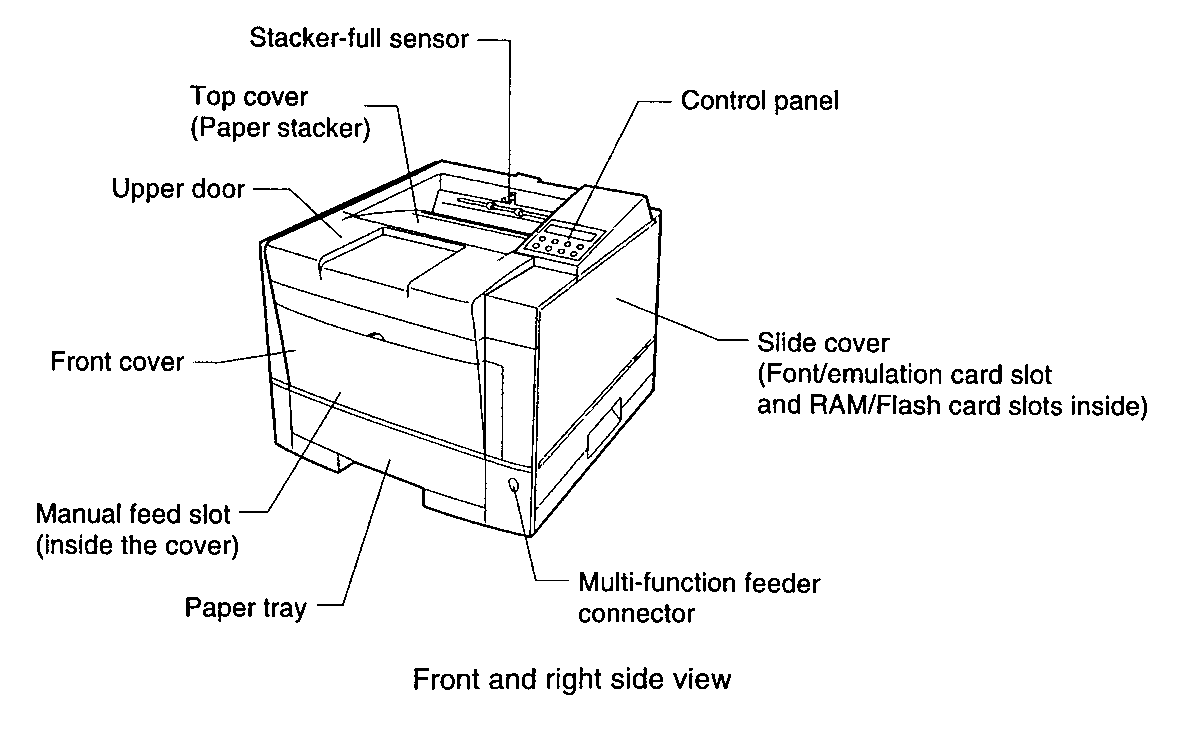

2. VIEWS
3. MEC IDENTITY
The MEC Identity is TALLY-T9116D printer
TALLY 9116D-DUPLEX duplex unit
4. SPECIFICATION
Printer Type T9116 LASER Processor 125 MHz 64 BIT Risc Printer life 500,000 pages/5 years Monthly Workload Up to 35,000 pages per month Resolution 600 x 600dpi (Up to 4,800 x 600 with EET) Print speed Up to 16 pages per minute Emulation's Std - PCL 6 (including PCL5e) Opt - PostScript Level 11 compatible / IBM / EPSON Auto Emulation Switching Memory Std - 4Mb Opt - 4, 8, 16, 32 Mb Max - 68 Mb (2 slots available) Permanent Storage Area Opt - 4Mb flash SIMM for permanent storage of downloadable forms and logos etc. Fonts Std - 1 Bit-map, 114 Scaleable Opt - 35 Scaleable PostScript level 2 fonts Opt: Scaleable Bar Code and OCR-A/OCR-B Paper Handling Input Std - Manual feed & 550 sheet Universal cassette Opt multi-purpose feeder Opt-Duplex Unit must have extra 8MB memory (100 sheets or 30 envelopes) Opt - 500 sheet 2nd Universal cassette Paper Handling Output Std - Face down 250 sheets Std - Face up 20 sheets via straight paper path Paper Sizes A4, Letter, A5, Executive, Legal (separate tray required) Manual/Multi-purpose Feeder Min - 100mmx 148mm Max - 216mm x 356mm Envelopes COM - 10, Monarch, C5, DL, B5 Print Media Weight Paper Bin - Normal paper 60 - 90 gm² Manual/Multi-Purpose Feeder - 60 - 105gm² Other Media Envelopes, transparencies, Label (test prior to purchase) Interface 2 x Bi Directional parallel (standard) Serial RS232/C (D-SUB 9-pin connector) Non Standard Interface LocalTalk (Apple Talk compatible) (optional) Ethernet (NetWare/TCP/IP, 10BaseT & 10Base2) Ethernet (EtherTalk, 10BaseT only) Automatic Interface Switching Printer Utility Programs Mark Vision (Win 95) (Win NT 4.0) PPMENU (Dos, Win 3.1/3.11, Win 95) Warm up time Less than 65 seconds First Print time Less than 30 seconds Acoustic level 48 dB(A) printing Background noise level sleep mode Weight 17Kg Dimensions 377mm (w) x 385mm (d) x 289mm (h) Input Voltage 220V to 240V +6%/-10%, 50/60Hz +2/-4 Hz 120V + 0r - 10%, 50/60Hz +2/4 Hz (optional models) Power Consumption <500W printing Operating <30W sleep mode Power Save Mode Energy star compliant Ozone <.1 ppm Operating Environment 10 to +35°C (temperature) 20% to 80% (non condensing) relative humidity. MTBF 4000 hours )powered on for 8 hours per day in recommended duty cycle) MTTR 30 mins Consumables Toner: 5,000 Pages each (5% coverage, sold in packs of 2) Eco-mode available Print Unit: 40,000 pages (5% coverage) Options Memory SIMMs (4, 8, 16, 32 Mb) * 2nd 500 sheet Universal Cassette * Legal Cassette * Multi-purpose feeder * 2nd Parallel Interface * Ethernet Interfaces *Local Talk * PostScript Level 11 * IBM/Epson emulation * 4Mb Flash SIMM for forms storage etc * Barcode SIMM* Duplex unit
5. INSTALLATION
5.1 Preparing Print Unit
5.1.1 This printer is shipped with the
print unit mounted and protective materials attached. Be sure to remove the
two protective materials from the print unit. This operation is possible with the print
unit mounted. First
prepare and install the following two components:
5.1.2 The toner bottle first installed
after you purchase the printer or a new print unit will last about 2500 printed
pages under the condition of 5% coverage on A4 paper. The succeeding toner bottles last
about 5000
printed pages each.
5.1.3 NOTE: Do not touch any connector
contacts and corona wires to avoid possible electrostatic damage to
the printer.
5.1.4 Be careful with the print unit's
drum (the green surface). The drum is easily damaged by contamination or
by exposure to light for more than three minutes. Follow these guidelines:
5.1.5 For full details refer to the Operators manual.
5.2 Installing the Toner Bottle
5.2.1 Open the upper door. Lift the milled portions the front left and right of the upper door to open it.
5.2.2 Remove the protective materials
from the print unit. Remove protective sheet. Pull clear tape until its blue
end is visible and remove it. Remove two restraint cushions.
5.2.3 Remove the toner bottle from its bag.
5.2.4 Shake the toner bottle by moving it back and forth in a horizontal motion several times.
5.2.5 Remove the plastic seal form the
toner bottle. Gently pull off the seal being careful not to spill toner. Handle
to seal carefully to avoid staining your hands or clothes.

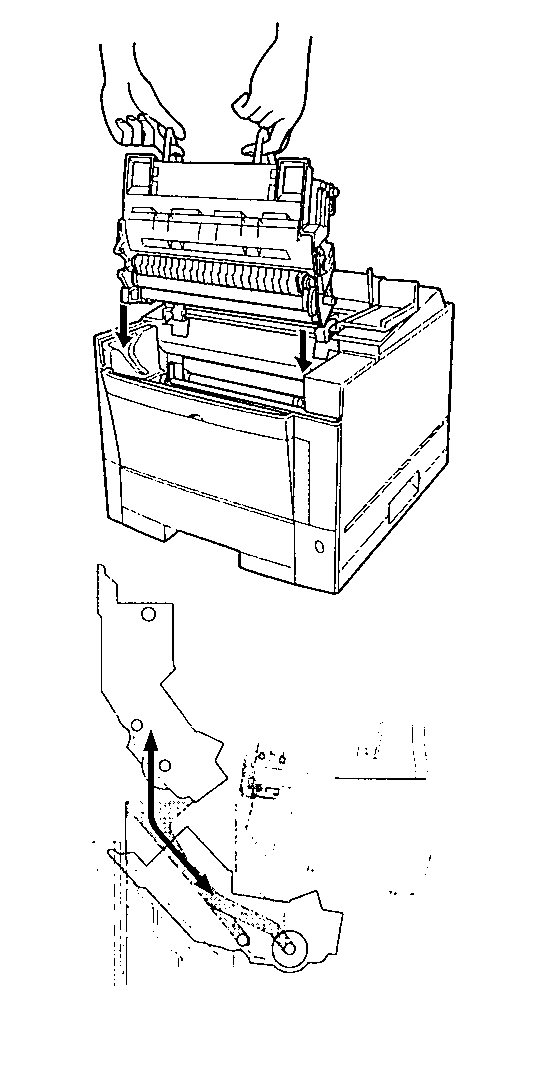

5.2.6 Install toner bottle. Slide both projecting guides of the toner bottle into the grooves of the print unit.
5.2.7 NOTE
If you have installed the toner bottle, do not remove it from the print unit until it is
empty. This could causes
toner to spill into printer.
5.2.8 Lock the toner bottle. Push the toner
bottle forward until it clicks into place. (The bottle stands nearly
upright when installed correctly.)
5.2.9 Close the printer's upper door. Press
down firmly on the front portion of the upper door and make sure the
upper
door is locked completely.
5.2.10 NOTE
For more information refer to the Operator's Manual Chapter 5.

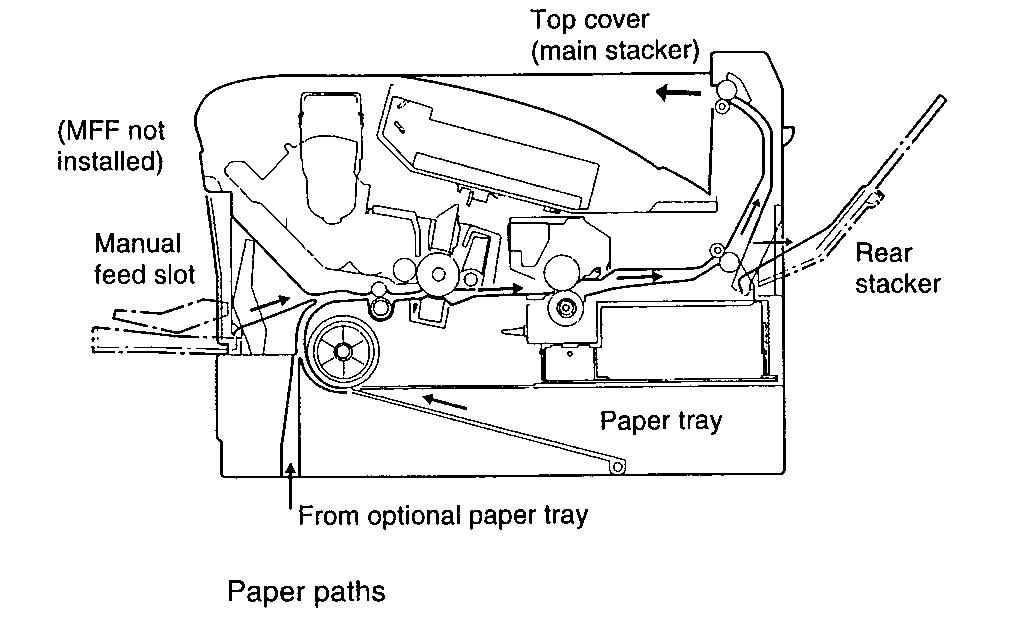

5.3. Paper Path & Voltage Check
5.3.1 Remove the adhesive tape which
secures the rear stacker. Open the rear stacker and make sure the paper
guide is pushed down in the locked position. Close the rear stacker.
5.3.2 NOTE:
If the paper guide is not in the locked position, the printer will not work.
5.3.3 Check the manufacture's nameplate lists the voltage rating of 220 to 240 volts.
5.3.4 If connecting the printer to a parallel
port of a computer system then you may need to install the relevant
printer driver from the floppies supplied. Refer to the Operator's manual for details.

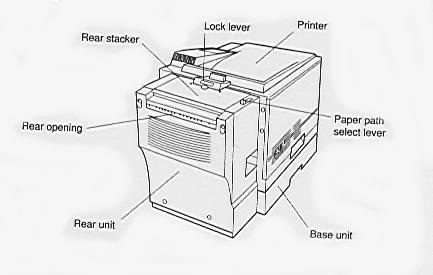

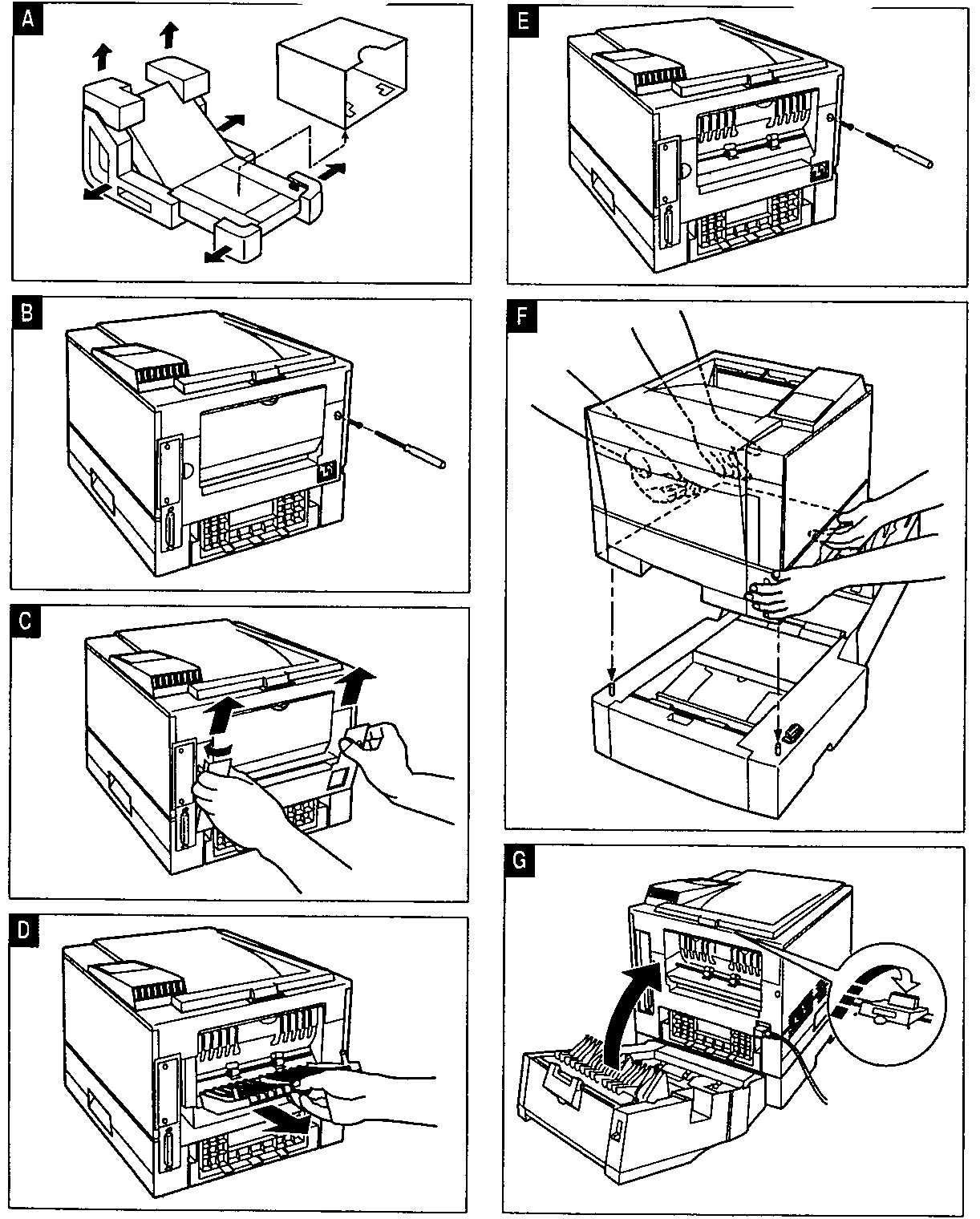

5.4 Installing the Duplex Unit
5.5 If installing any other options refer to the operators manual

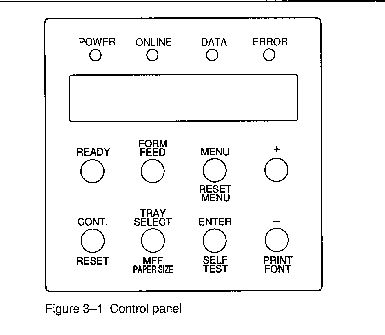

6. CONTROL PANEL FUNCTIONS
6.1 Pressing the button briefly
Except for the READY button, the following buttons are also valid when the printer is offline.
Button (top label) Function
READY
Switches the printer between online and offline.
FORM FEED
Performs a form feed to print the remaining data.
CONT.
Clears a recoverable error and continues printing.
TRAY SELECT Puts the
printer in tray select mode which allows you to select
The paper tray to be used.
MENU Puts the printer in setup mode.
ENTER
Selects the displayed option as the printer default. This button and the two buttons
below are valid in setup, tray select, or MFF paper size mode.
+
Displays the next option.
-
Displays the previous option
6.2 Pressing and holding down the button for five or more seconds
The following buttons are also valid when the printer is offline.
Button (bottom label) Function
RESET Clears the buffer of any print data and puts the printer through its initialization sequence.
RESET MENU Besides the above reset function, resets all printer operation options to their
factory default
values except interface settings (parallel menu, serial menu, and network menu).
MFF PAPER SIZE Puts the printer in MFF paper size mode, which allows you to select the
paper size to
be used.
SELF TEST Selects the self test menu, which lists printer operation options currently selected.
PRINT FONT Selects the print font menu, which lists the fonts currently available.
6.3 To Print Data Remaining in the Buffer
An indication of data remaining in the buffer is the DATA lamp steadily on.
Pressing the FORM FEED button will print this data, & clear the buffer.
6.4 To Clear an ERROR Condition to Continue Printing
Press the CONT button
6.5 To Clear the Buffer and Re initialize the Printer
Press and hold the RESET button for more than five seconds
6.6 TEST PRINTS
Turn the printer on. The printer initializes the mechanism and will then become ready. The
message display
indicates < < < INITIALIZE > > > then
WARMING UP then
READY
6.6.1 Status Print
Press the READY button to put the printer off line. The ONLINE lamp should extinguish.
Press the SELF TEST button for more than five seconds.
The message display indicates PCL CONFIG PAGE.
Press the ENTER button.
The message display indicates SELF TEST and DATA lamp flashes.

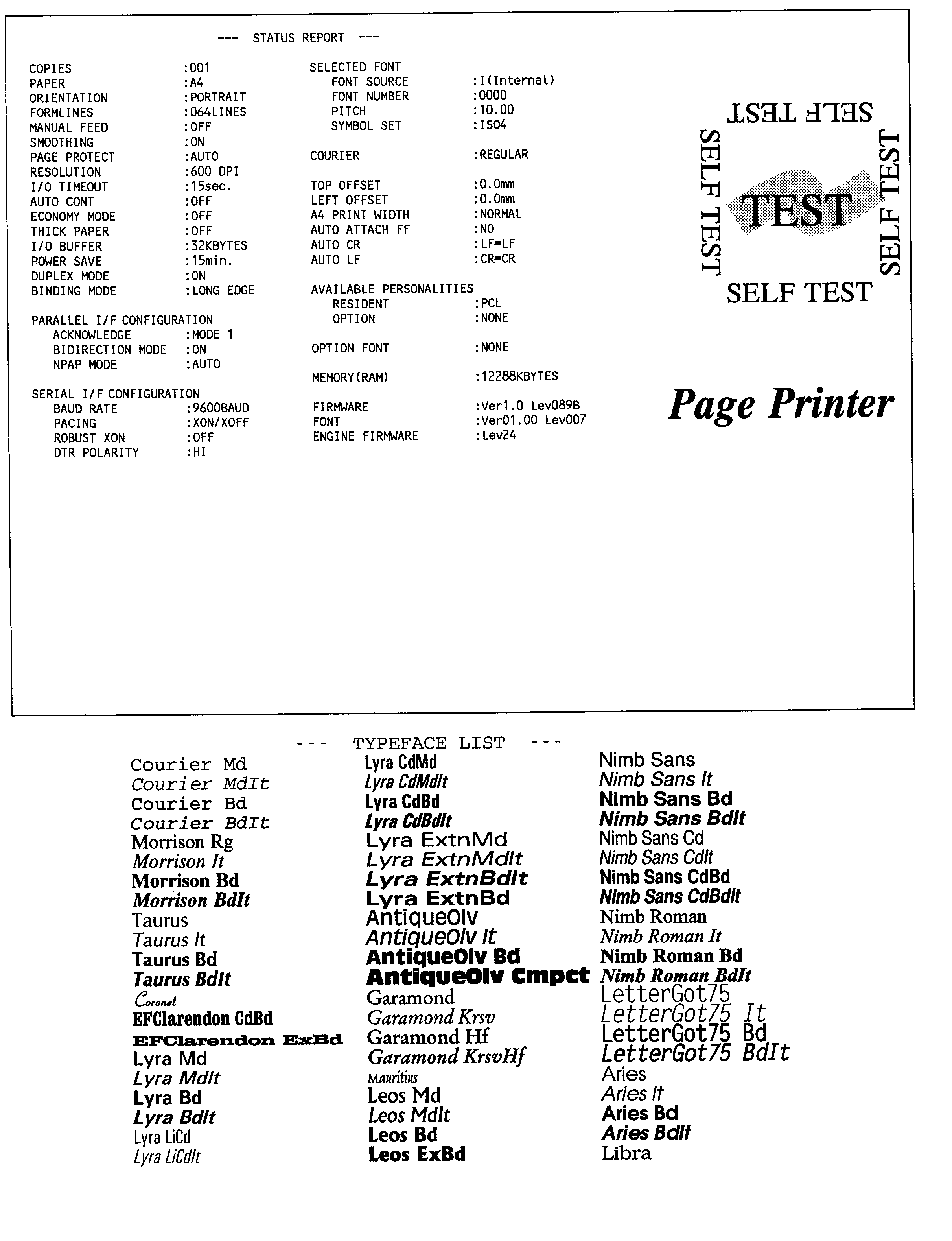

A status report page is printed, similar to that shown below.
6.6.2 Font Print
Press the READY button to put the printer off line
Press the PRINT FONT button for more than five seconds
The message display indicates PCL FONT LIST
Select the desired emulation by means of the + and - buttons
Press the ENTER button
The message display indicates PRINT FONT and the DATA lamp flashes
A font report page is printed
7. EDP SETUPS
7.1 Press the MENU button to put the printer into menu mode.
Navigate the menu using the MENU & ENTER buttons, and sub menus using
The + and - buttons.
7.2 To reset to factory default press the RESET MENU for more than five seconds.
7.3 Review the existing settings on the status print see para 6.6.1
7.4 Reset parameters to the
EDP settings shown below.
These are for a T9116D with a duplex unit.
If no duplex unit fitted set Duplex mode to OFF.
BEWARE Problems with incorrect ISDN operation have been reported when Robust XON
has been incorrectly set to ON.
8. INTERIOR ACCESS
8.1 Switch off all power and remove the power cord and all data lines.
8.2 Most of the covers are
held by machine screws and/or plastic sprung clips. These can easily be broken if
not handled gently and correctly. Trying to force the panels off will only result in
damage to the fittings, and
then the panels will not seat correctly. NOTE!!! The cover and panel screws are NOT
ALL THE SAME, and
must be replaced in the correct positions.
8.3 To remove the Paper Tray pull it out.
8.4 To access the interior.
8.4.1 Open the upper door, remove the
complete Print Unit by raising the two green handles and lifting the Print
Unit out. Store in a safe dark place.
8.4.2 To remove the RHS Panel. Release
the visible spring clip at the front by pushing it down; half way back
ease the panel out from under the top cover( (hidden bracket), and then release the rear
visible spring clip
at the rear by pushing it down.
8.4.3 To remove the LHS Panel. Release
the hidden spring clip half way back by gently easing the clip down;
then release the almost hidden spring clip at the rear by gently pushing the clip inwards.
8.4.4 To remove
the complete Top Cover with the Control Panel, release the spring clips
at the LHS; they are
square shaped and located halfway back and to the rear; then raise the Top Cover, GENTLY!
The Control
Panel is connected by two short ribbon cables which must be disconnected first. They are
easily removed
but are rather fiddley to replace.
9. CONNECTORS
AND CABLE SPECIFICATIONS
The Serial and Parallel Ports can both be connected simultaneously to systems, the first
system to send a
print to the printer will lock out the other port for the duration of the print.
9.1 SERIAL PORT
9 pin D Type Female
NOTE! These pinouts are NOT standard.
A short interface cable must be used to present a standard 25 pin D Type presentation.
This cable is EDP
Cable Type AW.
9.2 PARALLEL PORT
36 pin Centronics Type
1 /DATASTROBE
2 DATABIT1
3 DATABIT2
4 DATABIT3
5 DATABIT4
6 DATABIT5
7 DATABIT6
8 DATABIT7
9 DATABIT8
10 /ACKNLG
11 BUSY
12 PAPER END
13 SELECT
14 AUTOFEED
15 Not used
16 SIGNAL GROUND
17 CHASSIS GROUND
18 Not used
19/30 SIGNAL GROUND
31 INPUT PRIME
32 FAULT
33 Not used
34 Not used
35 +5v
36 SELECT-IN

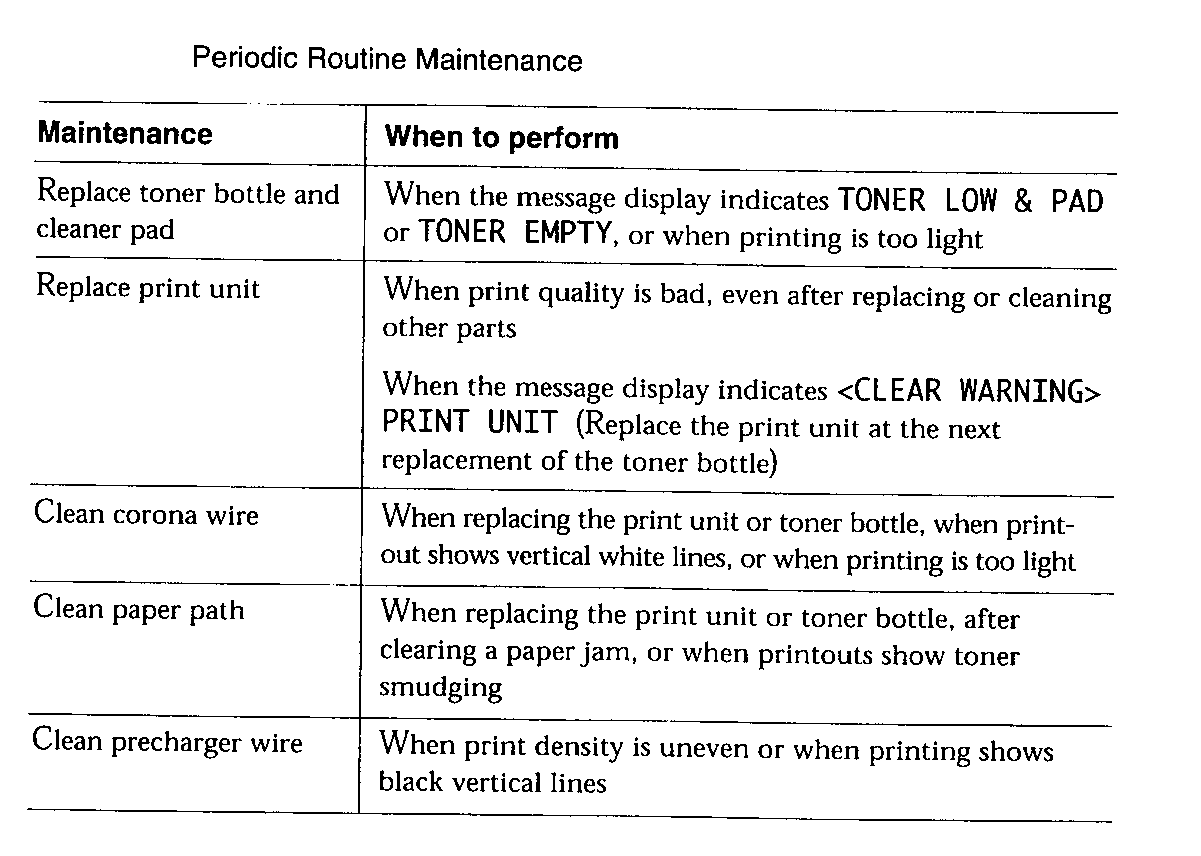

10. MAINTENANCE.
10.1 For full details of servicing and maintenance refer to the Operators mannual.
10.2 Periodic maintenance.

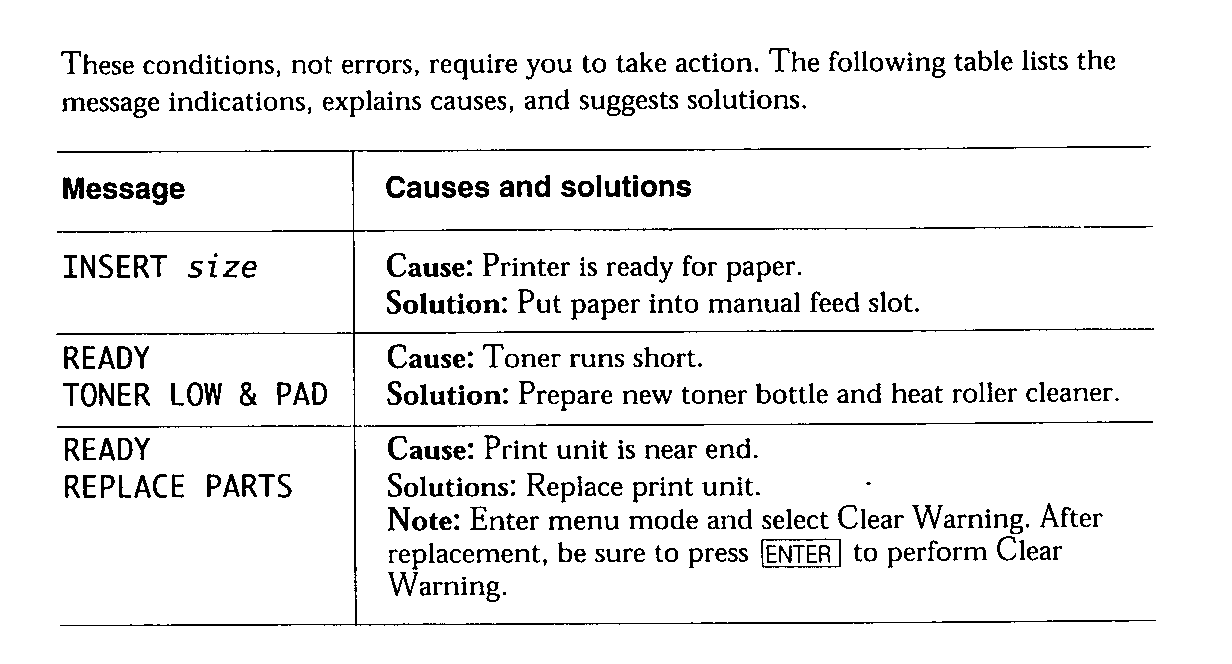

10.3 Warning Messages
This printer counts he number of the printed sheets to estimate the life of the
consumables (print unit). The
printer indicates the following warning message when and after the count reaches a
predetermined value.
READY
REPLACE PARTS
When the warning message is indicated, press the READY button to put the
printer offline and press the
MENU button to enter menu mode. The Clear Warning message appears, Indicating the
expired unit by an
asterisk. When the print unit is expired, the message is:
<CLEAR WARNING>
PRINT UNIT*
However, depending on the print quality, you may not have to replace print unit because
you may suit be
satisfied with the print quality.
10.4 Resetting the Print Unit Counter
10.4.1 Perform this operation whenever you have replaced the
print unit, or the printer continues displaying the
warning message REPLACE PARTS.
10.4.2 Make sure the printer is offline. If necessary, press the READY
button to put the printer offline. The ONLINE
indicator is off with the REPLACE PARTS messages displayed.
10.4.3 Press the MENU button to put the printer in menu
mode. The message changes to SETUP MENU PAGE
FORMAT MENU.
10.4.4 Press the MENU button repeatedly until the lower message changes to CLEAR WARNING.
10.4.5 Press the ENTER button to select this function.
The message changes to <CLEAR WARNING> PRINT UNIT*. The asterisk means that
the print unit is
expired.
10.4.6 Press the ENTER button again to perform the
function. The asterisk disappears from the message,
indicting the counter is rest
10.4.7 Press the ready button to return the printer online.
The ONLINE indicator lights up without the REPLACE
PARTS message.
10.4.8 Important After the rest operation, check the
status report to make sure that the Warning Message is
cleared.

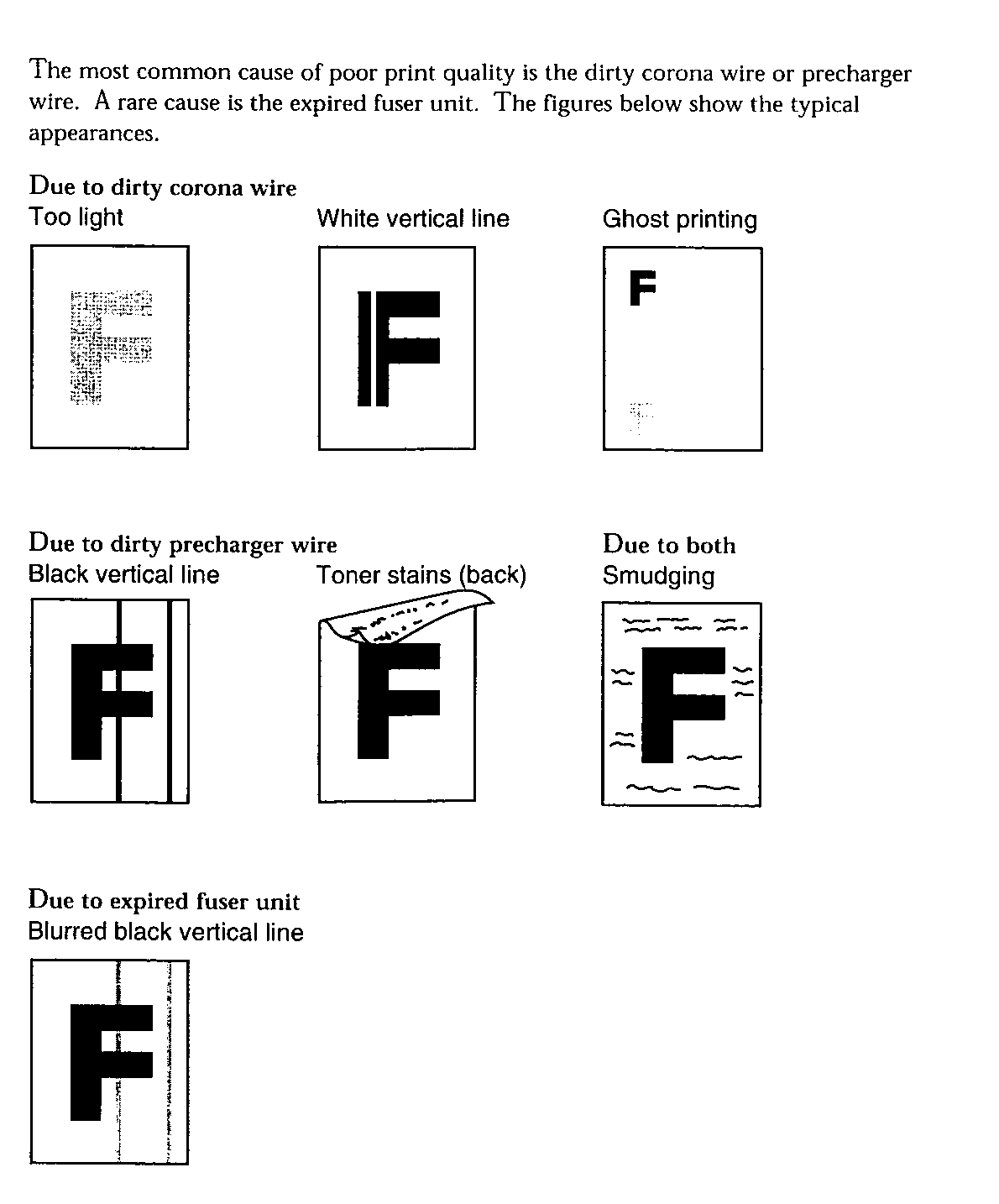

10.5 Copy Quality

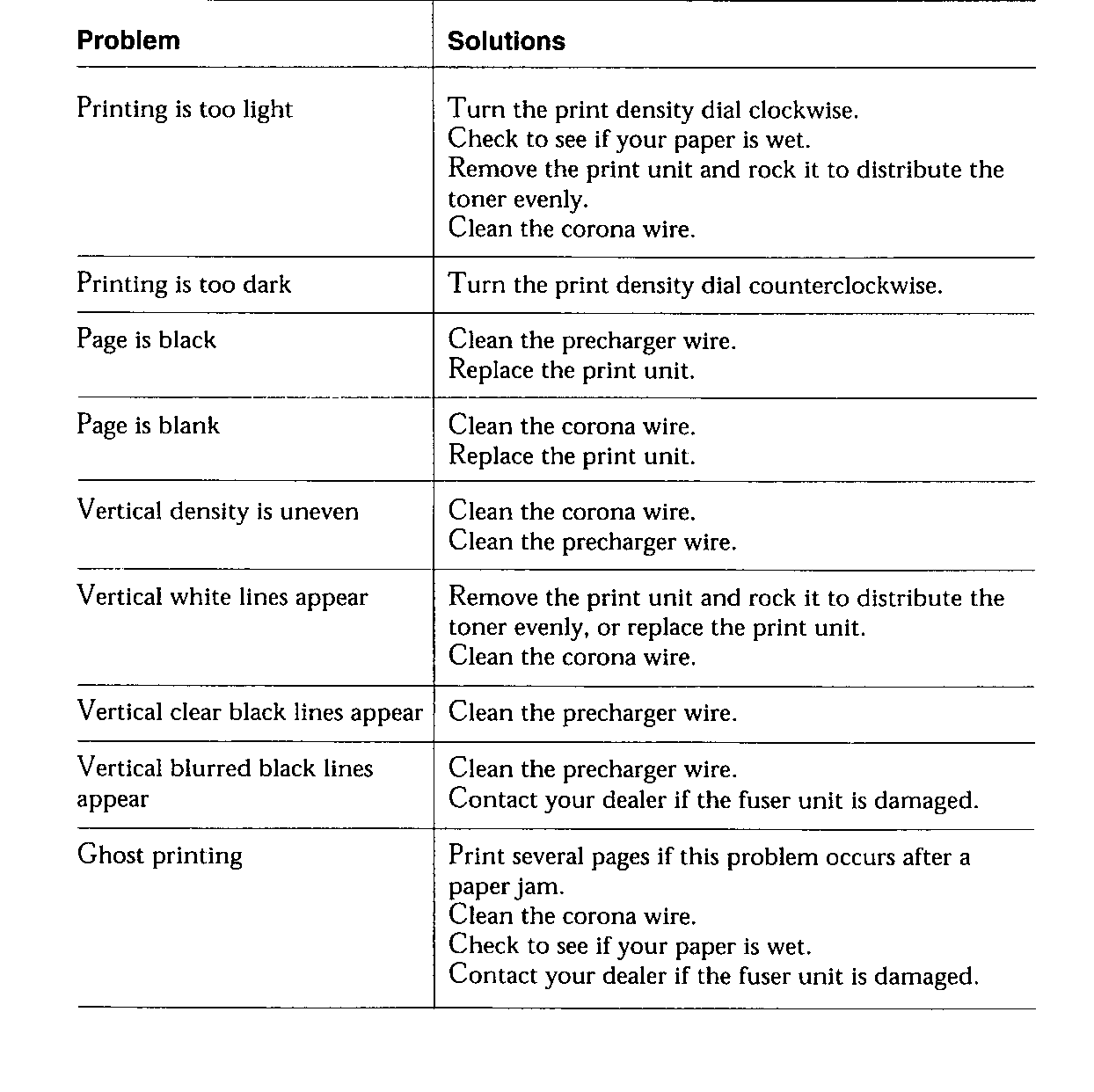

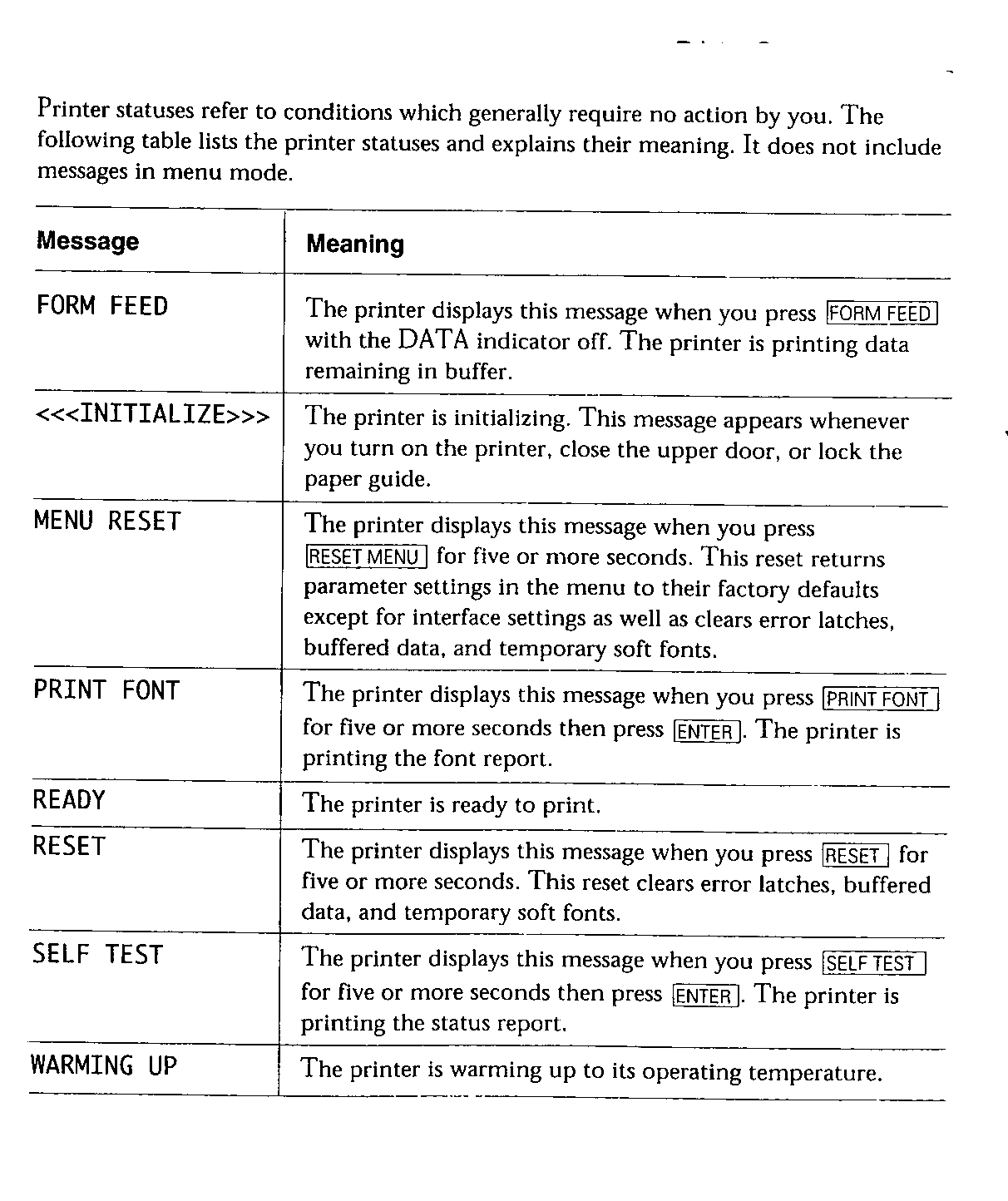

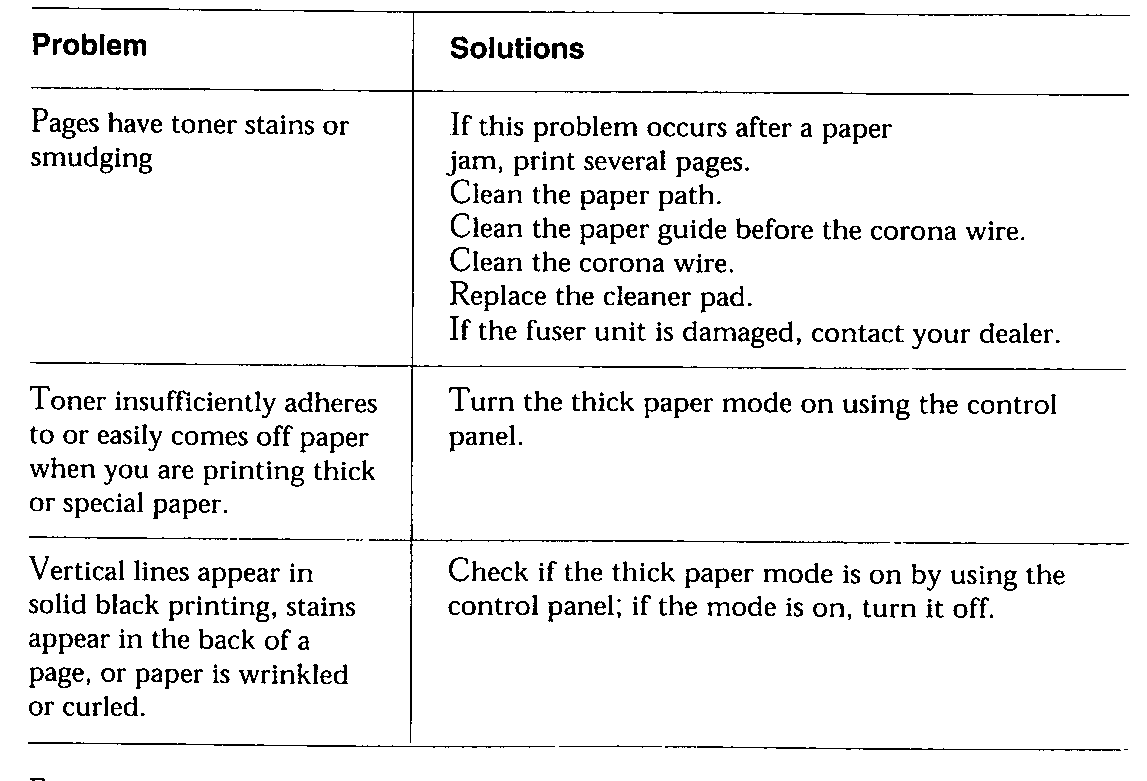

10.6 Troubleshooting

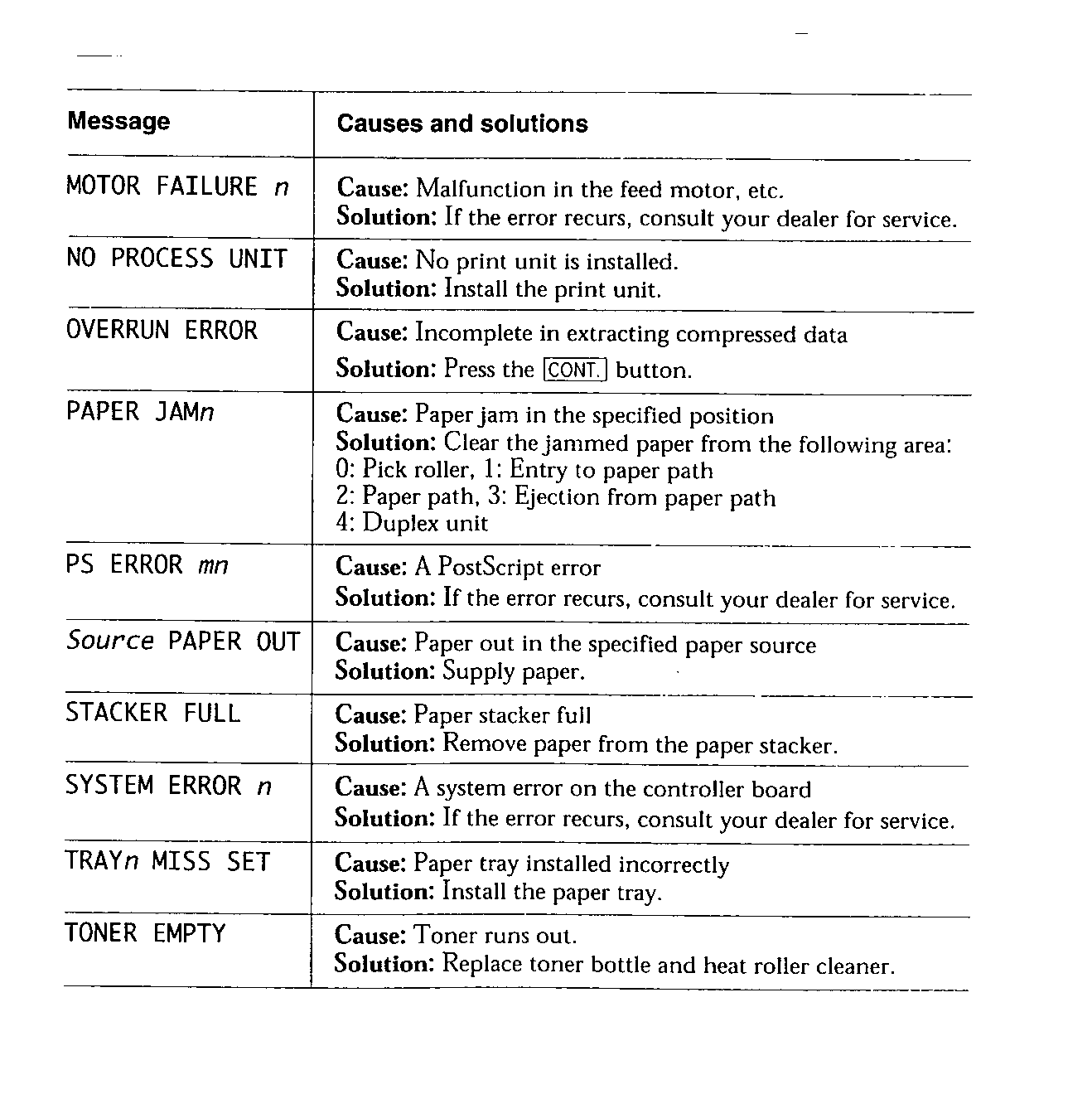

10.7 Messages
10.8 Printer Status
