SPECIALIX JETSTREAM 8500 NETWORK ACCESS SERVER.
EDP introduce the Specialix Jetstream
8500, Network Access Server, as a replacement for MTS/MTA, Jetstream 6000 and 7000 series
devices. The single size box houses 8, 16 or 24 RJ45 ports on the front; whilst at the
rear the mains input and the administrators, together with the input AU1 and 10 BaseT port

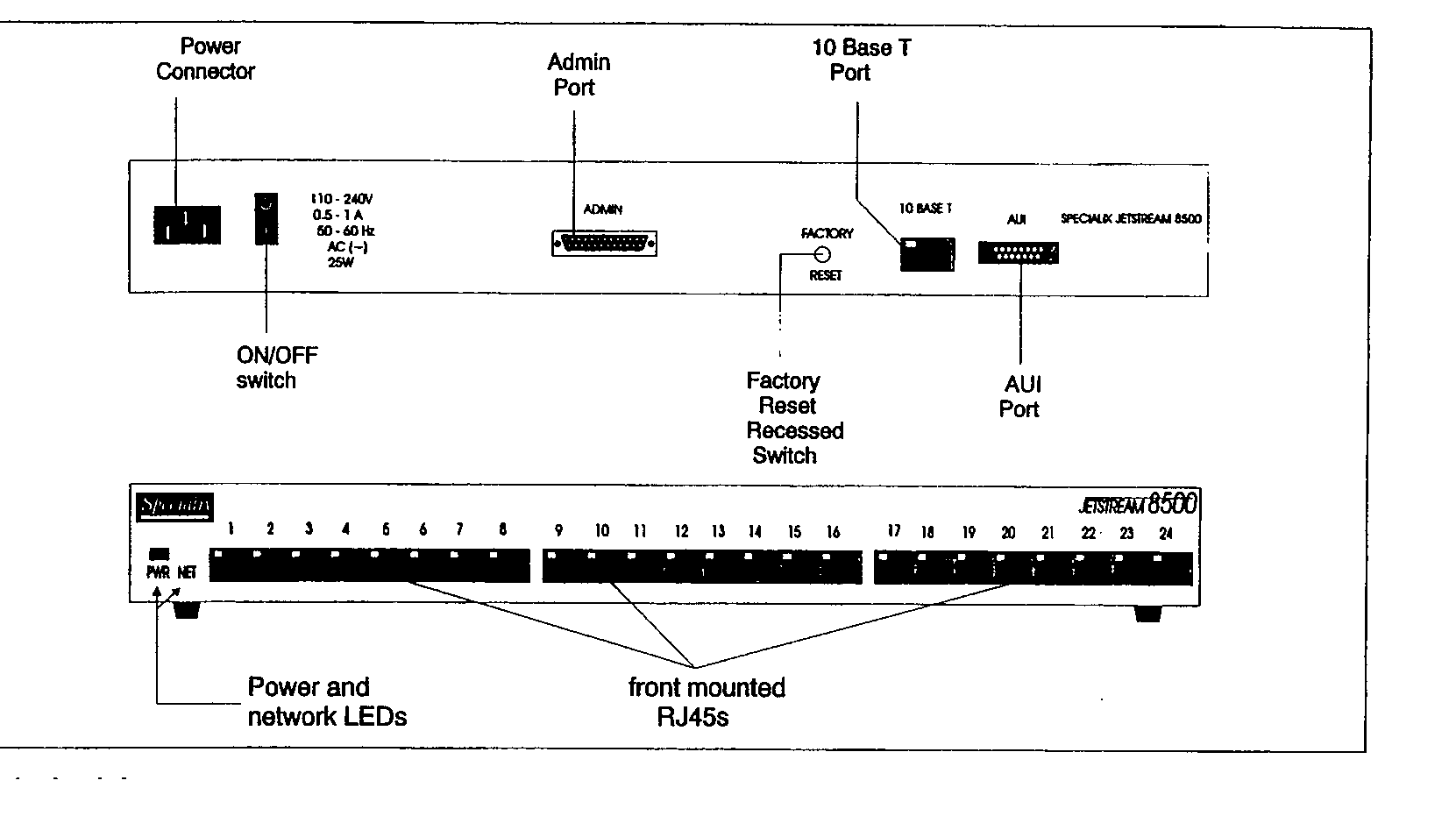

are located.See diagram below.
2. SPECIFICATION
Size: Width, 430mm Height, 44mm (in) Depth 230mm.
Can be mounted in standard 19 inch rack.
Weight: – max 1.9kg
Power: consumption max 25 watts.
8, 16, 24 ports non upgradeable, with port speeds of up to 230kbs
RJ45 connections allow direct connection to CAT5 cabling.
Interface Cable, Cable Type GR, has 25pin D
Type connector and allows connection to existing standard
EDP cabling as well as for new installations.
(See Paragraph 3).
There is no parallel port at all.
The revision level should be 2.07 or higher
Easily set-up using unique supervisor port.
Standard EDP Protocol is TCP/IP.
Connection to host via thin net requires a 10 Base 2 to AUI transceiver
Direct connection to host using AUI or 10 BaseT.
3. INTERFACE CABLE
EDP Cable Type GR. This MUST be foil screened twisted pair cable (FTP)
Specialix Jetstream 8500 to Psdeudo RTC connector
Network Terminal Adapter
8500 RTC connector
8pin 25pin
RJ45 Dtype
Male Female
Side connector_Shield_
1---------------------------------------------8
2---------------------------------------------6
3--------------------------------------------20
4---------------------------------------------7
5---------------------------------------------3
6---------------------------------------------2
7---------------------------------------------5
8---------------------------------------------4
Length 2ft.
4. MEC IDENTITY
SPECIALIX-JETSTREAM-8500 (8) 8 port
SPECIALIX-JETSTREAM-8500 (16) 16 port
SPECIALIX-JETSTREAM-8500 (24) 24 port
5. EDP STANDARD SET-UP
5.1 Set VDU to VT100 emulation, 9600, 8, 1, N, DC1/DC3; and connect to the ADMIN port on the rear.
5.2 Power on the Jetstream
5.3 The Login: prompt should be displayed
5.4 Enter admin <CR>
At password prompt just enter <CR>
JS_8500# or similar should be displayed.
5.5 Enter screen <CR> to display main menu
5.6 NOTE: To move through menus do not use the arrow keys as these may cause problems but use –
CTRL-J for down
CTRL-K for up
CTRL-L for right
CTRL-H for left instead
5.7 FROM MAIN MENU SELECT SERVER CONFIGURATION AND SET AS FOLLOW:-
Parameter Sample setting
server name mts1 mts2 etc
internet address 192.0.0.2.
broadcast address 192.255.255.255
subnet mask 255.255.255.0
domain name blank
ip-host blank or i/p address
authorisation both
gui access off
banner off
When set press <CR>
prompt accept and exit from press <CR>
5.8 DO NOT SET PASSWORD
5.9 SET DATE/TIME
From main menu select hardware
Set date and time
When set press <CR>
Prompt accept and exit form <CR>
5.10 SET LINE CONFIGURATON
From main menu select line configuration
Select line settings <CR>
Displayed are the available lines, i.e. for 16 port line numbers 1-16 are displayed
Select the line number required
See the following paragraphs for setting up a VDU or printer
5.11 FOR VDU SET UP
The following require to be set up:-
Service dir tel
speed 9600 terminal dumb
flow soft pages 4
bits 8 user
parity none hostname xyz
stop 1 host port 2xxx
JS port 2 xxx
dial none modem name
phone number
idle timer 0 session timer
5.12 FOR PRINTER ON UNIX SVR4 AND UNIVISION
The printer on Unix SVR4 and Univision
The following require to be set up:-
Service printer
speed 9600 terminal dumb
flow soft pages 4
bits 8 user
parity none hostname xyz
stop 1 host port 2xxx
JS port 2 xxx
dial none modem name
phone number
idle timer 0 session timer
5.13 FOR PRINTER ON SCO UNIX
The following require to be set up:-
Service rev raw
speed 9600 terminal dumb
flow soft pages 4
bits 8 user
parity none hostname xyz
stop 1 host port 2xxx
JS port 2 xxx
dial none modem name
phone number
idle timer 0 session timer
5.14 AFTER LINE CHARACTERISTICS ARE SET THEN EXIT,
Select command line mode
Select exit and save changes
Display of saving to flash ROM. This may take several seconds, please wait.
When complete prompt is JS_8500#
to reboot, enter reb <CR>
prompt confirm reboot jetstream y/n enter y
The Jetstream will reboot and run diagnostic routine displaying results before returning to the log in prompt.
6. REPAIR
Repair is by replacement.
7.NOTE Only shielded cables should be used for connection to Jetstream ports.
