FECO 7000 # 15
|
FECO: | 7000 # 15 |
| MODIFICATION No: | N/A | |
| PRODUCT: | 6000/7000 | |
| SUB-ASSEMBLY | FUJITSU 1.08GB DISK | |
| ESTIMATED MAN HOURS | N/A | |
| CLASS OF CHANGE: | INFORMATIONAL | |
| REASON FOR CHANGE: | TO RELEASE THE FUJITSU M1606SAU 1.08GB SINGLE ENDED SCSI DISK DRIVE |
1. Change
This disk is additional to the range. It is a low cost 3 1/2"
technology single ended SCSI
drive to be fitted in Mentor 6000 and 7000 systems. The Disk is 1 inch
high.
2. Installation
2.1. Drive installation will require an adaptor bracket to enable drive to be secured
in the 5
1/4" bays. Fit drive to bracket before installing in the
system.
2.2. This disk has a ccb requirement of 1.091GB, so the ccb installation tape must have
a
setting of 1.205gb.
3. Jumpers

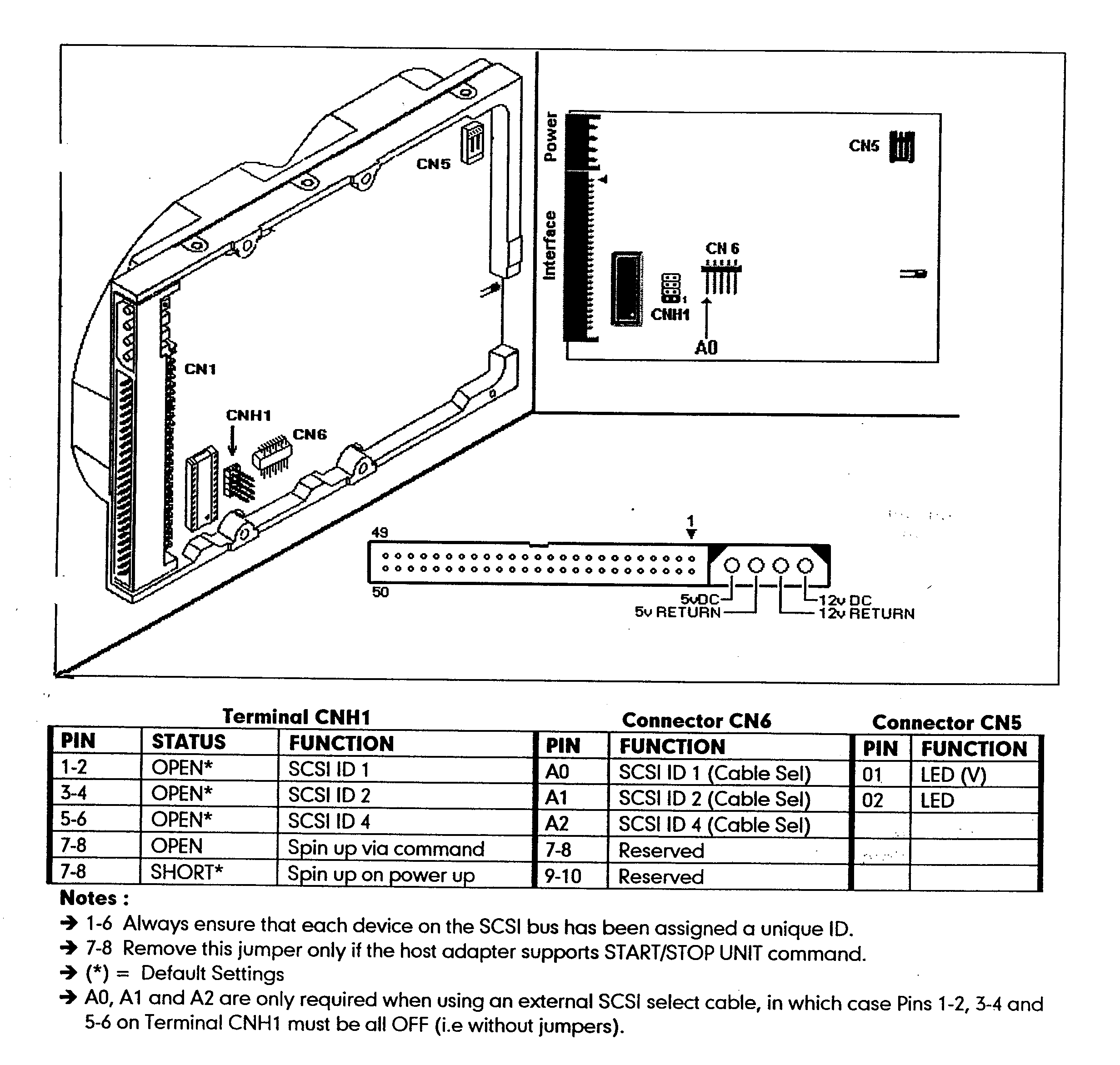

3.1. Refer to diagram for jumper locations
SCSI address. Terminal l CNHI.
0 1 2 3 4 5 6 7
5.6 o o o o s s s s
3.4 o o s s o o s s
1.2 o s o s o s o s
The terminating resistor must be fitted if this is the last drive,
otherwise it must be
removed.
7-8 spindle motor control - auto- short
O=open s=short
(tech serv ref: 26/5/2)
4. Mec description
Mx-fujitsu-m1606sau(1.08GB)
5. Testing
Normal testing using ur format program.
6. Recording action
No specific recording action.
