Dell™ PowerEdge™ 1850 Systems Installation and Troubleshooting Guide
Front-Panel Indicators and Features
Back-Panel Features and Indicators
SCSI Hard-Drive Indicator Codes
Baseboard Management Controller Messages
The system, applications, and operating systems can identify problems and alert you to them. Any of the following can indicate when the system is not operating properly:
This section describes each type of message, lists the possible causes, and provides steps to resolve any problems indicated by a message. The system indicators and features are illustrated in this section.
The system front panel incorporates blue and amber system status indicators. The blue indicator lights up when the system is operating correctly. The amber indicator lights up when the system needs attention due to a problem with power supplies, fans, system temperature, or hard drives.
Table 2-1 lists the system's indicator patterns. Different patterns are displayed as events occur in the system.
Table 2-1. System Status Indicator Patterns
Figure 2-1 shows the controls, indicators, and connectors located behind the optional bezel on the system's front panel. Table 2-2 describes the front-panel features and indicators.

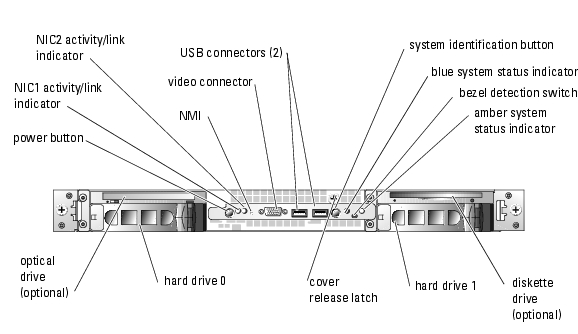

Figure 2-1. Front-Panel Features and Indicators
Table 2-2. Front-Panel LED Indicators, Buttons, and Connectors
Figure 2-2 shows the controls, indicators, and connectors located on the system's back panel.
|
NOTE: Connect the power cable to connector PS1 if your system only has one power supply. See Figure 2-2. |

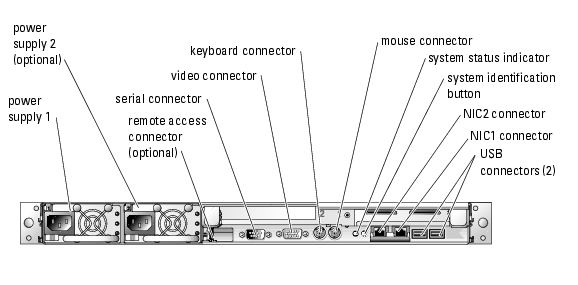

Figure 2-2. Back-Panel Features and Indicators
|
|
NOTE: To disconnect a network cable from the NIC, press the release latch located above the connector. See Figure 2-3. To facilitate installation of network cables with hooded connectors, use the RJ-45 extension cable provided with your system. |

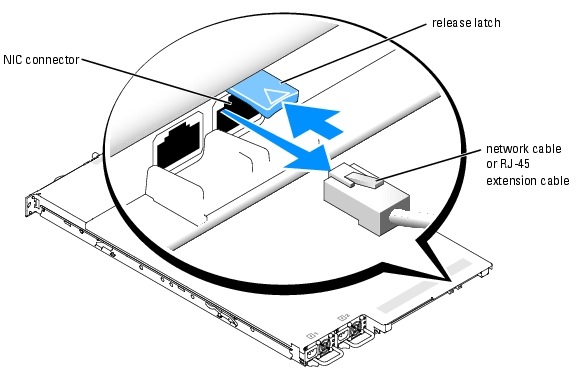

Figure 2-3. NIC Connector Release Latch
If RAID is activated, two indicators on each of the hard-drive carriers provide information on the status of the SCSI hard drives. RAID can be enabled either by using ROMB on the optional riser card (when available) or by using a RAID expansion card connected to the backplane. See Figure 2-4 and Table 2-3. The SCSI backplane firmware controls the drive power-on/fault indicator.

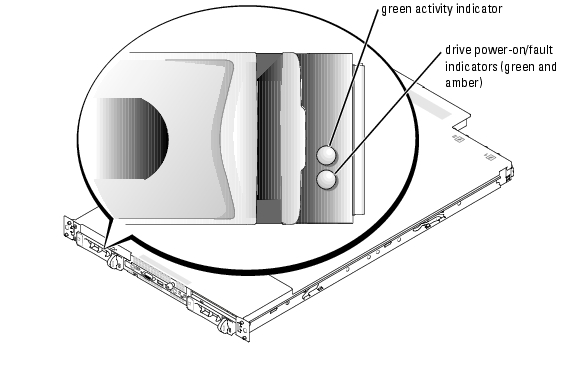

Figure 2-4. SCSI Hard-Drive Indicators
Table 2-3 lists the drive indicator patterns. Different patterns are displayed as drive events occur in the system. For example, if a hard-drive fails, the "drive failed" pattern appears. After the drive is selected for removal, the "drive being prepared for removal" pattern appears, followed by the "drive ready for insertion or removal" pattern. After the replacement drive is installed, the "drive being prepared for operation" pattern appears, followed by the "drive online" pattern.
|
|
NOTE: If a RAID controller is not installed, only the "drive online" indicator pattern appears. The drive-activity indicator also blinks when the drive is being accessed. |
Table 2-3. Hard-Drive Indicator Patterns
|
Condition |
Indicator Pattern |
|---|---|
Identify drive | The green power-on/fault indicator blinks four times per second. |
Drive being prepared for removal | The green power-on/fault indicator blinks two times per second. |
Drive ready for insertion or removal | Both drive indicators are off. |
Drive being prepared for operation | The green power-on/fault indicator is on. |
Drive predicted failure | The power-on/fault indicator slowly blinks green, amber, and off. |
Drive failed | The amber power-on/fault indicator blinks four times per second. |
Drive rebuilding | The green power-on/fault indicator blinks slowly. |
Drive online | The green power-on/fault indicator is on. |
The power button on the front panel controls the power input to the system's power supplies. The power indicator can provide information on power status (see Figure 2-1). Table 2-4 lists the power button indicator codes.
Table 2-4. Power Button Indicators
|
Indicator |
Function |
|---|---|
On | Indicates that power is supplied to the system and the system is operational. |
Off | Indicates that no power is supplied to the system. |
Blinking | Indicates that power is supplied to the system, but the system is in a standby state. For information on standby states, see your operating system documentation. |
The indicators on the optional redundant power supplies show whether power is present or whether a power fault has occurred (see Figure 2-5 and Table 2-5).
Figure 2-5. Redundant Power Supply Indicators
Table 2-5. Redundant Power Supply Indicators
|
Indicator |
Function |
|---|---|
Power supply status | Green indicates that the power supply is operational. |
Power supply fault | Amber indicates a problem with the power supply. |
AC line status | Green indicates that a valid AC source is connected to the power supply. |
Figure 2-6 and Table 2-6 describe the indicators on the NIC.
|
Link indicator |
Activity indicator |
Description |
|---|---|---|
Off | Off | The NIC is not connected to the network or the NIC is disabled in the System Setup screen. See "Using the System Setup Program" in the User's Guide. |
Green | Off | Indicates that the network adapter is connected to a valid link partner on the network, but data is not currently being sent or received. |
Green | Blinking amber | Indicates that network data is being sent or received. |
System messages appear on the screen during system boot to notify you of a possible problem with the system. Table 2-7 lists the system messages that can occur and the probable cause and corrective action for each message.
|
|
NOTE: If you receive a system message that is not listed in Table 2-7, check the documentation for the application that is running when the message appears or the operating system's documentation for an explanation of the message and recommended action. |
|
Message |
Causes |
Corrective Actions |
|---|---|---|
|
Alert! Redundant memory disabled! Memory configuration does not support redundant memory. | The current memory configuration does not support redundant memory. | Install a memory configuration that supports redundant memory (spare bank feature). See "General Memory Module Installation Guidelines" in "Installing System Components." Disable the Redundant Memory option in the System Setup program. See "Using the System Setup Program" in your User's Guide. |
|
Amount of available memory limited to 245MB! | OS Install Mode is enabled in the System Setup program. | Disable OS Install Mode in the System Setup program. See "Using the System Setup Program" in your User's Guide. |
|
Attempting to update Remote Configuration. Please wait.... | Remote Configuration is in progress | Wait until the process is complete. |
|
BIOS Update Attempt Failed | BIOS remote update failed | Retry update |
|
Caution! NVRAM_CLR jumper is installed on system board. | NVRAM_CLR jumper is installed. | Remove the NVRAM_CLR jumper. See Figure A-2 for the jumper location. |
|
CD-ROM drive not found | Improperly connected or missing CD drive. | If no optical drive is installed, disable the IDE controller. See "Using the System Setup Program" in the User's Guide. If an optical drive is installed, see "Troubleshooting an Optical Drive" in "Troubleshooting Your System." |
|
CPUs with different cache sizes detected. | Mismatched processors are installed. | Install a correct version of the microprocessor so that both microprocessors have the same cache size. See "Replacing the Processor" in "Installing System Components." |
|
Decreasing available memory | Faulty or improperly installed memory modules. | Ensure that all memory modules are properly installed. See "Troubleshooting System Memory," in "Troubleshooting Your System." |
|
Diskette drive 0 seek failure | Incorrect configuration settings in System Setup program. | Run the System Setup program to correct the settings. See "Using the System Setup Program" in your User's Guide. |
Faulty or improperly installed diskette, loose diskette drive or optical drive interface cable, or loose power cable. | Replace the diskette. Ensure that the diskette drive and optical drive cables are properly connected. See "Troubleshooting a Diskette Drive," and "Troubleshooting an Optical Drive," in "Troubleshooting Your System." | |
|
Diskette read failure | Faulty or improperly inserted diskette. | Replace the diskette. |
|
Diskette subsystem reset failed | Faulty diskette drive or optical drive controller. | Ensure that the diskette drive and optical drive cables are properly connected. See "Troubleshooting a Diskette Drive," "Troubleshooting an Optical Drive," in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Drive not ready | Diskette missing or improperly inserted in diskette drive. | Reinsert or replace the diskette. |
|
Embedded RAID error | An error has been generated by the firmware used by the optional integrated RAID controller (when available) | Update the RAID firmware using the Dell Support website at support.dell.com. |
|
Embedded RAID firmware is not present | The firmware used by the optional integrated RAID controller (when available) is not responding to system requests. | Restore the RAID firmware using the Dell Support website at support.dell.com. |
|
Error: Incorrect memory configuration. Ensure memory in slots DIMM1_A and DIMM1_B, DIMM2_A and DIMM2_B, DIMM3_A and DIMM3_B match identically in size, speed, and rank. | One or more unmatched pairs of memory modules are detected | Ensure that the memory modules are installed in matched pairs. See "General Memory Module Installation Guidelines" in "Installing System Components." |
|
Error: Incorrect memory configuration. Memory slots DIMM3_A and DIMM3_B only support single rank DIMMs. Remove the dual rank DIMMs from slots DIMM3_A and DIMM3_B. | Dual rank memory modules are installed in slots DIMM3_A and DIMM3_B. | Ensure that only single rank memory modules are installed in slots DIM3_A and DIMM3_B. See "General Memory Module Installation Guidelines" in "Installing System Components." |
|
Error: Incorrect memory configuration. Move DIMM3_A and DIMM3_B into DIMM2_A and DIMM2_B. | Memory modules are not installed in consecutive banks. | Move memory modules from slots DIMM3_A and DIMM3_B into DIMM2_A and DIMM2_B. See "General Memory Module Installation Guidelines" in "Installing System Components." |
|
Error: Incorrect memory configuration. Swap the DIMMs in slots DIMM1_A and DIMM1_B with DIMMs in slots DIMM2_A and DIMM2_B. | If dual-rank memory modules are installed in the system, they must be installed in slots DIMM1_A and DIMM1_B. | Swap memory modules in slots DIMM2_A and DIMM2_B with modules in DIMM1_A and DIMM1_B. See "General Memory Module Installation Guidelines" in "Installing System Components." |
|
Error: Incorrect memory configuration. Memory slots DIMM3_A and DIMM3_B must be empty if dual rank memory DIMMS are in slots DIMM2_A and DIMM2_B. | Memory modules are installed in bank3. Dual rank memory modules are installed in banks 1 and 2. | Remove memory modules from slots DIMM3_A and DIMM3_B. See "General Memory Module Installation Guidelines" in "Installing System Components."
|
|
Error: More than one RAC detected, system halted. | Two RACs are installed, or faulty or improperly installed RAC. | Ensure that only one RAC is installed. Ensure that the RAC is properly installed. See "Troubleshooting Expansion Cards" in "Troubleshooting Your System," or "Installing a RAC Card" in "Installing System Options." |
|
Error: Remote Access Card initialization failure. | Faulty or improperly installed RAC. | Ensure that the RAC is properly installed. See "Troubleshooting Expansion Cards" in "Troubleshooting Your System," or "Installing a RAC Card" in "Installing System Options." |
|
Error 8602: Auxiliary device failure. Verify that the keyboard and mouse are securely attached to correct connectors. | Loose or improperly connected mouse or keyboard cable; faulty mouse or keyboard. | Replace the mouse. If the problem persists, replace the keyboard. |
|
Gate A20 failure | Faulty keyboard controller (faulty system board). | See "Getting Help." |
|
General failure | Operating system corrupted or improperly installed. | Reinstall the operating system. |
|
Keyboard controller failure | Faulty keyboard controller (faulty system board). | See "Getting Help" |
|
Keyboard data line failure Keyboard failure Keyboard stuck key failure | Loose or improperly connected keyboard cable; faulty keyboard; faulty keyboard controller. | Ensure that the keyboard is properly connected. If the problem persists, replace the keyboard. If the problem persists, see "Getting Help."
|
|
Keyboard fuse has failed. | Keyboard fuse has failed. | Replace the keyboard. Faulty system board. See "Getting Help." |
|
Manufacturing mode detected | System is incorrectly configured. | After the message appears during system boot, press <Alt><F> to turn off manufacturing mode. |
|
Memory address line failure at address, read value expecting value Memory double word logic failure at address, read value expecting value Memory odd/even logic failure at start address to end address Memory write/read failure at address, read value expecting value | Faulty or improperly installed memory modules, or faulty system board. | Ensure that all memory modules are properly installed. See "Troubleshooting System Memory" in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Memory mirroring enabled | Memory mirroring enabled | You can enable memory mirroring using the System Setup program if the memory is configured to support mirroring. For more information, see "General Memory Module Installation Guidelines" in "Installing System Components," and Using the System Setup Program" in your User's Guide. |
|
Memory tests terminated by keystroke | The spacebar was pressed during POST to terminate the memory test. | Information only. |
|
No boot device available | Faulty or missing diskette drive, optical drive, or hard drive.
| Check the Integrated Devices configuration settings in the System Setup program. See "Using the System Setup Program" in your User's Guide. Ensure that either SCSI Controller, Diskette Controller, or IDE CD-ROM Controller is enabled. If the system is booting from a SCSI controller, ensure that the controller is properly connected. If the problem persists, replace the drive. See "Installing Drives." |
|
No boot sector on hard-disk drive | An operating system is not on the hard drive. | Check the hard drive configuration settings in the System Setup program. See "Using the System Setup Program" in your User's Guide. |
|
No timer tick interrupt | Faulty system board. | See "Getting Help." |
|
Not a boot diskette | Not a bootable diskette. | Use a bootable diskette. |
|
PCI BIOS failed to install | Loose cables to expansion card(s); faulty or improperly installed expansion card. | Ensure that all appropriate cables are securely connected to the expansion cards. See "Troubleshooting Expansion Cards," in "Troubleshooting Your System." |
|
Plug & Play Configuration Error | Error encountered in initializing PCI device; faulty system board. | Install the NVRAM_CLR jumper and reboot the system. See Figure A-2 for jumper location. Check for a BIOS update. If the problem persists, see "Troubleshooting Expansion Cards," in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Read fault Requested sector not found | Faulty diskette, diskette drive, optical drive, or hard drive. | Replace the diskette. Ensure that the diskette, optical, and hard drive cables are properly connected. See "Troubleshooting a Diskette Drive," "Troubleshooting an Optical Drive," or "Troubleshooting SCSI Hard Drives," in "Troubleshooting Your System" for the appropriate drive(s) installed in your system. |
|
Remote Configuration update attempt failed | System could not implement Remote Configuration request. | Retry Remote Configuration. |
|
ROM bad checksum = address | Faulty or improperly installed expansion card. | Remove and reseat the expansion cards. See "Troubleshooting Expansion Cards," in "Troubleshooting Your System." |
|
Sector not found Seek error Seek operation failed | Faulty diskette or hard drive. | Replace the diskette. If the problem persists, see "Troubleshooting SCSI Hard Drives," in "Troubleshooting Your System" for the appropriate drive installed in your system. |
|
Shutdown failure | Shutdown test failure. | Ensure that all memory modules are properly installed. See "Troubleshooting System Memory," in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Spare bank enabled | Memory spare bank enabled | You can enable memory spare bank using the System Setup program if the memory is configured to support this feature. For more information, see "General Memory Module Installation Guidelines" in "Installing System Components," and Using the System Setup Program" in your User's Guide. |
|
The amount of system memory has changed. | Faulty memory module. Information only, if you have changed the memory configuration. | See "Troubleshooting System Memory," in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Time-of-day clock stopped | Faulty battery; faulty system board. | See "Troubleshooting the System Battery" in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Time-of-day not set - please run SETUP program | Incorrect Time or Date settings; faulty system battery. | Check the Time and Date settings. See "Using the System Setup Program" in your User's Guide. If the problem persists, see "Troubleshooting the System Battery" in "Troubleshooting Your System." |
|
Timer chip counter 2 failed | Faulty system board. | See "Getting Help." |
|
Unsupported RAID key detected. | A RAID key intended for use with another system is installed. | Replace the RAID key. |
|
Unexpected interrupt in protected mode | Faulty or improperly installed memory modules or faulty system board. | Ensure that all memory modules are properly installed. See "General Memory Module Installation Guidelines" in "Installing System Components." If the problem persists, see "Troubleshooting System Memory" in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
|
Unsupported CPU combination | Mismatched processors are installed. Processor is not supported by the system. | Replace a microprocessor so that both microprocessors match. See "Replacing the Processor" in "Installing System Components." Check for a BIOS update using the Dell Support website at support.dell.com. If the problem persists, install a supported processor. See "Replacing the Processor" in "Installing System Components." |
|
Unsupported CPU stepping detected | Processor is not supported by the system. | Check for a BIOS update using the Dell Support website at support.dell.com. If the problem persists, install a supported processor. See "Replacing the Processor" in "Installing System Components." |
|
Utility partition not available | <F10> key was pressed during POST, but no utility partition exists on the boot hard drive. | Create a utility partition on the boot hard drive. See "Using the Dell OpenManage Server Assistant CD" in your User's Guide. |
|
Warning: Detected mode change from RAID to SCSI x of the embedded RAID subsystem. | Type of controller has changed from optional RAID (when available) to SCSI since previous system boot. | Back up information on the hard drives before changing the type of controller used with the drives. |
|
Warning: Detected mode change from SCSI to RAID x of the embedded RAID subsystem. | Type of controller has changed from SCSI to optional RAID (when available) since previous system boot. | Back up information on the hard drives before changing the type of controller used with the drives. |
|
Warning! No microcode update loaded for processor n | Unsupported processor. | Update the BIOS firmware using the Dell Support website at support.dell.com. |
|
Write fault Write fault on selected drive | Faulty diskette, diskette drive, optical drive, hard drive. | Replace the diskette. Ensure that the diskette drive, optical drive, and hard drive cables are properly connected. See "Troubleshooting a Diskette Drive," "Troubleshooting an Optical Drive," or "Troubleshooting SCSI Hard Drives" in "Troubleshooting Your System" for the appropriate drive(s) installed in your system. |
If an error that cannot be reported on the screen occurs during POST, the system may emit a series of beeps that identifies the problem.
|
|
NOTE: If the system boots without a keyboard, mouse, or monitor attached, the system does not issue beep codes related to those peripherals. |
If a beep code is emitted, write down the series of beeps and then look it up in Table 2-8. If you are unable to resolve the problem by looking up the meaning of the beep code, use system diagnostics to identify the possible cause. If you are still unable to resolve the problem, see "Getting Help."
|
Code |
Cause |
Corrective Action |
|---|---|---|
1-1-2 | CPU register test failure | See "Troubleshooting the Microprocessors" in "Troubleshooting Your System." |
1-1-3 | CMOS write/read failure; faulty system board | Faulty system board. See "Getting Help." |
1-1-4 | BIOS error | Reflash the BIOS. |
1-2-1 | Programmable interval-timer failure; faulty system board | Faulty system board. See "Getting Help." |
1-2-2 | DMA initialization failure | See "Troubleshooting System Memory" in "Troubleshooting Your System." |
1-2-3 | DMA page register write/read failure | |
1-3-1 | Main-memory refresh verification failure | |
1-3-2 | No memory installed | |
1-3-3 | Chip or data line failure in the first 64 KB of main memory | |
1-3-4 | Odd/even logic failure in the first 64 KB of main memory | |
1-4-1 | Address line failure in the first 64 KB of main memory | |
1-4-2 | Parity failure in the first 64 KB of main memory | |
1-4-3 | Fail-safe timer test failure | |
1-4-4 | Software NMI port test failure | |
2-1-1 through | Bit failure in the first 64 KB of main memory | |
3-1-1 | Slave DMA-register failure | Faulty system board. See "Getting Help." |
3-1-2 | Master DMA-register failure | |
3-1-3 | Master interrupt-mask register failure | |
3-1-4 | Slave interrupt-mask register failure | |
3-2-2 | Interrupt vector loading failure | |
3-2-4 | Keyboard-controller test failure | |
3-3-1 | CMOS failure | |
3-3-2 | System configuration check failure | |
3-3-3 | Keyboard controller not detected | |
3-3-4 | Video memory test failure | |
3-4-1 | Screen initialization failure | |
3-4-2 | Screen-retrace test failure | |
3-4-3 | Video ROM search failure | |
4-2-1 | No timer tick | Faulty system board. See "Getting Help."
|
4-2-2 | Shutdown test failure | |
4-2-3 | Gate A20 failure | |
4-2-4 | Unexpected interrupt in protected mode | See "Troubleshooting Expansion Cards" in "Troubleshooting Your System." |
4-3-1 | Improperly installed or faulty memory modules | See "Troubleshooting System Memory" in "Troubleshooting Your System." |
4-3-2 | No memory modules installed in the first memory module connector | Install a memory module in the first memory module connector. See "System Memory" in "Installing System Components." |
4-3-3 | Faulty system board | Faulty system board. See "Getting Help." |
4-3-4 | Time-of-day clock stopped | See "Troubleshooting System Memory" in "Troubleshooting Your System." If the problem persists, see "Getting Help." |
4-4-1 | Super I/O chip failure; faulty system board | Faulty system board. See "Getting Help." |
4-4-4 | Cache test failure; faulty processor | See "Troubleshooting the Microprocessors" in "Troubleshooting Your System." |
A warning message alerts you to a possible problem and prompts you to respond before the system continues a task. For example, before you format a diskette, a message will warn you that you may lose all data on the diskette. Warning messages usually interrupt the task and require you to respond by typing y (yes) or n (no).
|
|
NOTE: Warning messages are generated by either the application or the operating system. For more information, see "Finding Software Solutions" and the documentation that accompanied the operating system or application. |
When you run system diagnostics, an error message may result. Diagnostic error messages are not covered in this section. Record the message on a copy of the Diagnostics Checklist in "Getting Help," and then follow the instructions in that section for obtaining technical assistance.
Systems management software generates alert messages for your system. Alert messages include information, status, warning, and failure messages for drive, temperature, fan, and power conditions. For more information, see the systems management software documentation.
The Baseboard Management Controller (BMC) enables you to configure, monitor, and recover systems remotely. BMC uses the system's serial port and integrated NIC1 to support fault logging and SNMP alerting.
|
|
NOTE: If the integrated network controller is used in an Ether Channel team or link aggregation team, the BMC management traffic will not function properly. For more information about network teaming, see the documentation for the network controller. |
For additional information on using BMC, see the documentation for the BMC and systems management applications.
